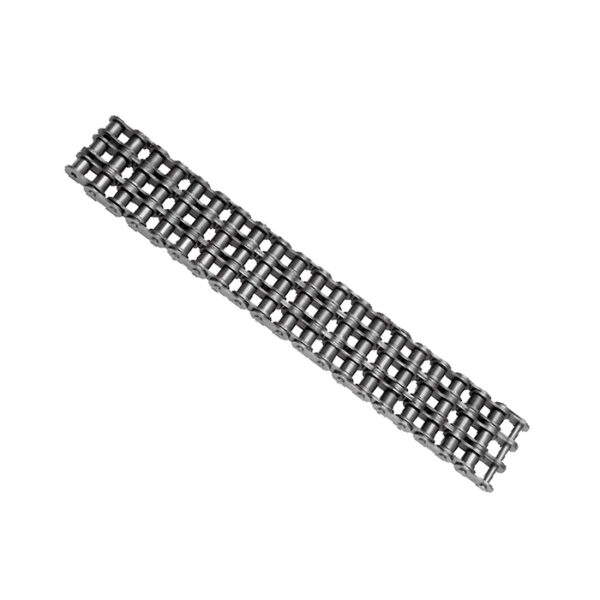

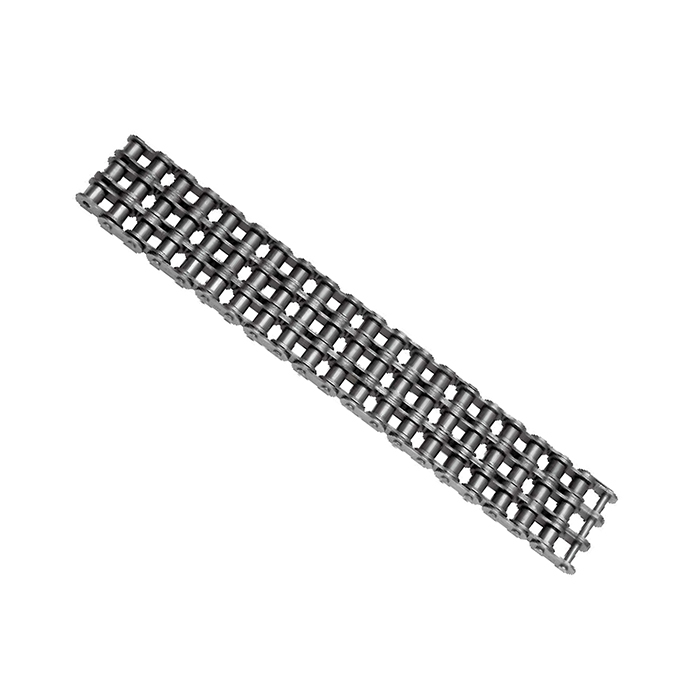

B series triple strand short pitch roller chains
Roller chain develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted tension. Therefore, they are using widely in industrial and general applications, motors, compressors, printing presses, conveyors, agriculture, etc.

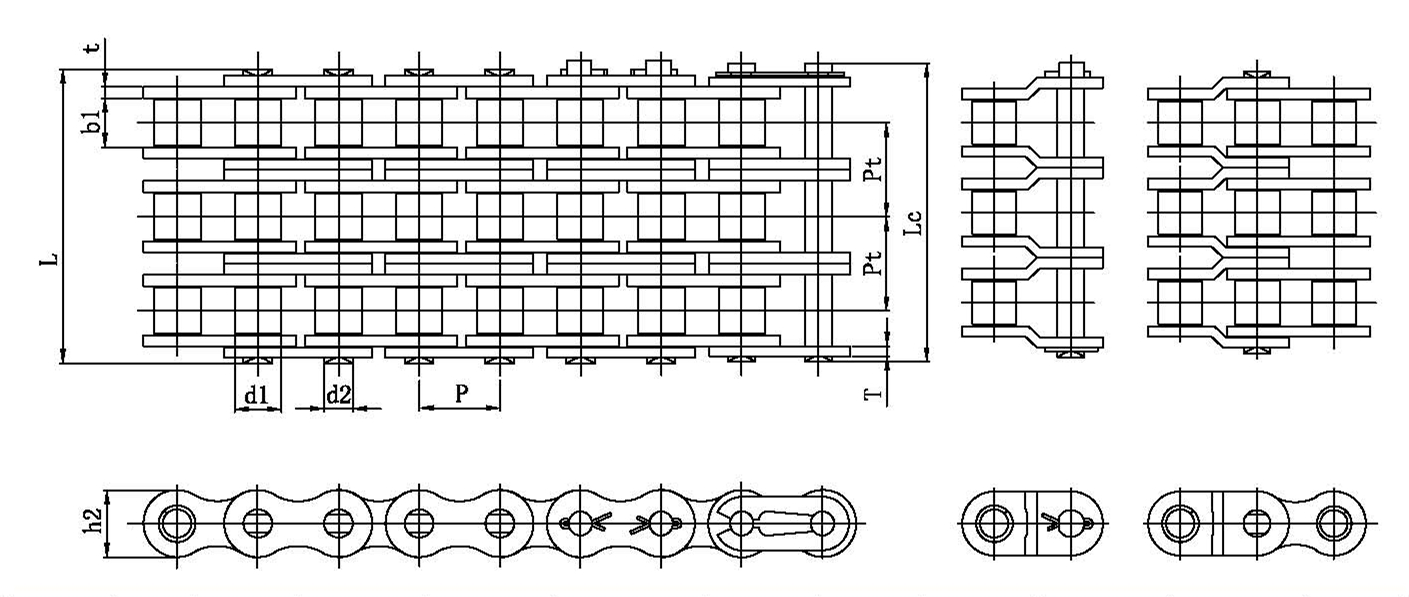

Dimensional parameters
DIN ISO CHAIN NO. | PITCH | ROLLER
DIA. |
WIDTH BETWEEN
INNER PLATES |
PIN/DIA. | PIN
LENGTH |
INNER CHAIN PLATE DEPTH | ROW SPACING | Transverse
pitch |
ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T | Pt | Q(ISO/DIN) min |
Q0 | q | |
mm | mm | mm | min | mm | mm | mm | mm | mm | KN | KN | Kg/m | |
*06B-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.50 | 37.30 | 8.26 | 1.34 | 10.24 | 24.90 | 29.80 | 1.16 |
088-3 | 12.70 | 8.51 | 7.75 | 4.45 | 44.90 | 47.20 | 11.81 | 1.60 | 13.92 | 44.50/47.50 | 50.20 | 2.03 |
108-3 | 15.875 | 10.16 | 9.65 | 5.00 | 52.70 | 55.60 | 14.73 | 1.70 | 16.59 | 66.7D | 79.80 | 2.77 |
12B-3 | 19.05 | 12.07 | 11,68 | 5.72 | 61.50 | 65.20 | 16.13 | 1.85 | 19.46 | 86.70 | 101.80 | 3.46 |
16B-3 | 25.40 | 15.88 | 17.02 | 8.28 | 99.80 | 105.30 | 21.08 | 4.09/3.10 | 31.88 | 180.00 | 190.00 | 8.13 |
20B-3 | 31.75 | 19.05 | 19.58 | 10.19 | 114.55 | 121.20 | 26.42 | 4.80/3.80 | 36.45 | 250.00 | 278.20 | 10.82 |
24B-3 | 38.10 | 25.40 | 25.40 | 14.63 | 150.20 | 153.82 | 33.40 | 5.80/4.80 | 48.36 | 425.00 | 480.00 | 20.10 |
28B-3 | 44.45 | 27.94 | 30.99 | 15.90 | 184.30 | 188.52 | 37.08 | 7.50/6.50 | 59.56 | 530,00 | 580.00 | 24.92 |
32B-3 | 50.80 | 29.21 | 30.99 | 17,81 | 184.01 | 186.60 | 42.29 | 7.00/6.00 | 58.55 | 670.00 | 720.20 | 31.56 |
40B3 | 63.50 | 39.37 | 38.10 | 22.89 | 226.80 | 236.10 | 52.96 | 8.50/7.50 | 72.29 | 950.00 | 1020.00 | 48.10 |
48B-3 | 78.20 | 48.26 | 45.72 | 29.24 | 281.60 | 292.10 | 83.88 | 11,70/10.00 | 91.21 | 1500.00 | 1590.00 | 75.00 |
56B-3 | 88.90 | 53.98 | 53.34 | 34.32 | 327.8 | 336.20 | 77.80 | 13.5/12,00 | 106.6 | 2240.00 | 2240.00 | 107.18 |
64B-3 | 101,60 | 63.50 | 60.96 | 39.40 | 369.8 | 378.30 | 90.17 | 15.0/13.00 | 119.89 | 3000.00 | 3300.00 | 136.00 |
72B-3 | 114,30 | 72.30 | 68.58 | 44.48 | 420.0 | 428.00 | 103,60 | 17.0/15.00 | 136.27 | 3750.00 | 4125.00 | 180.00 |
