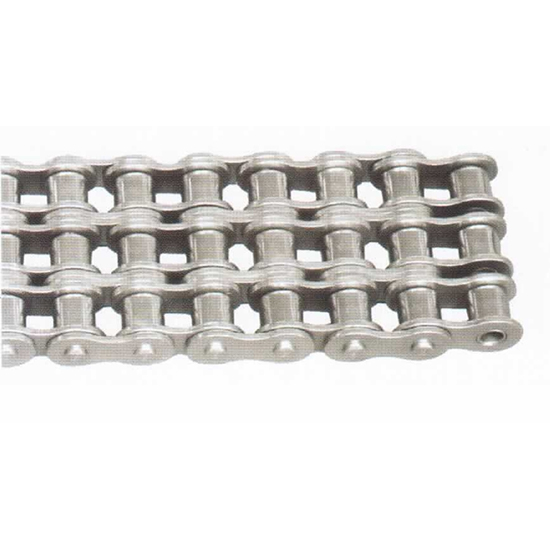

B series triple strand stainless steel short pitch precision roller chains
Short-pitch precision roller chains stand out for their superior engineering, exceptional tensile strength, and robustness. Their compact pitch size, adherence to international standards, and ability to perform reliably under heavy loads make them indispensable in automotive, manufacturing, and automation applications. By choosing short-pitch precision roller chains, industries can achieve the precise power transfer and dependable performance required for smooth and efficient operations.

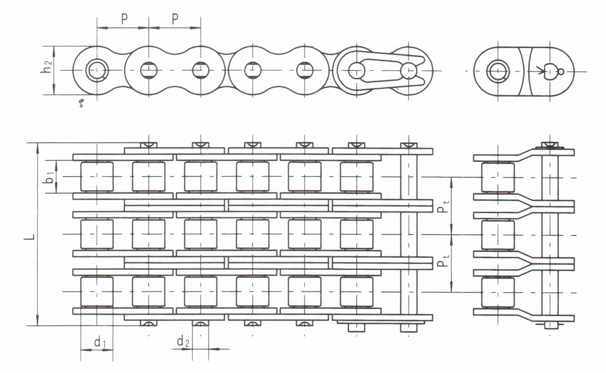

Diameter Data
Pitch | Roller diameter | Width between inner plates | Pin | Inner
plate depth |
Transv-
erse pitch |
Ultimate tensile strength | Average tensile strength | Weight
Per meter |
||
Chain | dia | length | ||||||||
No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Pt
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
05BSS-3 | 8 | 5 | 3 | 2.31 | 19.2 | 7 | 5.64 | 8.9 | 11.2 | 0.48 |
*06BSS-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.5 | 8.2 | 10.24 | 12.2 | 15.2 | 1.12 |
08BSS-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45 | 11.8 | 13.92 | 31 | 32.8 | 2.13 |
10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 14.6 | 16.59 | 37.8 | 43.6 | 2.78 |
12BSS-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 16 | 19.46 | 52 | 61 | 3.75 |
16BSS-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.7 | 21 | 31.88 | 108 | 124.2 | 8.32 |
20BSS-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.3 | 26 | 36.45 | 151.2 | 173.6 | 10.89 |
24BSS-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.4 | 33.4 | 48.36 | 255 | 285.4 | 20.1 |
*straight side plates
