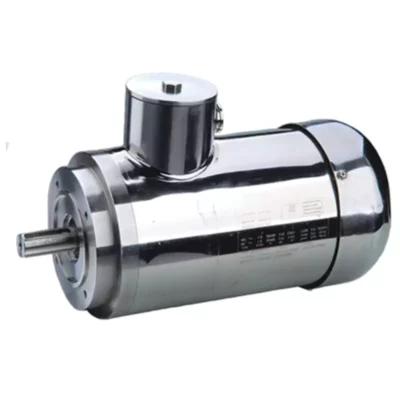

B14 Face Mounted Stainless Steel Motor TEFC
To ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.
Since its establishment, Power-trans has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. To achieve CIP, a comprehensive range of products can be used with corrosive and effective cleaners, disinfectants, and high-pressure cleaners.
B14 Face Mounted Stainless Steel Motor TEFC
To ensure reliable consumer protection(Face Mounted Motor), the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.
Since its establishment, Power-trans has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. A comprehensive range of products can be used with corrosive and effective cleaners, disinfectants, and high-pressure cleaners to achieve CIP.
Power-trans’s high-quality and efficient stainless steel motor has ip69k grade, which can be completely waterproof, dustproof, and oilproof. Other features include 1/3 to 20 horsepower ratings, circular welded junction boxes with epoxy encapsulated conductors, 304 stainless steel frames, end brackets, junction boxes, and hardware. These continuous working, high-efficiency motors are ideal for use in food and chemical processing plants, pharmaceutical applications, and other environments that require corrosion-resistant, waterproof motors.

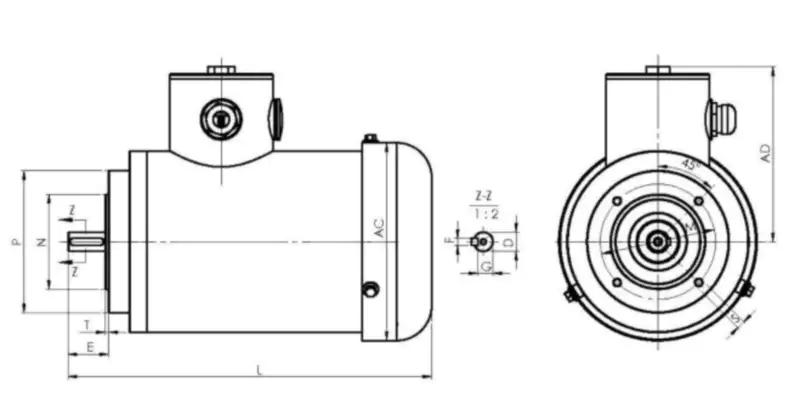

| Frame Type | Flange type | Poles | D | E | F | G | M | N | P | R | S | T | Flange hole | shaft hole | AC | AD |
| 71 | FT85 | 2, 4, 6 | 14 | 30 | 5 | 11 | 85 | 70 | 105 | 0 | M6 | 2.5 | 4 | M5 | 134 | 129 |
| 80 | FT100 | 2, 4, 6 | 19 | 40 | 6 | 15.5 | 100 | 80 | 120 | 0 | M6 | 3 | 4 | M6 | 144 | 135 |
| 90 | FT115 | 2, 4, 6 | 24 | 50 | 8 | 20 | 115 | 95 | 140 | 0 | M8 | 3 | 4 | M8 | 176 | 147 |
| 100 | FT130 | 2, 4, 6 | 28 | 60 | 8 | 24 | 130 | 110 | 160 | 0 | M8 | 3.5 | 4 | M10 | 203 | 169 |
| 112 | FT130 | 2, 4, 6 | 28 | 60 | 8 | 24 | 130 | 110 | 160 | 0 | M8 | 3.5 | 4 | M10 | 218 | 174 |
| 132 | FT165 | 2, 4, 6 | 38 | 80 | 10 | 33 | 165 | 130 | 200 | 0 | M10 | 3.5 | 4 | M12 | 256 | 192 |
Feature of Our Stainless Steel Motor
- Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm
- Stainless steel servo reduction motor with planetary gear or bevel gear
- The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell
- Surface and flange installation (imb5, IMB14)
- Protection grade up to ip66k / ip69k under flushing conditions
- Large speed regulation range
- Ul/CSA certification
- Feedback using a resolver or preface, EnDat, or drive clip encoder
- Single cable technology (OCT)
- Braking options
- AC servo motor, DC servo motor, and AC asynchronous motor
- Decentralized servo motor with integrated servo controller
- Delivered with servo controller or frequency converter
- Custom design
Solve Cases of Stainless Steel Motor
A processing plant uses a standard AC aluminum motor on its industrial hair puller production line. Still, there are problems with their standard engine in the process of use: in addition to health problems, the service life of the standard motor is only 6/8 weeks, and if it exceeds 6/8 weeks, it needs to be disassembled and replaced with a new motor.
Power-trans electric company provides them with stainless steel sanitary motors and special seals for customers. Now the stainless steel motor has been running continuously for 12 months. Since the installation, the processing plant has saved a lot of costs, labor time, downtime, and the cost of replacing new aluminum motors every 6/8 weeks. The processing plant saves tens of thousands of yuan by replacing only one motor… Imagine how much money all 24 motors installed on this production line will save. When you encounter similar problems, please email us. We are also glad to find a cost-effective motor solution for you.
Related Stainless Steel Motor
 |
 |
 |
 |
| Stainless steel permanent magnet motor | Water-cooled stainless steel motor | Food industry electric motor | Stainless steel motor |
 |
 |
 |
 |
| IEC emulsified food machinery AC motor | NEMA 56C asynchronous motor | IEC stainless steel AC motor | IEC all stainless steel high-efficiency motor |
 |
 |
 |
|
| Chicken and duck depilation equipment motor | NEMA food-grade stainless steel motor | Food-grade IEC stainless steel motor |
