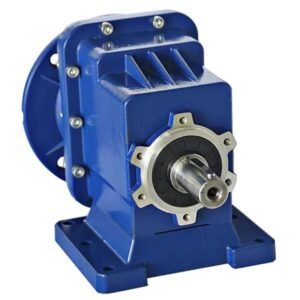

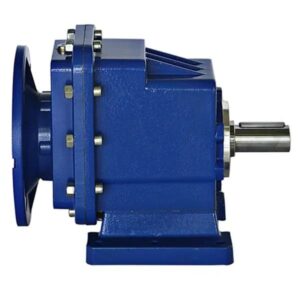

RC Series B14 Flange Mounted Inline Helical Gearbox (Helical Gear Reducer)
The highly modular is a design feature of the RC series helical gearboxes range. It can be connected respectively with motors such as standard motors, brake motors, explosion-proof motors, frequency conversion motors, servo motors, IEC motors, and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics, plastics, and so on. It is possible to set up the version required using flanges or feet.
RC Series Helical Gearbox(Helical Gear Reducer) Specification
Housing
|
Aluminum Alloys
|
Gears
|
Hardened Helical Gears
|
Input Configurations
|
Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input
|
Applicable Motors
|
IEC-normalized Motors and Brake Motors
Explosion-proof Motors Inverter Motors Servo Motors |
Output Configurations
|
Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
|
Models
|
RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04 RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04 |
Input Speed
|
1400rpm
|
Input Power
|
0.12kw~4kw
|
Ratio
|
3.66~54
|
RC Series Helical Gearbox(Helical Gear Reducer) Features:
- Modular design, dismountable frame foot, optional different frame sizes and flanges
- Aluminum housing, compact structures, lightweight
- Carburizing and grinding hardened gears, sturdy and durable
- Multiple mounting positions
- Low noise
RC Series Helical Gearbox(Helical Gear Reducer) Parameter
Model No: RC37~RC187
Main Parameter:
Output speed: 0.1~560rpm
Output torque: up to 28000Nm
Motor power: 0.18~160kw
Input Model: directly connected with motor, flange input, or shaft input.
Installation Model: Horizontal or Vertical.
Model | Shaft Dia. | Center Height (mm) |
Output Flange Dia. (mm) | Power (kw) |
Ratio | Permitted Torque (Nm) |
Weight (KGS) |
Solid (mm) | |||||||
RC37 | 25k6 | 90h13 | 120/160 | 0.12~0.75 | 5~136 | 150 | 10 |
RC47 | 30k6 | 115h13 | 160/200 | 0.25~2.2 | 5~173 | 300 | 15 |
RC57 | 35k6 | 115h13 | 200/250 | 1.18~5.5 | 5~173 | 400 | 21 |
RC67 | 35k6 | 130h13 | 200/250 | 0.37~7.5 | 5~170 | 500 | 27 |
RC77 | 40k6 | 140h13 | 250/300 | 0.55~11 | 5~192 | 750 | 35 |
RC87 | 50k6 | 180h13 | 300/350 | 0.75~18.5 | 5~192 | 1250 | 65 |
RC97 | 60m6 | 225h13 | 350/450 | 1.5~30 | 5~197 | 2400 | 120 |
RC107 | 70m6 | 250h13 | 350/450 | 2.2~45 | 5~197 | 3600 | 165 |
RC137 | 90m6 | 315h13 | 450/550 | 4~55 | 5~197 | 6600 | 255 |
RC147 | 110m6 | 355h13 | 450/550 | 7.5~90 | 5~195 | 10700 | 370 |
RC167 | 120m6 | 425h13 | 550/660 | 11~132 | 8~186 | 14800 | 700 |
RC187 | 160m6 | 510h13 | 660/770 | 15~160 | 8~186 | 28000 | 1500 |
Remark: the weight without oil, motor, shaft, and flange input add 10%.

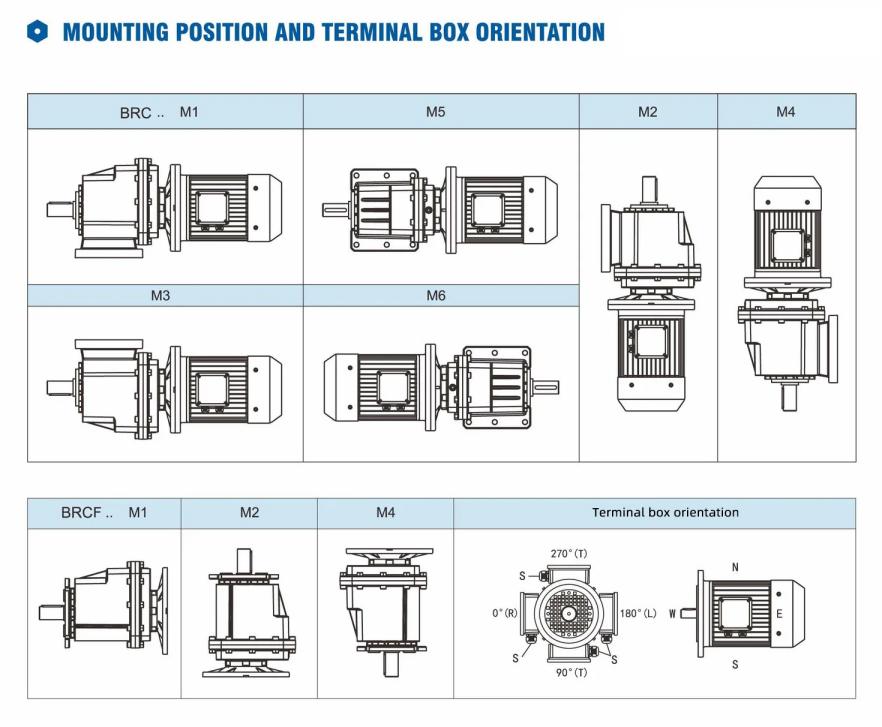

RC Series Inline Helical Gearbox Mounting Position
We also Provide Other Series of Inline Helical Gearbox

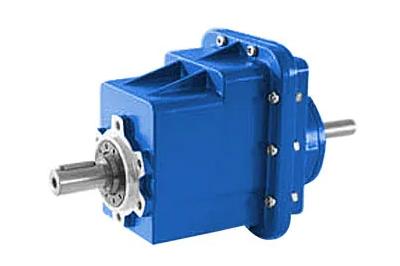

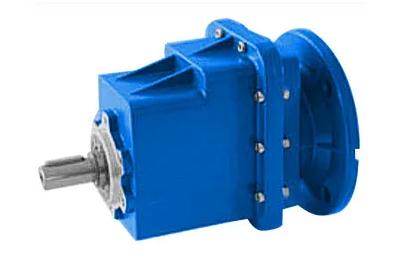

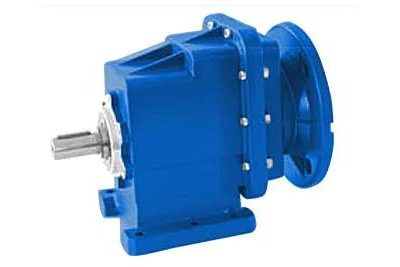

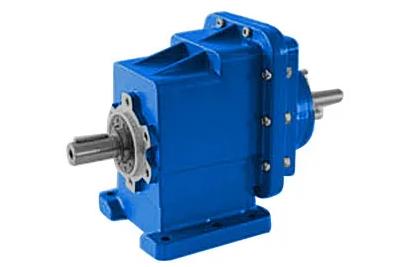

BRC(IEC) | BRC(IEC) | BRC(IEC) |
FOOT-MOUNTED HELICAL GEAR UNIT | B14 FLANGE-MOUNTED HELICAL GEAR UNIT | FLANGE-MOUNTED HELICAL GEAR UNIT |
BRC(HC) | BRC(HC) | BRC(HC) |
SHAFT INPUT FLANGE-MOUNTED HELICAL GEAR UNIT | SHAFT INPUT B14 FLANGE-MOUNTED HELICAL GEAR UNIT | SHAFT INPUT FLANGE-MOUNTED HELICAL GEAR UNIT |
Helical Gearbox Manufacturer in China
As one of the top helical gearbox manufacturers in China, Power-trans offers superior efficiency helical gearboxes widely used in applications where high shock load is required. The helical gearbox includes a set of helical gears. These helical gears are used as power transmitting gears, cylindrical gears, with the slanted form of tooth trace. These teeth are cut at an angle to the hole (axis), and the line of contact between the two teeth is inclined. This gradual engagement of teeth from one end of the tooth to the other makes the gears function smoothly without noise.
In comparison with spur gears, helical gears have a higher contact level; because of their lower dynamics, they can carry larger loads. The helical gearbox is manufactured with high-quality material and excels in quietness as its noise and vibration levels are very low. We also produce RV series worm gearboxes, WP series worm gearboxes, X/B series cycloidal gearboxes, R/F/S/K series helical gearboxes, ATA series shaft-mounted gearboxes, SMR series shaft-mounted gearboxes, etc.
We manufacture gearboxes and geared motors for mining, rolling mills, conveyors, crushers, cranes, thermal power plants, larger ball mills, mixers, agitators, plastic extruders, fin cooler drives, etc. Our products are widely used in applications like material handling, presses, elevators/escalator drive systems, feeders, small ball mills, cooling towers, filters, stirrer units, hoists, lapping tables, steel cooling beds, plastic machinery, goods & personnel lifts, machine tools, derrick & dockyard slewing drives; truck mounted mobile cranes, etc. dredging equipment, automotive, road making machinery, sugar crystallizers, wind turbines, medical equipment, robotics machinery, aviation equipment, packaging equipment, and mill drives.
