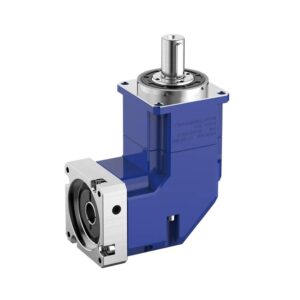

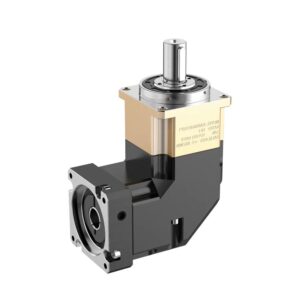

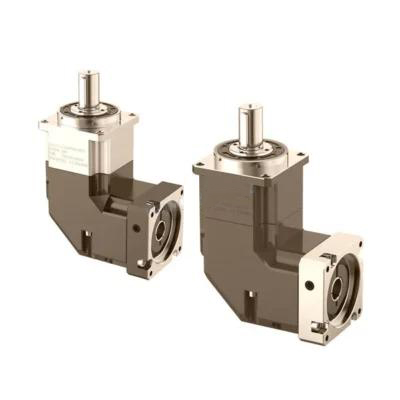

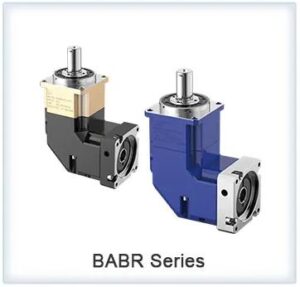

BABR Series High Precision Right Angle Planetary Gearbox (Planetary Gear Reducer)
The BABR series right angle planetary gearbox(BABR Series Planetary Reducer) is a type of planetary gearbox that is designed to transmit power between two shafts that are at right angles to each other. The planetary gearbox consists of a sun gear, a ring gear, and a set of planetary gears that are held in place by a carrier. The sun gear is connected to the input shaft, the ring gear is connected to the output shaft, and the planetary gears are free to rotate around the carrier. When the input shaft is turned, the sun gear rotates the planetary gears. The planetary gears, in turn, rotate the ring gear. The output shaft is connected to the ring gear, so the output shaft rotates in the opposite direction of the input shaft.
The BABR series right angle planetary gearbox is a versatile gearbox that can be used in a variety of applications. It is commonly used in machine tools, robotics, and other industrial applications. The planetary gearbox is also used in some automotive applications, such as power steering systems and differentials. The BABR series right angle planetary gearbox offers a number of advantages over other types of gearboxes. It is compact and lightweight, making it ideal for use in space-constrained applications. The planetary gearbox is also very efficient, with a high gear reduction ratio. The BABR series right angle planetary gearbox is also very durable and can withstand high loads and shock loads.

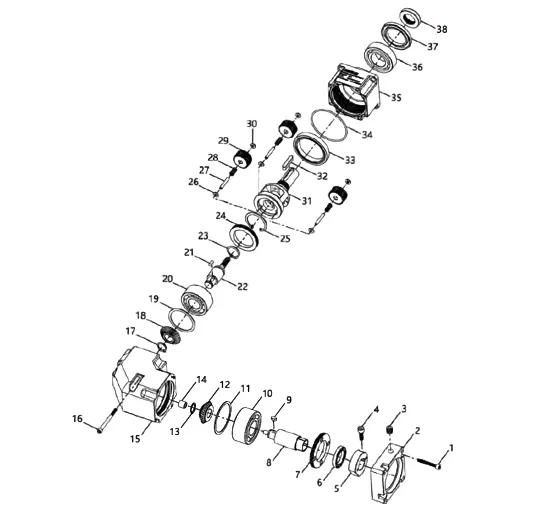

BABR Series Right Angle Planetary Gearbox Components:
1 | Inner hex screw | 14 | Axle sleeve | 27 | Roller |
2 | Back cover | 15 | Gearcase | 28 | Kingpin |
3 | Plug | 16 | Inner hex screw | 29 | Planet gear |
4 | Inner hex screw | 17 | Shaft-circlip | 30 | Washer |
5 | Locking ring | 18 | Gear | 31 | Planet carrier |
6 | Oil seal | 19 | Shim ring | 32 | Key |
7 | Adjusting ring | 20 | Bearing | 33 | Bearing |
8 | Input shaft | 21 | Key | 34 | 0- ring |
9 | Key | 22 | Sun wheel | 35 | Internal gear |
10 | Bearing | 23 | Shaft-circlip | 36 | Bearing |
11 | Shim ring | 24 | Adjusting ring | 37 | Oil seal |
12 | Pinion | 25 | Hole-circlip | 38 | Lock nut |
13 | Shaft-circlip | 26 | Washe |
BABR Series Right Angle Planetary Gearbox Model:
BABR Series Model No.: BABR042, BABR060, BABR090, BABR115, BABR142, BABR180, BABR220
|
||
7 Sices
|
42mm-220mm
|
|
Output Torque
|
9N.m-2000N.m
|
|
Ratio
|
1-stage
|
3/4/5/6/7/8/9/10/14/20
|
2-stages
|
15/20/25/30/35/40/45/50/60/70/80/90/100/120/140/160/180/200
|
|
Backlash
|
1-stage
|
≤2,≤4,≤6 arcmin
|
2-stages
|
≤4,≤7,≤9 arcmin
|

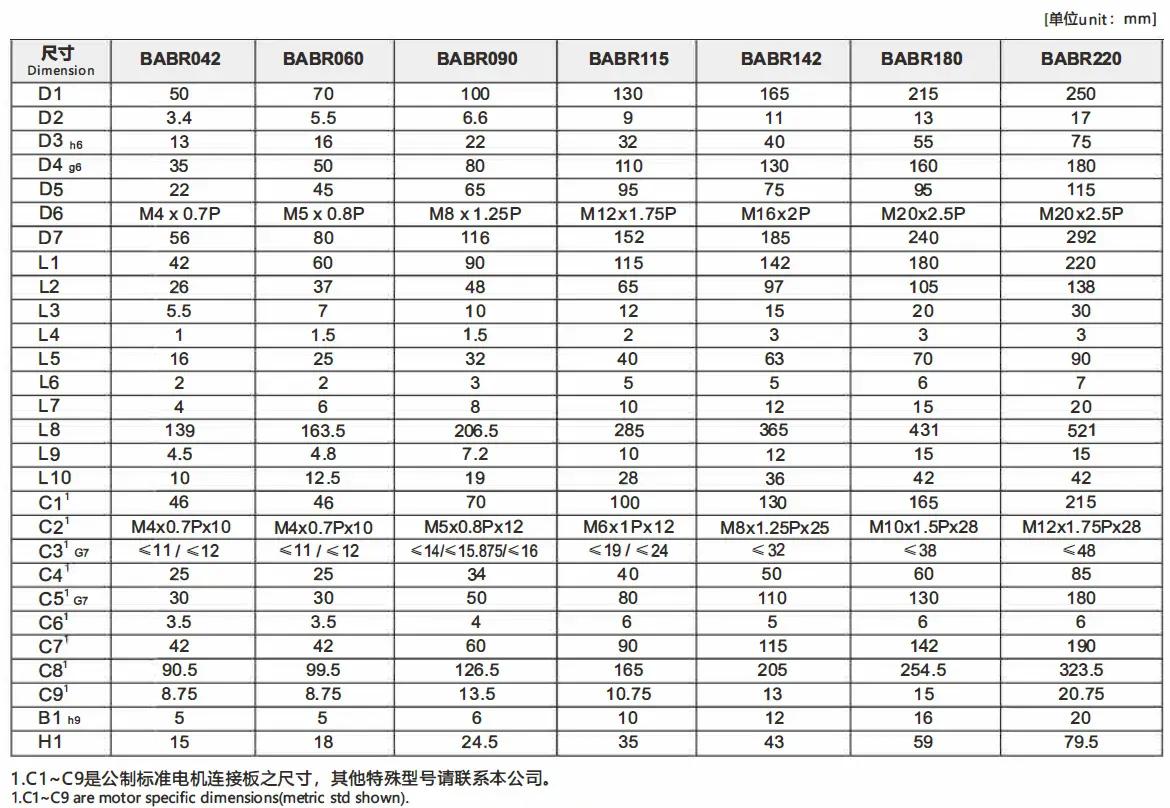

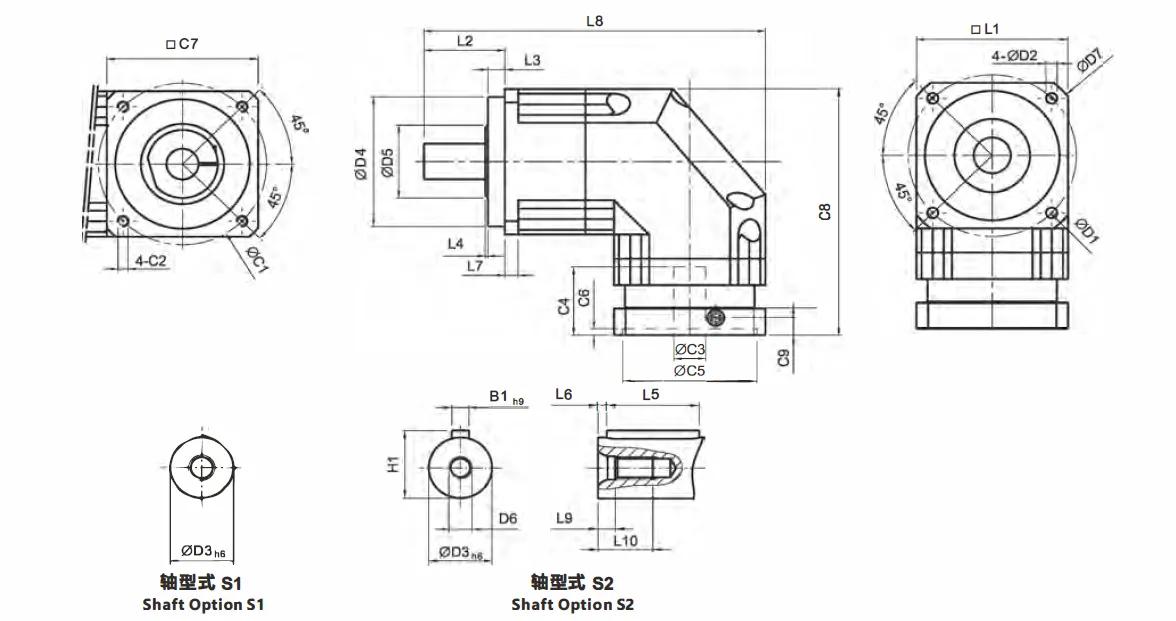

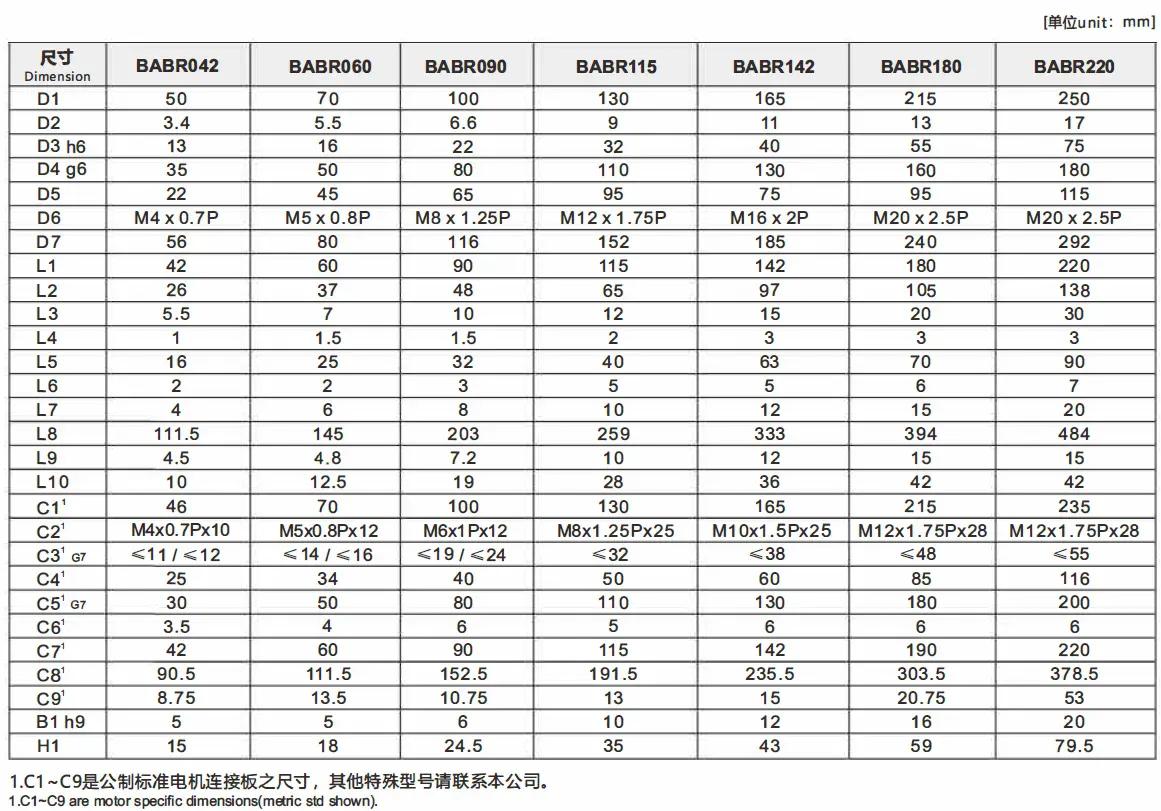

BABR Series Right Angle Planetary Gearbox Outline Dimension:
Single Stage Planetary Gearbox (Ratio i=3~20)

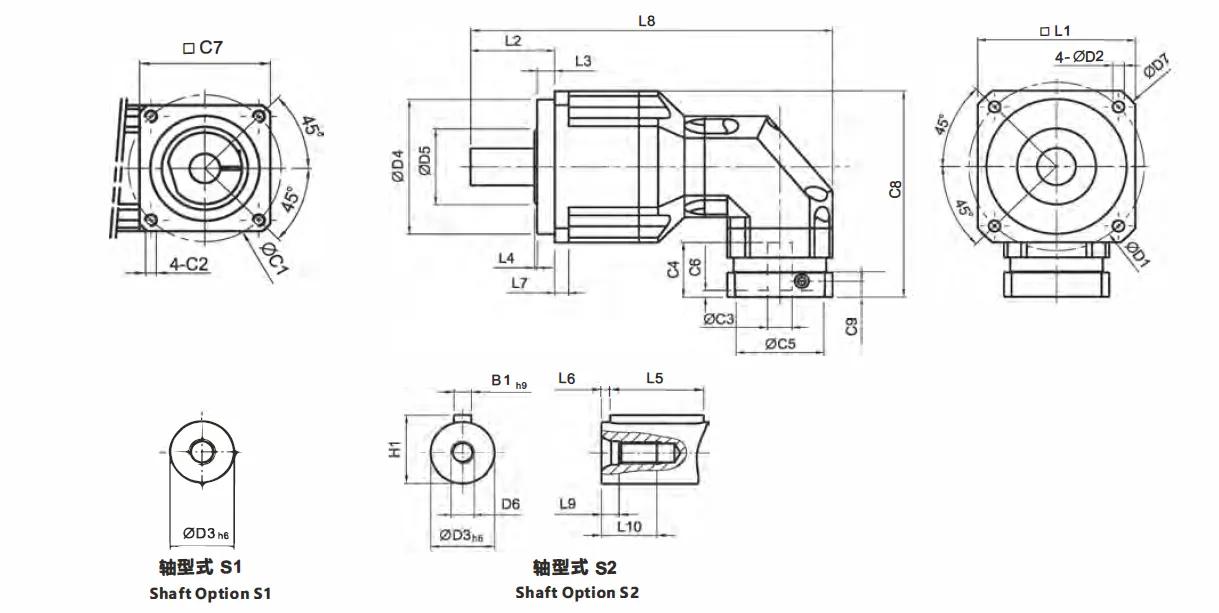

Two Stage Planetary Gearbox (Ratio i=15~200)
BABR Series Right Angle Planetary Gearbox Advantages
The BABR series right angle planetary gearbox offers a number of advantages over other types of gearboxes. Here are some of the specific advantages of the BABR series right angle planetary gearbox:
-
Compact and lightweight design: The BABR series right angle planetary gearbox is a compact and lightweight gearbox, making it ideal for use in space-constrained applications. The planetary gearbox is typically only a few inches in size and weighs less than a few pounds. This makes it easy to install and maintain, and it also reduces the overall weight of the system.
-
High gear reduction ratio: The BABR series right angle planetary gearbox offers a high gear reduction ratio, which allows it to transmit high torques over a wide range of speeds. The gear reduction ratio can be customized to meet the specific requirements of the application. This makes the planetary gearbox ideal for a variety of applications, such as machine tools, robotics, and industrial automation.
-
Efficient operation: The BABR series right angle planetary gearbox is an efficient gearbox with a high power-to-weight ratio. This means that the gearbox can transmit a lot of power without losing a lot of energy in the process. This makes the planetary gearbox a good choice for applications where efficiency is important, such as in machine tools and robotics.
-
Durable and reliable construction: The BABR series right angle planetary gearbox is a durable and reliable gearbox with a long service life. The planetary gearbox is made from high-quality materials and is designed to withstand harsh environments. This makes it a good choice for applications where reliability is important, such as in industrial automation and robotics.
Overall, the BABR series right angle planetary gearbox is a versatile and reliable gearbox that offers a number of advantages over other types of gearboxes. It is a good choice for a variety of applications where compactness, lightweight, efficiency, durability, and reliability are important.
BABR Series Right Angle Planetary Gearbox Common Applications:
The BABR series right angle planetary gearbox is a versatile gearbox that can be used in a variety of applications. Some of the most common applications for the BABR series right angle planetary gearbox include:
(1) Robotics: The BABR series right angle planetary gearbox is also commonly used in robotics. The gearbox is used to transmit power from the motor to the joints of the robot, which allows the robot to move and manipulate objects.
(2) Industrial automation: The BABR series right angle planetary gearbox is also used in industrial automation. The gearbox is used to transmit power from the motor to the actuators, which control the movement of machinery.
(3) Automotive: The BABR series high speed planetary gearbox is also used in some automotive applications, such as power steering systems and differentials.
(4) Material handling: The BABR series 90 degree planetary gearbox is used in material handling equipment, such as conveyors, hoists, and cranes. The gearbox is used to transmit power from the motor to the load, which allows the load to be moved and lifted.
(5) Food and beverage processing: The BABR series high torque planetary gearbox is used in food and beverage processing equipment, such as mixers, grinders, and pumps. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to process food and beverages.
(6) Medical: The BABR series high precision planetary gearbox is used in medical equipment, such as surgical robots and imaging devices. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to perform its functions.
(7) Aerospace: The BABR series right angle planetary gearbox is used in aerospace applications, such as aircraft engines and landing gear. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to perform its functions.
How to Choose the Right Angle Planetary Gearbox?
Choosing the right right-angle planetary gearbox requires careful consideration of several factors. Here are some key factors to consider when choosing a right-angle planetary gearbox:
- Torque requirements: The first step in selecting a right angle planetary gearbox is to determine. Required torque output for your application. This will depend on factors such as the load to move, the speed of operation, and the required precision.
- Speed requirements: The speed ratio of the right angle planetary gearbox is another important factor to consider. This will depend on the input speed of the motor and the desired output speed of the planetary gearbox. Choose a gearbox with a speed ratio that matches your application requirements.
- Size and weight: The size and weight of the 90 degree planetary gearbox are important factors to consider, especially if you have limited space available. Choose a planetary gearbox that is compact and lightweight but also robust enough to withstand the demands of your application.
- Mounting options: Consider the mounting options for the right angle planetary gearbox and choose one that can be easily integrated into your system. The BABR series right angle planetary gearbox, for example, mounted in various orientations to suit different applications.
- Backlash: Backlash is the clearance between the gear teeth and can affect the precision of the right angle planetary gearbox. Consider the required precision for your application and choose a gearbox with a low backlash.
- Environmental factors: Consider the environmental factors that the right angle planetary gearbox will be exposed to, such as temperature, humidity, and vibration. Choose a planetary gearbox that is designed to withstand these factors.

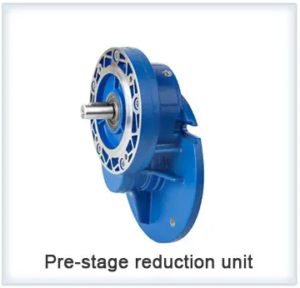

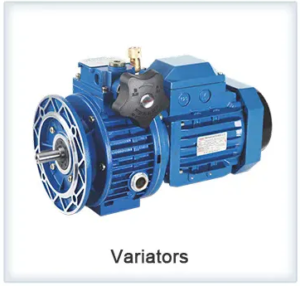

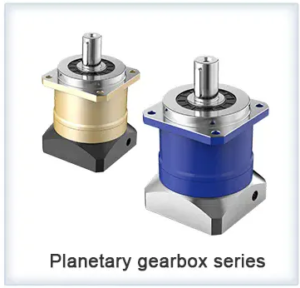

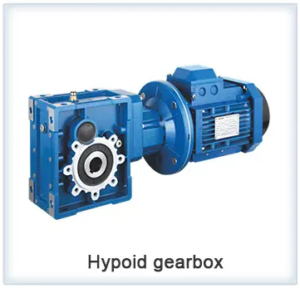

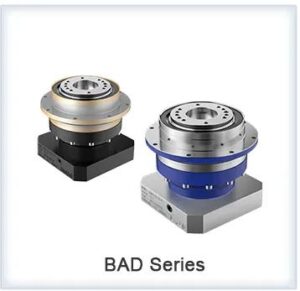

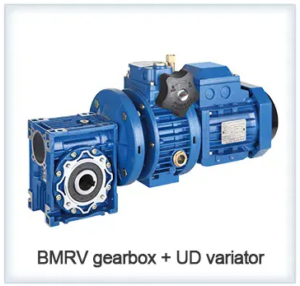

We Also Provide Other Planetary Gearbox Types

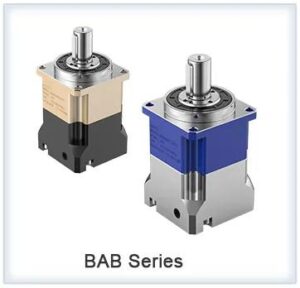

Similar Products | ||
Similar Products | ||
Right Angle Planetary Gearbox Manufacturers
Power-trans Mechanical & Electrical Co., Ltd. is a professional manufacturer of planetary gearbox and electric motors. The factory covers an area of 20,000 square meters, the building area of 30,000 square meters, and the total number of staff is more than 200. We have passed the ISO9001:2015 international quality management system standard certificate, CCC national compulsory product certificate, and CE certificate. We have developed advanced management software such as ERP to keep pace with international standards. In order to serve customers better, the company actively cooperates with colleges and universities to develop new products and improve existing products.
FAQ
Q1: What is a right angle planetary gearbox?
A: A right angle planetary gearbox is a type of gearbox that uses a planetary gear system to transmit power at a right angle (90 degrees) from the input shaft to the output shaft. It typically consists of a sun gear, planet gears, a ring gear, and a carrier, and is designed for high torque and speed applications.
Q2: What are the advantages of using a right angle planetary gearbox?
A: Some of the advantages of using a right angle planetary gearbox include high efficiency, compact design, high torque capacity, and low backlash. They are also able to handle high speeds and loads, and are often used in applications where space is limited or where the input and output shafts need to be at a right angle to each other.
Q3: What are some common applications for right angle planetary gearboxes?
A: Right angle planetary gearboxes are commonly used in a variety of applications, including packaging machinery, material handling equipment, robotics, medical equipment, and industrial automation. They are also used in the aerospace, defense, and automotive industries, among others.
Q4: How do I select the right right angle planetary gearbox for my application?
A: There are several factors to consider when selecting a right angle planetary gearbox, including the required torque and speed, the ratio of the gearbox, the mounting configuration, the input and output shaft sizes and types, andthe operating environment (such as temperature and humidity). It’s important to consult with a gearbox manufacturer or supplier to ensure that you select the right gearbox for your specific application.
Q5: How do I maintain a right angle planetary gearbox?
A: Regular maintenance is important for ensuring the longevity and performance of a right angle planetary gearbox. This may include checking and replacing lubricant, checking for wear and damage to gears and bearings, and monitoring operating temperatures. It’s important to follow the manufacturer’s recommended maintenance schedule and procedures to ensure proper operation of the gearbox.
Q6: Are there any limitations to using a right angle planetary gearbox?
A: While right angle planetary gearboxes have many advantages, there are some limitations to consider. They may not be suitable for applications requiring extremely high torque or speed, as other types of gearboxes may be better suited for these applications. Additionally, they may be more expensive than other types of gearboxes, so cost may be a consideration for some applications.
