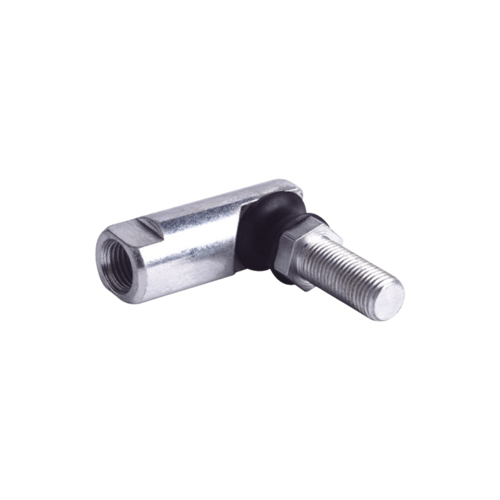

Es series Ball Joints
Es series Ball Joints
1) Extruded structure. 2) Alternative left-hand thread for the ball socket. 3) Filled with lubricant so as to circle swing agilely without any block. 4) Unless otherwise specified, all dimensions in inches. |
|
Material and surface treatments: 1) Ball socket: medium carbon steel 45; Ball stud: medium carbon steel 45.Zinc plating. Sealing cap: rubber. 2)Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation. |

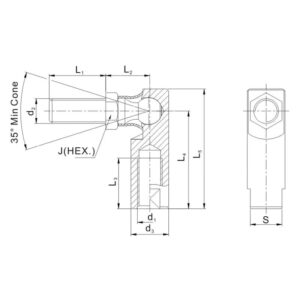

Part No. | Dimension | Min Pull Test(lb) | MinShear(lb) | |||||||||
d1 | d2 | d3 | L1 | L2 | L3 | L4 | L5 | S | J | |||
ES187 | 10-32-2B | 10-32-2A | 0.375 | 0.438 | 0.438 | 0.438 | 0.875 | 1.063 | 0.313 | 0.313 | 400 | 400 |
ES250 | 1/4-28-2B | 1/4-28-2 A | 0.438 | 0.563 | 0.469 | 0.500 | 0.969 | 1.219 | 0.375 | 0.375 | 500 | 500 |
ES312 | 5/16-24-2B | 5/16-24-2A | 0.500 | 0.688 | 0.531 | 0.563 | 1.125 | 1.406 | 0.438 | 0.438 | 650 | 800 |
ES375 | 3/8-24-2B | 3/8-24-2A | 0.625 | 0.875 | 0.688 | 0.750 | 1.375 | 1.688 | 0.500 | 0.500 | 1000 | 800 |
ES438 | 7/16-20-2B | 7/16-20-2A | 0.750 | 1.125 | 0.875 | 1.000 | 1.938 | 2.375 | 0.625 | 0.625 | 2000 | 2400 |
ES500 | 1/2-20-2B | 1/2-20-2A | 0.750 | 1.125 | 0.875 | 1.000 | 1.938 | 2.375 | 0.625 | 0.625 | 2000 | 2500 |
We’re is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. We are leading manufacturer of Ball Joints ES series suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Ball Joints ES series are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
