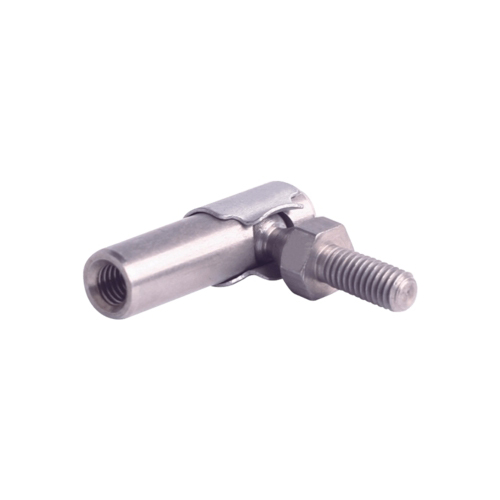

Pl series Ball Joints
Pl series Ball Joints
1) Alternative left-hand thread for the ball socket. |
|
Material and surface treatments: 1)Ball socket: low carbon steel Q235A, Zinc plating . Alternative stainless steel 304, stainless steel303 or stainless steel 316 with surface passivation. 2)Ball stud: low carbon steel Q235A,Zinc plating. Alternative stainless steel 304, stainless steel 303 or stainless steel 316 with surface passivation. 3)Retaining clip: spring steel.Zinc plating or dacromet. |
Part No. | Dimensions | ||||||||
D1 | D2 | F | G | J | L | M | N | P | |
PI-3-3 | 10-32-2B | 10-32-2A | .438 | .438 | .3125 | .3125 | 1.156 | .875 | .484 |
PI-3-4 | 10-32-2B | 1/4-28-2A | .438 | .563 | .3125 | .3125 | 1.156 | .875 | .484 |
PI-4-3 | 1/4-28-2B | 10-32-2A | .438 | .438 | .3125 | .3125 | 1.250 | .969 | .531 |
PI-4-4 | 1/4-28-2B | 1/4-28-2 A | .438 | .563 | .3125 | .3125 | 1.250 | .969 | .531 |
PI-4L-4L | 1/4-28-2B | 1/4-28-2A | .562 | .500 | .3125 | .3400 | 1.750 | 1.500 | 1.120 |
We are well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. We’re leading manufacturer of Ball Joints PI series and Ball Joints PI series suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. We design the non-standard products and put into production as per samples or drawings accordingly. Factory manufactured Ball Joints PI series are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
