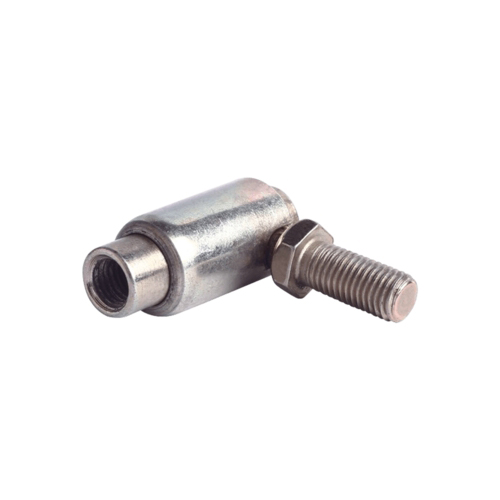

Ball Joints QD series
Ball Joints QD series
1)Alternative left-hand thread for the ball socket. |
|
Material and surface treatments: 1)Ball socket: low carbon steel Q235A;Ball stud: medium carbon steel 45; Shell: low carbon steel 20.zinc plating.Spring: stainless steel 304. 2)Ball socket and ball stud: alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation. 3)Ball socket and ball stud: alternative aluminum 6061 with anodic oxidation treatment. |

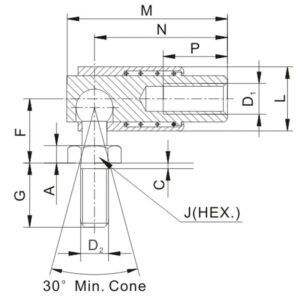

Part No. | Dimensions | Min. Pull Test | Min. Shear | ||||||||||
D1 | D2 | A | C | F | G | J | L | M | N | P | lb | lb | |
QD187 | 10-32-2B | 10-32-2A | .125 | .063 | .438 | .438 | .312 | .438 | 1.094 | .906 | .438 | 430 | 650 |
QD250 | 1/4-28-2B | 1/4-28-2A | .125 | .063 | .469 | .562 | .375 | .562 | 1.250 | .969 | .531 | 950 | 800 |
QD312 | 5/16-24-2B | 5/16-24-2A | .156 | .094 | .531 | .687 | .437 | .625 | 1.453 | 1.125 | .605 | 1000 | 1000 |
QD375 | 3/8-24-2B | 3/8-24-2A | .187 | .094 | .687 | .875 | .500 | .750 | 1.750 | 1.375 | .812 | 1250 | 1250 |
QD500 | 1/2-20-2B | 1/2-20-2A | .250 | .094 | .875 | 1.125 | .625 | 1.000 | 2.530 | 2.030 | 1.000 | 1900 | 2000 |
We have more than 300 all kinds of precision machining equipments and professional testing instruments. We’re leading manufacturer of Ball Joints QD series, which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on.Custom non-standard products is acceptable and put into production as per samples or drawings accordingly. Factory manufactured Ball Joints QD series are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
