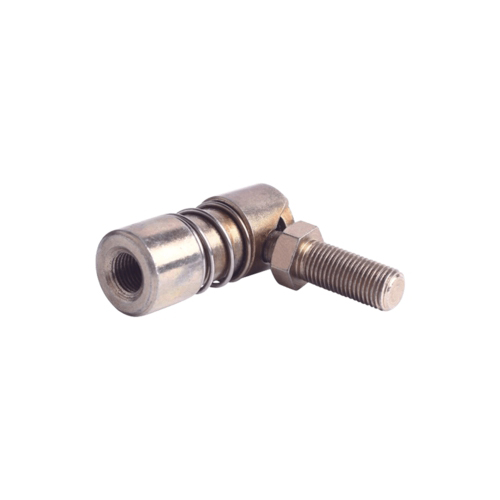

Ql series Ball Joints
Ql series Ball Joints
1)Alternative left-hand thread for the ball socket. |
|
Material and surface treatments: 1)Ball socket: low carbon steel Q235A;Ball stud: medium carbon steel 45; Shell: ow carbon steel 20.zinc plating. Spring: stainless steel 304. 2)Ball socket and ball stud: alternative stainless steel 304,stainless steel 303 or stainless steel 316.Surface passivation. 3)Ball socket and ball stud: alternative aluminum 6061 with anodic oxidation treatment. |
Part NO. | Dimensions | Min. Pull Test | Min. Shear | |||||||||||
D1 | D2 | A | C | F | G | J | L | M | N | P | S | lb | lb | |
Ql 187 | 10-32-2B | 10-32-2A | .125 | .063 | .4375 | .4375 | .3125 | .4375 | 1.094 | .9063 | .4375 | .250 | 430 | 500 |
QI250 | 1/4-28-2B | 1/4-28-2A | .125 | .063 | .4690 | .5620 | .3750 | .5620 | 1.250 | .9690 | .610 | .350 | 560 | 500 |
Ql 312 | 5/16-24-2B | 5/16-24-2A | .156 | .094 | .5310 | .6870 | .4370 | .6250 | 1.453 | 1.1250 | .630 | .438 | 1000 | 1500 |
Ql 375 | 3/8-24-2B | 3/8-24-2A | .187 | .094 | .6870 | .8750 | .5000 | .7500 | 1.750 | 1.3750 | .812 | .470 | 1580 | 2400 |
Ql 500 | 1/2-20-2B | 1/2-20-2A | .250 | .094 | .8750 | 1.125 | .6250 | 1.000 | 2.530 | 2.0300 | 1.000 | .570 | 2400 | 2700 |
Hangzhou Powertrans Technology Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Hangzhou Powertrans Technology Co., ltd is leading manufacturer of Ball Joints QI series and Ball Joints QI series suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Ball Joints QI series are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
