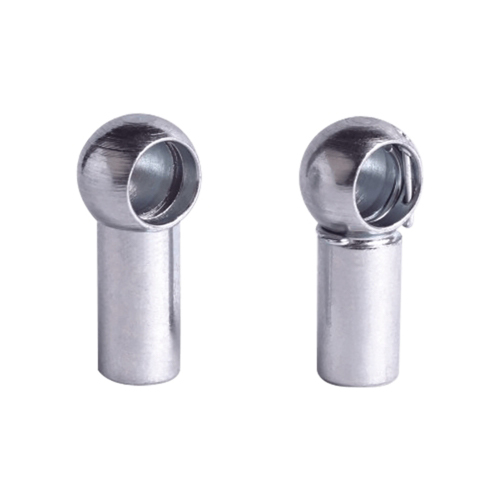

DIN71805 Ball Sockets
DIN71805 Ball Sockets
 |
DIN71805 Ball Sockets

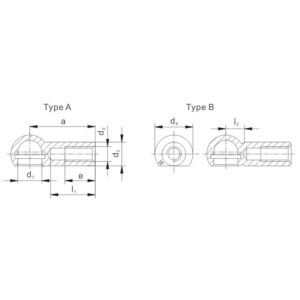

1) Type B with safety clip. 2)Alternative with left-hand thread. 3) Alternative with spanner surface or hexagon surface. |
| Material and surface treatments:
1) Low carbon steel Q235A.Zinc plating. 2) Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation. |
|
| Dimensions | Weight
Kg/1000 pieces for type |
||||||||
| d1 | d2 | a
±0.3 |
d3
±0.5 |
d4
±0.5 |
e
min. |
l1
max. |
l2
±0.4 |
A | B |
| 8 | M 5 | 22 | 8 | 12.8 | 10.2 | 15 | 6.3 | 9.0 | 8.8 |
| 10 | M 6 | 25 | 10 | 14.8 | 11.5 | 17 | 7.0 | 14.2 | 14.1 |
| 13 | M 8 | 30 | 13 | 19.3 | 14.0 | 20 | 9.1 | 29.0 | 28.8 |
| 16 | M 10 | 35 | 16 | 24.0 | 15.5 | 22 | 11.4 | 57.0 | 56.8 |
| 16 | M 12 | 35 | 16 | 24.0 | 15.5 | 22 | 11.4 | 57.0 | 56.8 |
| 19 | M 14X1.5 | 45 | 22 | 30.0 | 21.5 | 28 | 12.5 | 125.0 | 124.8 |
| 19 | M 14X2 | 45 | 22 | 30.0 | 21.5 | 28 | 12.5 | 125.0 | 124.8 |
| 19 | M 16 | 45 | 22 | 30.0 | 21.5 | 28 | 12.5 | 125.0 | 124.8 |
