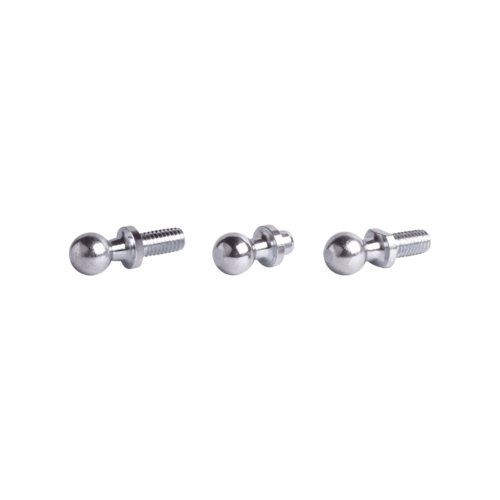

Ball studs DIN71803
Ball studs DIN718o3
 |
Ball studs DIN71803

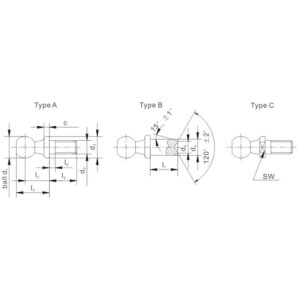

1) Type A without spanner surface, with thread. Type B without spanner surface, without thread. Type C with spanner surface, with thread. 2) The hardness of ball d1: Min. HRC52; Hardening depth: Min.1mm. |
| Material and surface treatments:
1) Medium carbon steel 45.Zinc plating. 2) Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation. |
|
| 尺寸mm Dimensions | 重量KG Weight
Kg/1000 pieces for type |
||||||||||||
| d1
h9 |
d2 | l1
±0.2 |
C
+ 0.4 |
d3
h14 |
d5
h11 |
d6
-0.4 |
l2
±0.3 |
l3
±0.3 |
l4
±0.3 |
l6
max. |
SW
h14 |
A and C | B |
| 8 | M 5 | 4.0
7.5 |
2.0 | 8 | 5 | 3 | 10.2 | 9 | 12.5 | 4.0 | 7 | 4.55 | 3.85
4.35 |
| 10 | M6 | 4.5
8.0 |
2.2 | 10 | 6 | 4 | 12.5 | 11 | 15.5 | 4.0 | 8 | 8.50 | 7.10
7.80 |
| 13 | M8 | 5.0
10 |
2.4 | 13 | 8 | 6 | 16.5 | 13 | 18.5 | 5.3 | 11 | 17.7 | 14.2
16.0 |
| 16 | M 10 M 12 | 6.0
13 |
2.7 | 16 | 10 | 8 | 20.0 | 16 | 23.0 | 7.3 | 13 | 35.1 | 23.5
29.6 |
| 19 | M14X15
M14X2 M16 |
12
18 |
3.0 | 19 | 14 | 10 | 28.0 | 20 | 28.5 | 10.8 | 16 | 71.2 | 56.2
63.7 |
