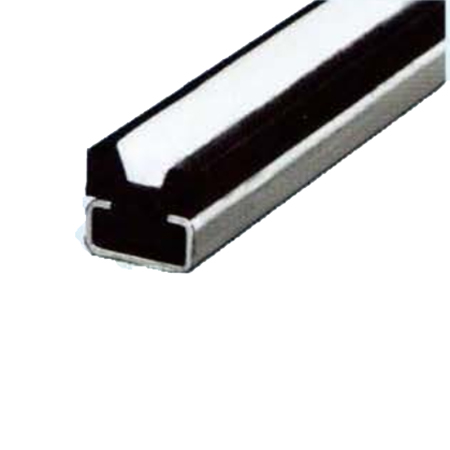

Belt Guide KR CKR FR CFR FK CFK
Types of Belt Guide Fot V Flat Round Belt Guide

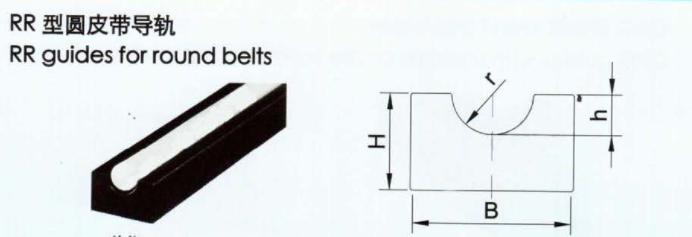

TYPE | belt type | B | H | h | r |
RR5 | 5 | 20 | 10 | 3 | 3 |
RR6.3 | 6.3 | 20 | 10 | 4 | 4 |
RR8 | 8 | 20 | 12 | 5 | 5 |
RR9.5 | 9.5 | 25 | 15 | 6 | 6 |
RR12.5 | 12.5 | 28 | 20 | 8 | 7 |
RR15 | 15 | 33 | 25 | 10 | 9 |
RR18 | 18 | 38 | 25 | 12 | 10 |

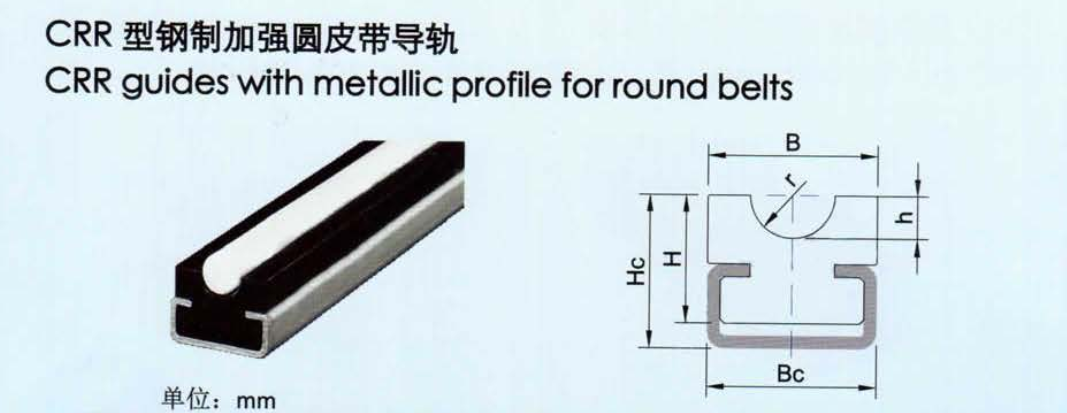

Type | belt type | C profile | Bc | Hc | B | H | h | r |
CRR5 | 5 | C3 | 20 | 15 | 20 | 10 | 3 | 3 |
CRR6.3 | 6.3 | C3 | 20 | 18 | 20 | 15 | 4 | 4 |
CRR8 | 8 | C3 | 20 | 18 | 20 | 15 | 5 | 5 |
CRR9.5 | 9.5 | C5 | 28 | 20 | 25 | 15 | 6 | 6 |
CRR12.5 | 12.5 | C5 | 28 | 20 | 28 | 15 | 8 | 7 |
CRR15 | 15 | C9 | 38 | 25 | 33 | 20 | 10 | 9 |
CRR18 | 18 | C9 | 38 | 25 | 38 | 20 | 12 | 10 |

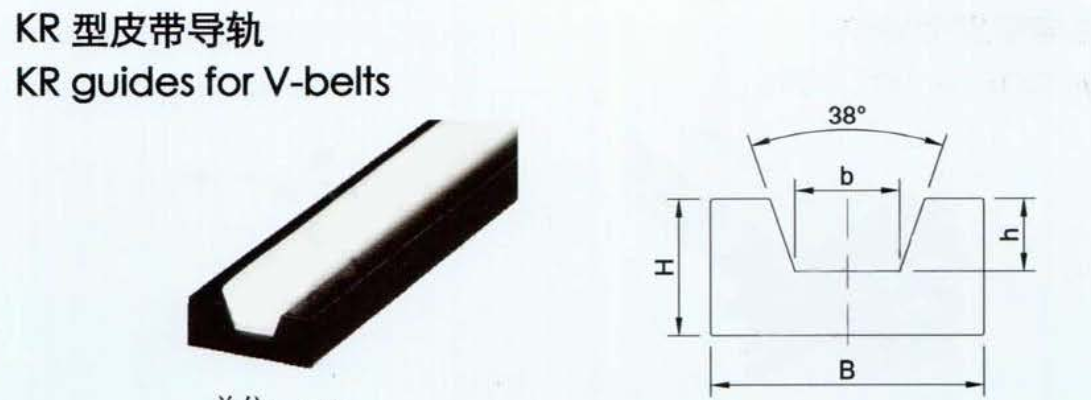

Type | Belt type/bxh | B | H | h | |||
KR8 | 8×5 | 20 | 10 | 3.5 | |||
KR10 | 10×6 | 20 | 10 | 4.5 | |||
KR13 | 13×8 | 20 | 12 | 6 | |||
KR17 | 17 x 11 | 30 | 15 | 8 | |||
KR20 | 20x 12,5 | 30 | 20 | 9 | |||
KR22 | 22×14 | 35 | 20 | 10.5 | |||
KR25 | 25×16 | 40 | 25 | 12 | |||
KR32 | 3220 | 50 | 30 | 16 | |||
KR40 | 40×25 | 60 | 35 | 21 |

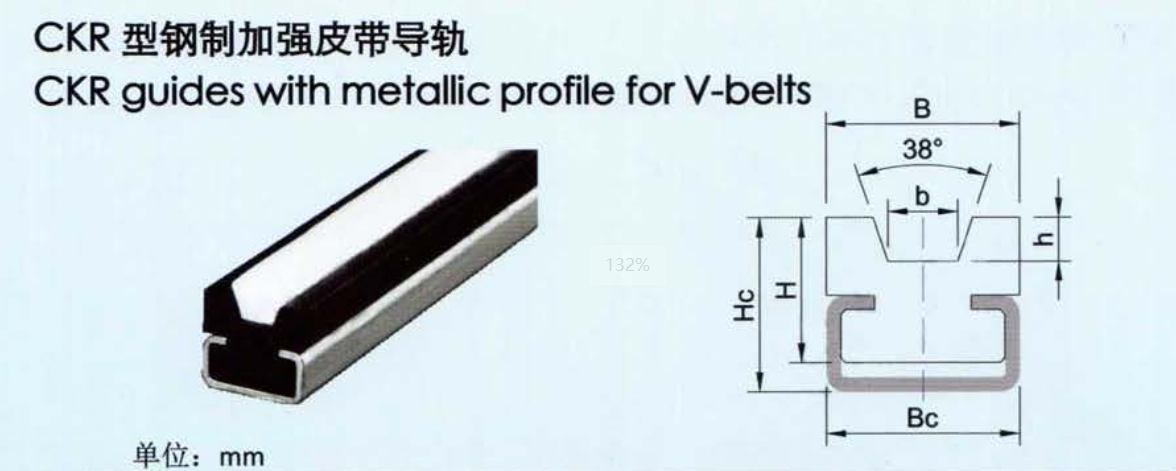

Type | Belt type/bxh | C profile | Bc | HC | B | H | |
CKR8 | 8×5 | C3 | 20 | 15 | 20 | 10 | |
CKR10 | 10×6(Z) | C3 | 20 | 18 | 20 | 15 | |
CKR13 | 13×8(A) | C5 | 28 | 22 | 25 | 18 | |
CKR17 | 17x 11 (B) | C5 | 28 | 24 | 30 | 18 | |
CKR20 | 20x 12,5 | C5 | 28 | 24 | 30 | 18 | |
CKR22 | 22×14 (C) | C9 | 38 | 30 | 35 | 25 | |
CKR25 | 25x 16 | C9 | 38 | 32 | 40 | 25 | |
CKR32 | 32×20(D) | C12 | 60 | 40 | 60 | 35 | |
CKR40 | 40×25 (E ) | C12 | 60 | 40 | 60 | 35 |

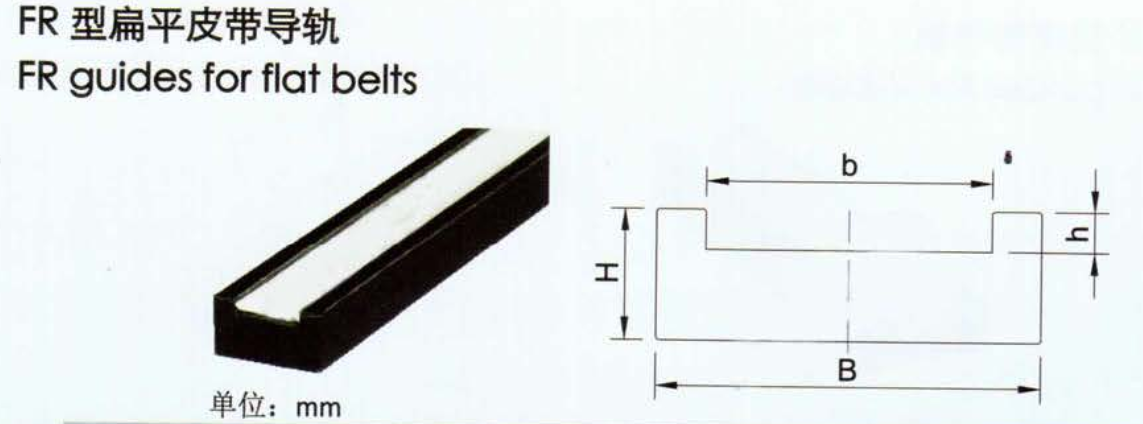

Type | Belt type b/T | B | H | h |
FR25-T5 | 25/T5 | 35 | 10 | 1.8 |
FR32-T5 | 32/T5 | 45 | 12 | 1.8 |
FR25-T10 | 25/T10 | 35 | 12 | 3.8 |
FR32-T10 | 32/T10 | 45 | 12 | 3.8 |
FR50 | 50/T10 | 65 | 15 | 3.8 |
FR75 | 75/T10 | 90 | 15 | 3.8 |
FR100 | 100/T10 | 115 | 18 | 3.8 |

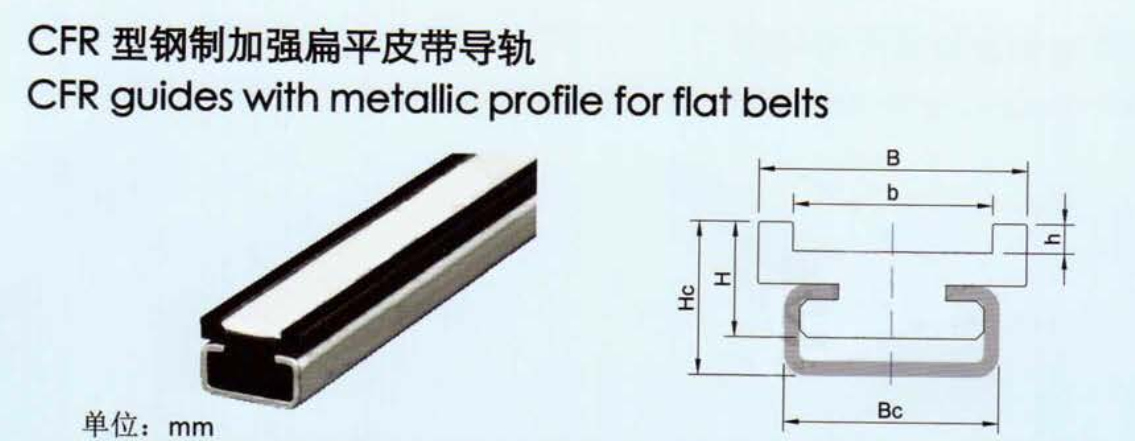

Type | belt type b/T | C profile | Bc | Hc | B | H |
CFR25-T5 | 25/T5 | C5 | 28 | 18 | 35 | 12 |
CFR32-T5 | 32/T5 | C5 | 28 | 18 | 45 | 12 |
CFR25-T10 | 25/T10 | C5 | 28 | 20 | 35 | 15 |
CFR32-T10 | 32/T10 | C5 | 28 | 20 | 45 | 15 |
CFR50 | 50/T10 | C4 | 50 | 20 | 65 | 18 |
CFR75 | 75/T10 | C6 | 80 | 20 | 90 | 18 |
CFR100 | 100/T10 | C6 | 80 | 20 | 115 | 18 |

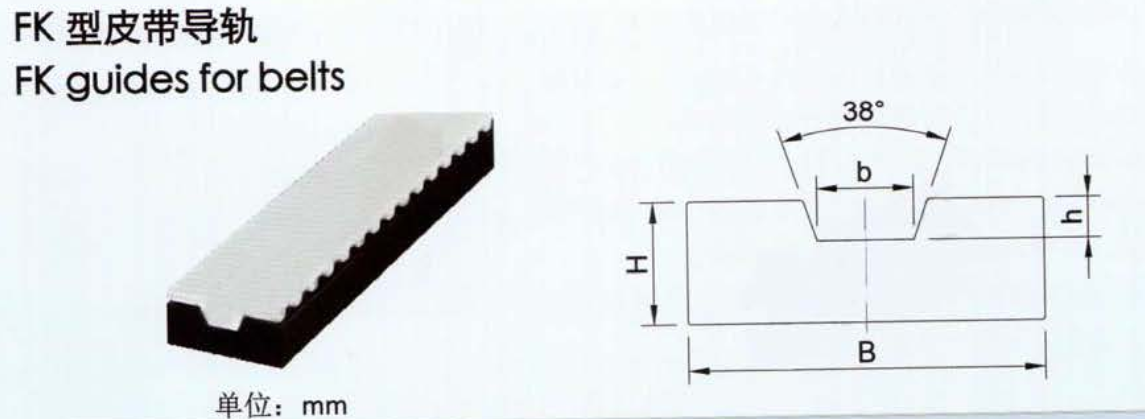

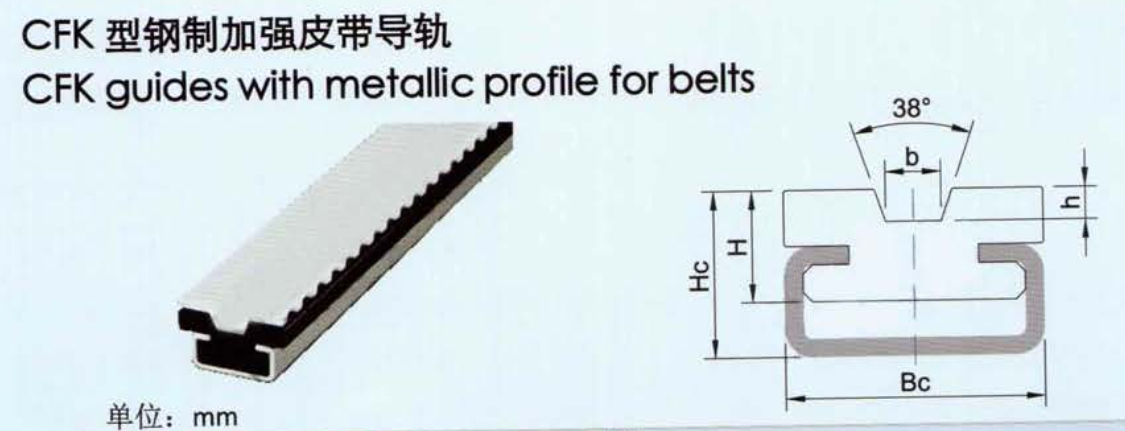

Type | Belt type b/TK | B | H | h | |
FK25 | 25/TK5 | 28 | 10 | 3.5 | |
FK32-5 | 32/TK5 | 35 | 10 | 3.5 | |
FK32-10 | 32/TK10* | 35 | 4 | 12 | |
FK50 | 50/TK10* | 55 | 12 | 4 | |
FK75 | 75/TK10 | 80 | 15 | 5 | |
FK100 | 100/TK 10 | 105 | 15 | 5 |
Type | Belt type b/T | C profile | Bc | Hc | B | H | ||
CFK25 | 25/TK5 | C5 | 28 | 18 | 28 | 12 | ||
CFK32-5 | 32/TK5 | C5 | 28 | 18 | 35 | 12 | ||
CFK32-10 | 32/TK10* | C5 | 28 | 18 | 35 | 12 | ||
CFK50 | 50/TK10* | C4 | 50 | 18 | 55 | 15 | ||
CFK75 | 75/TK10 | C6 | 80 | 18 | 80 | 15 | ||
CFK100 | 100/TK10 | C6 | 80 | 18 | 105 | 15 |
