HY-VO Inverted tooth chains
Hy-Vo (high velocity and involute tooth) chain is a specific type of inverted tooth chain, or silent chain, that is used to drive the camshafts of many medium to large motorcycles and other vehicles. It is also used in the transfer-case drive of four-wheel-drive vehicles and as the primary drive between the engine and transmission. There is only one type of Hy-Vo chain, made by Power-trans Inc.
Dimensional parameters
节距 | 链宽 | 销轴长度 | 孔中心到齿尖 距离 | 链板高度 | 链板厚度 | 导向型式 | 片数 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
链号 Chain No. | P itch | Chain
width |
Pin
length |
Distence from hole center to tooth | Plate depth | Plate thickness | Guide type | Number of
plates |
UItimate tensile strength | Average
tensile strength |
Weight per meter |
P | b
max |
L
max |
h1 | h2
max |
T | n | Q
min |
Qo | q | ||
mm | mm | mm | mm | mm | mm | kN/bf | kN | kg/m | |||
HV6 | 19.05 | 73.5 | 813 | 10.50 | 20.90 | 2.0 | 外 Outsit 17X18 | 174/39100 | 200 | 7.4 | |
HV8 | 25.40 | 48.5 | 56.9 | 14.06 | 27.74 | 3.0 | 外 Outsit | 7X8 | 187 /42022 | 200 | 7.0 |
BIZ series HY-VO Inverted tooth chains

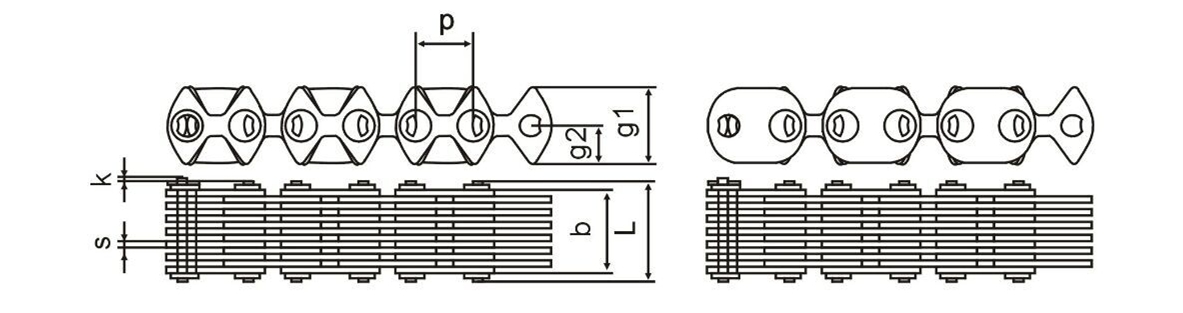

Dimensional parameters
节距 | 片数 | 工作宽度 | 销轴长度 | 抗拉强度 | 测量力 | 重量 | |||||
链号 | P | b | I | g1 | g2 | s | k | N | N | (kg/m ) | |
mm | min | max | max | min | |||||||
BIZ015A | 10 | 12.5 | 20 | 17400 | 174 | 0.9 | |||||
BIZ020A | 14 | 18.8 | 26 | 25200 | 252 | 1.2 | |||||
BIZ025 | 17 | 26.5 | 31 | 32900 | 329 | 1.5 | |||||
BIZ030 | 9.525 | 21 | 33.0 | 38 | 14 | 7 | 1.5 | 2 | 41000 | 410 | 1.8 |
BIZ040 | 25 | 39.0 | 44 | 48000 | 480 | 2.1 | |||||
BIZ050 | 33 | 51.5 | 56 | 64000 | 640 | 2.8 | |||||
BIZ065 | 41 | 64.0 | 69 | 79000 | 790 | 3.4 | |||||
BIZ315A | 10 | 12.5 | 22 | 28300 | 283 | 1.3 | |||||
BIZ320A | 13 | 17.2 | 26 | 34500 | 345 | 1.6 | |||||
BIZ325 | 17 | 26.5 | 33 | 53000 | 530 | 2.0 | |||||
BIZ330 | 21 | 33.0 | 39 | 66000 | 660 | 2.4 | |||||
BIZ340 | 12.7 | 25 | 39.0 | 45 | 18 | 9 | 1.5 | 2.5 | 78000 | 780 | 2.8 |
BIZ350 | 33 | 51.5 | 58 | 104000 | 1040 | 3.7 | |||||
BIZ365 | 41 | 64.0 | 70 | 129000 | 1290 | 4.6 | |||||
BIZ375 | 49 | 77.0 | 83 | 154000 | 1540 | 5.4 | |||||
BIZ380 | 53 | 83.0 | 89 | 166000 | 1660 | 5.8 | |||||
BIZ3100 | 65 | 102.0 | 108 | 204000 | 2040 | 7.2 | |||||
BIZ530A | 15 | 27.0 | 39 | 72000 | 720 | 3.5 | |||||
BIZ535 | 17 | 35.5 | 43 | 95000 | 950 | 3.9 | |||||
BIZ550 | 25 | 52.0 | 59 | 139000 | 1390 | 5.6 | |||||
BIZ565 | 19.05 | 33 | 68.5 | 76 | 27 | 13.5 | 2 | 3.5 | 164000 | 1640 | 7.3 |
BIZ590 | 45 | 93.5 | 101 | 251000 | 2510 | 9.8 | |||||
BIZ5125 | 61 | 127.0 | 134 | 340000 | 3400 | 13.2 | |||||
BIZ5135 | 65 | 135.0 | 143 | 362000 | 3620 | 14.1 | |||||
BIZ640 | 13 | 41.0 | 49 | 144000 | 1440 | 7.2 | |||||
BIZ650 | 17 | 53.0 | 61 | 188000 | 1880 | 8.0 | |||||
BIZ665 | 21 | 65.0 | 73 | 36 | 18 | 3 | 6 | 232000 | 2320 | 10.8 | |
BIZ675 | 25.4 | 25 | 77.0 | 85 | 277000 | 2770 | 12.6 | ||||
BIZ6100 | 33 | 102.0 | 110 | 365000 | 3650 | 16.4 | |||||
BIZ6125 | 41 | 127.0 | 135 | 454000 | 4540 | 20.4 |
