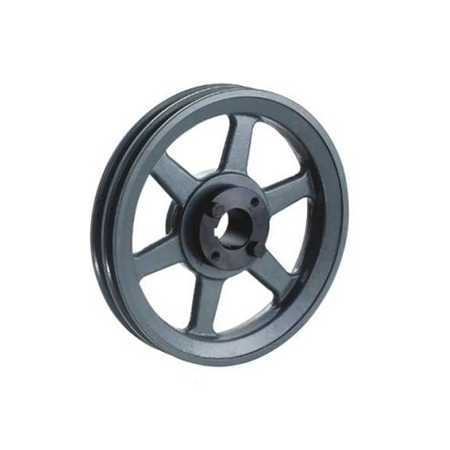

BKH Cast Iron Sheaves with split taper bushing
BKH Cast Iron Sheaves with split taper bushing

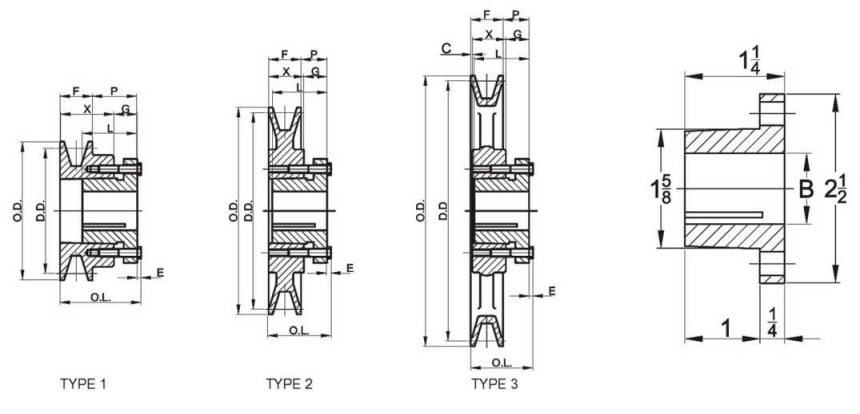

Single Groove Sheaves for “4L” or “A” Belts and “5L” or “B” Belts
| DIAMETERS | DIMENSIONS | Wt. Less Bush | |||||||||||
| Part No. | 〇.D. | Datum
“A” |
Datum “B” | Type | O.L. | F | L | P | C | X | G | E | |
| BK30H | 3.15″ | 2.40″ | 2.80″ | 1 | 1 15/16″ | 7/8″ | 1 1/4″ | 7/8″ | _ | 1 5/16″ | 7/16″ | 3/16″ | 1.2 |
| BK32H | 3.35 | 2.60 | 3.00 | 1 | 1 15/16 | 7/8 | 1 1/4 | 7/8 | — | 1 5/16 | 7/16 | 3/16 | 1.40 |
| BK34H | 3.55 | 2.80 | 3.20 | 1 | 1 15/16 | 7/8 | 1 1/4 | 7/8 | 一 | 1 5/16 | 7/16 | 3/16 | 1.60 |
| BK36H | 3.75 | 3.00 | 3.40 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8″ | 7/16 | 3/16 | 1.20 |
| BK40H | 3.95 | 3.20 | 3.60 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 1.40 |
| BK45H | 4.25 | 3.50 | 3.90 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | 7/8 | 7/16 | 3/16 | 1.80 | |
| BK47H | 4.45 | 3.70 | 4.10 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | _ | 7/8 | 7/16 | 3/16 | 2.20 |
BK50H |
4.75 | 4.00 | 4.40 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.00 |
| BK52H | 4.95 | 4.20 | 4.60 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.10 |
| BK55H | 5.25 | 4.50 | 4.90 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.70 |
| BK57H | 5.45 | 4.70 | 5.10 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | 7/8 | 7/16 | 3/16 | 2.70 | |
| BK60H | 5.75 | 5.00 | 5.40 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | 一 | 7/8 | 7/16 | 3/16 | 2.50 |
| BK62H | 5.95 | 5.20 | 5.60 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.60 |
| BK65H | 6.25 | 5.50 | 5.90 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.80 |
| BK67H | 6.45 | 5.70 | 6.10 | 2 | 1 1/2 | 7/8 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 2.90 |
| BK70H | 6.75 | 6.00 | 6.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 2.80 |
| BK72H | 6.95 | 6.20 | 6.60 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 3.10 |
| BK75H | 7.25 | 6.50 | 6.90 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 3.30 |
| BK77H | 7.45 | 6.70 | 7.10 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 3.80 |
| BK80H | 7.75 | 7.00 | 7.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 3.40 |
BK85H |
8.25 | 7.50 | 7.90 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″
1/16″ |
7/8 | 7/16 | 3/16 | 3.80 |
| BK90H | 8.75 | 8.00 | 8.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 4.30 |
| BK95H | 9.25 | 8.50 | 8.90 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 5.00 |
| BK100H | 9.75 | 9.00 | 9.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 5.20 |
| BK105H | 10.25 | 9.50 | 9.90 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 5.50 |
| BK110H | 10.75 | 10.00 | 10.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 6.00 |
| BK115H | 11.25 | 10.50 | 10.90 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″
1/16″ |
7/8 | 7/16 | 3/16 | 6.40 |
| BK120H | 11.75 | 11.00 | 11.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 6.90 |
| BK130H | 12.75 | 12.00 | 12.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 6.90 |
| BK140H | 13.75 | 13.00 | 13.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 8.50 |
| BK150H | 14.75 | 14.00 | 14.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 9.50 |
| BK160H | 15.75 | 15.00 | 15.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 9.80 |
| BK190H | 18.75 | 18.00 | 18.40 | 3 | 1 9/16 | 7/8 | 1 1/4 | 1/2 | 1/16″ | 7/8 | 7/16 | 3/16 | 12.80 |
2BKH Cast Iron Sheaves(BKH Cast Iron Sheaves with split taper bushing)

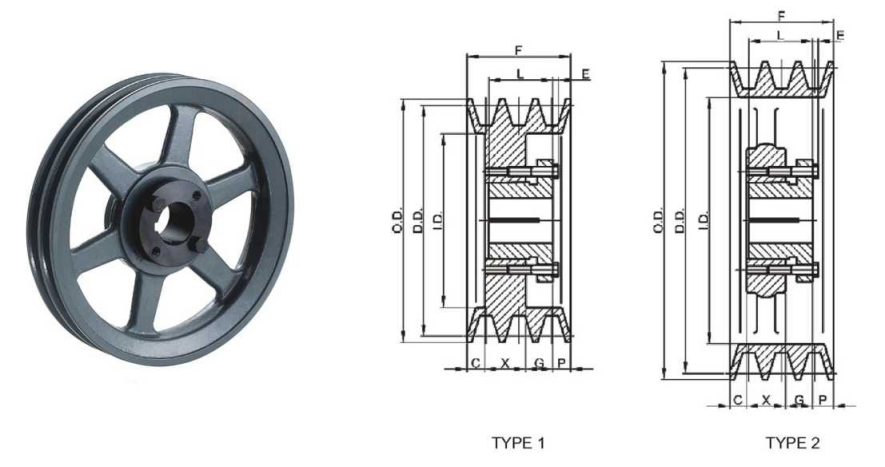

Two Groove Sheaves for “4L” or “A” elts “5L” or “B” Belts
| Part No. | DIAMETERS | Type | DIMENSIONS | Wt. Less Bush | |||||||||
| 〇.D. | Datum
“A” |
Datum
“B” |
O.L. | F | L | P | C | X | G | E | |||
| 2BK32H | 3.35″ | 2.60″ | 3.00″ | 1 | 2 13/16″ | 1 3/4″ | 1 1/4″ | 7/8″ | 1 5/16″ | 7/8″ | 7/16″ | 3/16″ | 2.10 |
| 2BK34H | 3.55 | 2.80 | 3.20 | 1 | 2 13/16 | 1 3/4 | 1 1/4 | 7/8 | 1 5/16 | 7/8 | 7/16 | 3/16 | 2.40 |
| 2BK36H | 3.75 | 3.00 | 3.40 | 1 | 2 3/8 | 1 3/4 | 1 1/4 | 7/16 | 7/8 | 7/8 | 7/16 | 3/16 | 2.00 |
| 2BK40H | 3.95 | 3.20 | 3.60 | 1 | 2 3/8 | 1 3/4 | 1 1/4 | 7/16 | 7/8 | 7/8 | 7/16 | 3/16 | 2.40 |
| 2BK45H | 4.25 | 3.50 | 3.90 | 1 | 2 3/8 | 1 3/4 | 1 1/4 | 7/16 | 7/8 | 7/8 | 7/16 | 3/16 | 3.00 |
| 2BK47H | 4.45 | 3.70 | 4.10 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 7/8 | 7/16 | 3/16 | 2.80 | |
| 2BK50H | 4.75 | 4.00 | 4.40 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 3.30 |
| 2BK52H | 4.95 | 4.20 | 4.60 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 3.60 |
| 2BK55H | 5.25 | 4.50 | 4.90 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 3.90 |
2BK57H |
5.45 | 4.70 | 5.10 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | — | 7/8 | 7/16 | 3/16 | 4.30 |
| 2BK60H | 5.75 | 5.00 | 5.40 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 7/8 | 7/16 | 3/16 | 4.40 | |
| 2BK62H | 5.95 | 5.20 | 5.60 | 2 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | _ | 7/8 | 7/16 | 3/16 | 4.50 |
| 2BK65H | 6.25 | 5.50 | 5.90 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 4.50 |
| 2BK67H | 6.45 | 5.70 | 6.10 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 5.00 |
| 2BK70H | 6.75 | 6.00 | 6.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 5.10 |
| 2BK80H | 7.75 | 7.00 | 7.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 6.40 |
| 2BK90H | 8.75 | 8.00 | 8.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 7.60 |
| 2BK100H | 9.75 | 9.00 | 9.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 8.40 |
| 2BK110H | 10.75 | 10.00 | 10.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 9.30 |
| 2BK120H | 11.75 | 11.00 | 11.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 11.00 |
| 2BK130H | 12.75 | 12.00 | 12.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 13.10 |
| 2BK140H | 13.75 | 13.00 | 13.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 14.80 |
| 2BK160H | 15.75 | 15.00 | 15.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 17.50 |
| 2BK190H | 18.75 | 18.00 | 18.40 | 3 | 1 3/4 | 1 3/4 | 1 1/4 | 7/16 | 1/4 | 7/8 | 7/16 | 3/16 | 21.50 |
3BKH Cast Iron Sheaves(BKH Cast Iron Sheaves with split taper bushing)

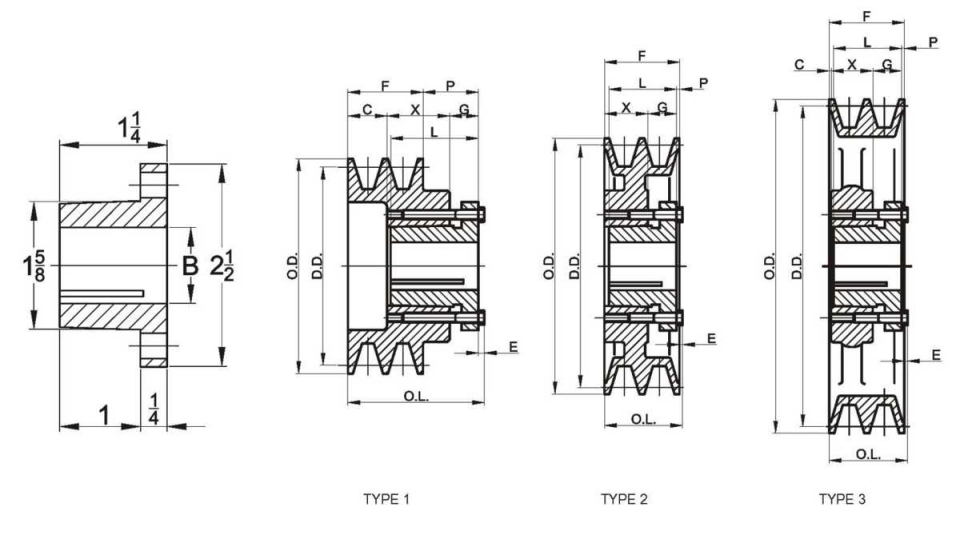

Three Groove Sheaves COMBINATION GROOVE for “4L” or “A”Belts and “5L” or “B” Belts
| Part No. | DIAMETERS | Type | DIMENSIONS | Wt. Less Bush | |||||||||
| Out – side | Datum
“A” |
Datum “B” | Inside | F | L | P | C | X | G | E | |||
| 3BK45H | 4.25″ | 3.5″ | 3.9″ | 2 5/8″ | 2 | 2 1/2″ | 1 1/4″ | 1/2″ | 11/16″ | 7/8″ | 7/16″ | 3/16″ | 3.90 |
| 3BK47H | 4.45 | 3.70 | 4.10 | 2 11/16 | 2 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 4.20 |
| 3BK50H | 4.75 | 4.00 | 4.40 | 3 | 2 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 4.40 |
| 3BK52H | 4.95 | 4.20 | 4.60 | 3 3/16 | 2 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 4.70 |
| 3BK55H | 5.25 | 4.50 | 4.90 | 3 1/2 | 2 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 5.10 |
| 3BK57H | 5.45 | 4.70 | 5.10 | 3 11/16 | 2 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 5.30 |
| 3BK60H | 5.75 | 5.00 | 5.40 | 4 | 3 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 5.60 |
| 3BK62H | 5.95 | 5.20 | 5.60 | 4 3/16 | 3 | 2 1/2 | 1 1/4 | 1/2 | 11/16 | 7/8 | 7/16 | 3/16 | 5.80 |
| 3BK65H | 6.25 | 5.50 | 5.90 | 4 1/2 | 3 | 2 1/2 | 1 1/4 | 29/32 | 9/32 | 7/8 | 7/16 | 3/16 | 5.80 |
3BK67H |
6.45 | 5.70 | 6.10 | 4 11/16 | 3 | 2 1/2 | 1 1/4 | 29/32 | 9/32 | 7/8 | 7/16 | 3/16 | 6.20 |
| 3BK70H | 6.75 | 6.00 | 6.40 | 5 | 3 | 2 1/2 | 1 1/4 | 29/32 | 9/32 | 7/8 | 7/16 | 3/16 | 6.60 |
| 3BK80H | 7.75 | 7.00 | 7.40 | 6 | 3 | 2 1/2 | 1 1/4 | 27/32 | 11/32 | 7/8 | 7/16 | 3/16 | 8.30 |
| 3BK90H | 8.75 | 8.00 | 8.40 | 7 | 3 | 2 1/2 | 1 1/4 | 27/32 | 11/32 | 7/8 | 7/16 | 3/16 | 9.80 |
| 3BK100H | 9.75 | 9.00 | 9.40 | 8 | 3 | 2 1/2 | 1 1/4 | 27/32 | 11/32 | 7/8 | 7/16 | 3/16 | 10.90 |
| 3BK110H | 10.75 | 10.00 | 10.40 | 9 | 3 | 2 1/2 | 1 1/4 | 27/32 | 11/32 | 7/8 | 7/16 | 3/16 | 12.10 |
| 3BK120H | 11.75 | 11.00 | 11.40 | 10 | 3 | 2 1/2 | 1 1/4 | 27/32 | 11/32 | 7/8 | 7/16 | 3/16 | 14.30 |
| 3BK130H | 12.75 | 12.00 | 12.40 | 11 | 3 | 2 1/2 | 1 1/4 | 25/32 | 13/32 | 7/8 | 7/16 | 3/16 | 16.20 |
| 3BK140H | 13.75 | 13.00 | 13.40 | 12 | 3 | 2 1/2 | 1 1/4 | 25/32 | 13/32 | 7/8 | 7/16 | 3/16 | 17.70 |
| 3BK160H | 15.75 | 15.00 | 15.40 | 14 | 3 | 2 1/2 | 1 1/4 | 25/32 | 13/32 | 7/8 | 7/16 | 3/16 | 21.00 |
| 3BK190H | 18.75 | 18.00 | 18.40 | 17 | 3 | 2 1/2 | 1 1/4 | 25/32 | 13/32 | 7/8 | 7/16 | 3/16 | 25.80 |
