Bolts PF Series
Bolts PF Series Material and surface treatments:
1) Low carbon steel Q235A; Coated with rust-proof oil, zinc plating or nickel plating. 2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation. 3) Alternative aluminum 6061; Surface cleaning, or anodizing finish. 4) Alternative medium carbon steel 45; Coated with rust-proof oil, zinc plating or nickel plating. |

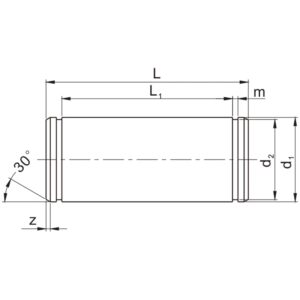

Specification
Part No. | Dimensions | Weight | |||||
d1
h11 |
l
+0.50 0 |
d2
h11 |
l1
+0.20 0 |
z
min |
m
h13 |
Kg/pieces | |
PF6 | 6 | 17.0 | 5.7 | 12.5 | 0.5 | 0.80 | 0.005 |
PF8 | 8 | 20.0 | 7.6 | 16.5 | 0.5 | 0.90 | 0.008 |
PF10 | 10 | 25.0 | 9.6 | 20.5 | 0.5 | 1.10 | 0.015 |
PF12 | 12 | 30.0 | 11.5 | 24.5 | 1.0 | 1.10 | 0.026 |
PF14 | 14 | 35.0 | 13.4 | 27.5 | 1.0 | 1.10 | 0.042 |
PF16 | 16 | 39.0 | 15.2 | 32.5 | 1.0 | 1.10 | 0.061 |
PF20 | 20 | 48.0 | 19.0 | 40.5 | 1.0 | 1.30 | 0.118 |
PF25 | 25 | 60.0 | 23.9 | 50.5 | 1.0 | 1.30 | 0.230 |
PF30 | 30 | 65.0 | 28.6 | 55.5 | 1.0 | 1.60 | 0.350 |
PF35 | 35 | 84.0 | 33.4 | 70.5 | 1.0 | 1.60 | 0.820 |
PF40 | 40 | 104.3 | 37.5 | 89.0 | 2.0 | 1.85 | 1.020 |
PF42 | 42 | 104.3 | 39.5 | 89.0 | 2.0 | 1.85 | 1.100 |
PF50 | 50 | 117.3 | 47.0 | 100.0 | 2.0 | 2.15 | 1.720 |
