Bolts PM Series
Bolts PM Series Material and surface treatments:
1) Low carbon steel Q235A; Coated with rust-proof oil, zinc plating or nickel plating. 2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation. 3) Alternative aluminum 6061; Surface cleaning, or anodizing finish. 4) Alternative medium carbon steel 45; Coated with rust-proof oil, zinc plating or nickel plating. |

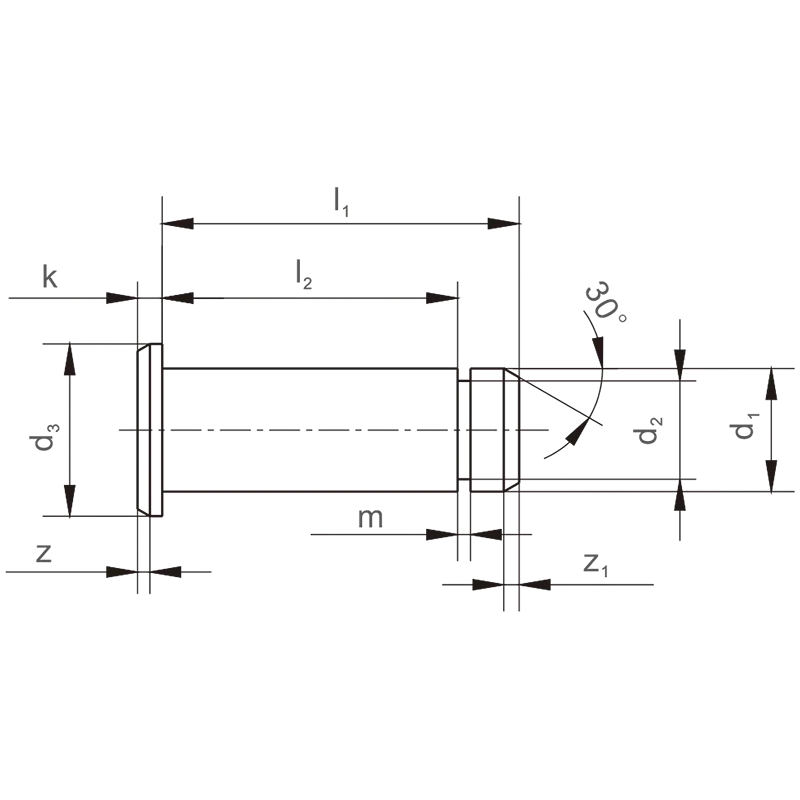

Part No. | Suitable | Dimensions | Weight | |||||||||
PM-K | PM-S | d1
h11 |
d3
h14 |
l1
js15 |
l2
+0.3 |
k
js14 |
d2
-0.2 |
m
+0.1 |
Z | Z1 | Kg/100 pieces | |
PM 4 | 4 | 4 | 4 | 6 | 10.5 | 8.5 | 1.0 | 3.2 | 0.64 | 0.5 | 0.50 | 0.12 |
PM 5 | 5 | 5 | 5 | 8 | 13.0 | 10.5 | 1.5 | 4.0 | 0.74 | 0.5 | 0.50 | 0.24 |
PM 6 | 6 | 6 | 6 | 9 | 15.5 | 12.5 | 1.5 | 5.0 | 0.74 | 0.5 | 0.75 | 0.42 |
PM 8 | 8 | 8 | 8 | 12 | 20.0 | 16.5 | 2.0 | 6.0 | 0.94 | 1.0 | 1.00 | 0.90 |
PM 10 | 10 | 10 | 10 | 14 | 25.0 | 20.5 | 2.0 | 8.0 | 1.05 | 1.0 | 1.00 | 1.70 |
PM 12 | 12 | 12 | 12 | 17 | 30.0 | 24.5 | 3.0 | 9.0 | 1.15 | 1.5 | 1.25 | 2.95 |
PM 14 | 14 | 14 | 14 | 20 | 33.0 | 27.5 | 2.5 | 10.0 | 1.25 | 1.5 | 1.25 | 4.10 |
PM 16 | 16 | 16 | 16 | 20 | 38.5 | 32.5 | 3.5 | 12.0 | 1.35 | 1.5 | 1.50 | 6.20 |
PM 18 | 16 | — | 18 | 25 | 42.0 | 36.5 | 3.5 | 13.0 | 1.35 | 2.0 | 1.50 | 8.95 |
PM 20 | 24 | — | 20 | 28 | 46.0 | 40.5 | 4.0 | 17.5 | 1.80 | 2.0 | 1.50 | 12.1 |
PM 25 | 24 | — | 25 | 34 | 57.0 | 50.5 | 5.5 | 18.0 | 1.80 | 2.0 | 1.50 | 23.1 |
