Bonfiglioli Planetary Gearbox Reducer In-line Replacement 300L Series 300L1 300L2 300L3 300L4
The 300L series planetary gearbox has high overhang and axial load capacity due to the heavy tapered roller bearings of the H and P versions. By using spline connections instead of some brands’ keyway systems to connect internal parts, high torque density and efficiency can be achieved. The planetary gears are installed on a self centering bracket to ensure the most uniform load distribution between the gear sets.
Bonfiglioli Planetary Gearbox Reducer

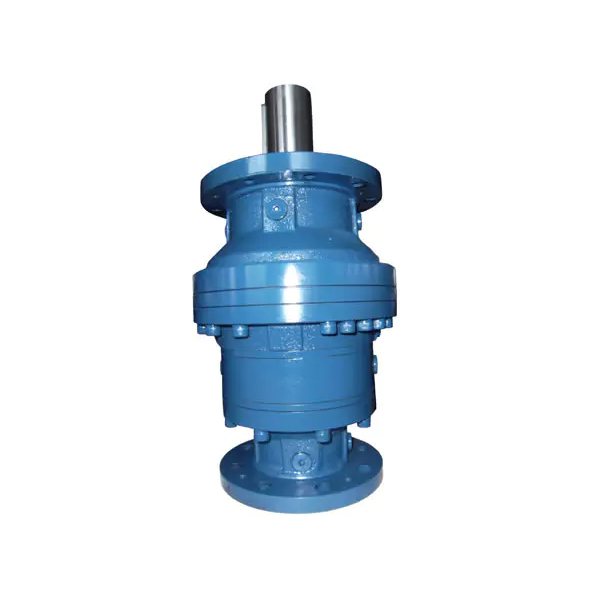

300L Series Planetary Gearbox
Bonfiglioli Planetary Gearbox Reducer , the 300L series includes a series of multi-purpose inline planetary gearboxes.
The 300L series planetary gearbox has high overhang and axial load capacity due to the heavy tapered roller bearings of the H and P versions. By using spline connections instead of some brands’ keyway systems to connect internal parts, high torque density and efficiency can be achieved. The planetary gears are installed on a self centering bracket to ensure the most uniform load distribution between the gear sets.
Output base and flange installation. Output shaft: solid shaft with keys, spline, spline hollow shaft with shrink disc
Input IEC and NEMA motor adapters. Solid input shaft with or without fan cooling – inch or metric size. Suitable for AC compact motors and brake motors. M series IEC motors and brake motors.
Note: Our Planetary gearbox, Wheel drive gearbox, Winch drive gearbox, and Track drive gearbox have installation dimensions that are completely consistent with Trasmital bonfiglioli, and performance parameters that are very similar to Trasmital bonfiglioli gearbox. They can be used as a substitute for Trasmital bonfiglioli products.
Specifications of Planetary Gearbox
|
Torque range |
1,000 … 1,100,000 Nm (8,850 … 9,735,820 in-lb) |
|
Gear ratios |
3.4 … 5,000 |
|
Transmissible Mechanical Power |
up to 1,050 kW |
|
Brake options |
hydraulic brake Hydraulically released parking brake available on request Electric brake DC and AC type |
|
Output |
Foot and flange mounted Output shaft: solid with key, splined, splined hollow, hollow with shrink disc |
|
Input |
Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and NEMA motor adapters Solid input shaft |
|
Applicable motors |
Piston hydraulic motors Hydraulic orbit motors Electric motors IEC |
300L Series Planetary Reducer Lubricant Charge Quantity
| Mounting position | |||
| A | T | O | |
| 300L1 | 0.6 | 1.0 | 1.9 |
| 300L2 | 0.9 | 1.3 | 1.2 |
| 300L3 | 1.2 | 1.6 | 1.5 |
| 300L4 | 1.5 | 1.9 | 1.8 |
300L Series Planetary Gearbox Application
The flange-mounted planetary gearbox, with its compact form, low backlash, high torsional rigidity, and quiet and effective operations, is an excellent investment for many power transmission as well as motion control applications today. Construction, medical, and conveyor systems, as well as automated machinery such as automatic welding equipment, material handling equipment, food processing machines, robots, and many contemporary transportation applications, may all benefit from their simple attachment and high torque.
| Mobile applications | Industrial and stationary applications |
|
|
China Planetary Gearbox Manufacturer
Power-trans is a professional company engaged in the research and development, design, and manufacturing of gearboxes. The company has successively introduced a batch of high-precision production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gear boxes for construction machinery, special planetary gear boxes for rolling mills, special planetary gear boxes for vertical mills, new generation of small tooth difference planetary gear reducers, new generation of small tooth difference three ring reducers, Double planet reducers, hydraulic slewing, winch series, gear boxes for rolling mills and other series with hundreds of thousands of specifications. The products have been widely used in supporting units and engineering projects in industries such as building materials, metallurgy, engineering machinery, lifting, shipbuilding, chemical, pharmaceutical, and power.
Since its establishment, the company has continuously accelerated the pace of technological innovation and independent brand construction with a new mindset and manufacturing awareness, and created the core competitiveness of the enterprise.
In the development of the enterprise, the company adheres to the development path of “prospering the enterprise through science and technology” and “strengthening the enterprise through science and technology”, and has formulated the Product development strategy of “three high and one special”, that is, high-tech content, high added value, high market capacity, and super large models. In addition to independent research, the company also cooperates extensively with domestic famous academicians, experts, and research institutions of universities to jointly develop and develop high-tech products.
