Bonfiglioli 303R Series Planetary Gearbox Reducer Right Angle Replacement 303R2 303R3 303R4
The 303R series right angle planetary gearbox and gear motor are a full series of modular design planetary gearboxes suitable for industrial applications. It combines high-performance, low-cost, and compact dimensions, excellent reliability, simple installation, and reduced maintenance. Our industrial planetary gearbox comes in multiple sizes to ensure optimal duration and silent operation in various applications. These inline or right angle planetary gearboxes come in both male and female shaft configurations. The outer shaft solution (spline or cylindrical) can withstand strong radial or axial loads on the output shaft.

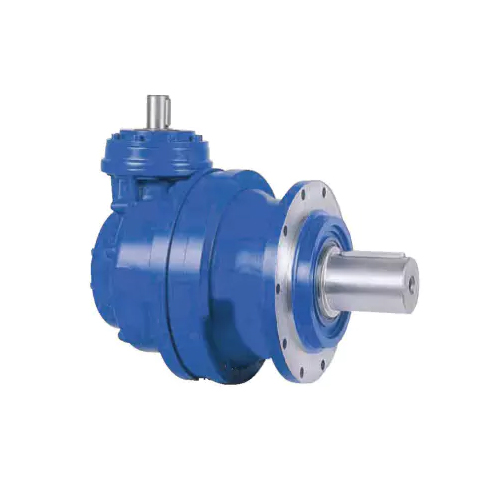

303R Series Planetary Gearbox
The 303R series right angle planetary gearbox and gear motor are a full series of modular design planetary gearboxes suitable for industrial applications. It combines high-performance, low-cost, and compact dimensions, excellent reliability, simple installation, and reduced maintenance. Our industrial planetary gearbox comes in multiple sizes to ensure optimal duration and silent operation in various applications. These inline or right angle planetary gearboxes come in both male and female shaft configurations. The outer shaft solution (spline or cylindrical) can withstand strong radial or axial loads on the output shaft.
Features and Benefits
Features and Benefits- Quiet, efficient, and reliable operation with high torque density and compact size.
- Modular design.
- Interchangeable cast iron housing with base, flange, or surface mounting configuration.
- Universal installation device.
- Available free shaft, sleeve hollow shaft, C-face, shovel base, and top mounted inputs
- The internal components are made of hardened, vacuum degassed, and bearing grade steel.
- Low vibration, low noise, small backlash, and long service life.
- Product Warranty : 12 month warranty guarantees Excellent reputation of the product.
| Torque range | 1000-450.000 Nm |
| Transmissible mechanical power | up to 150 kw |
| Gear ratios | 3.4-9.000 |
| Gear unit versions | right angle |
| Output configurations | 1) Foot and flange mounted 2)Output shaft: solid with key, splined, splined hollow 3)Hollow with shrink disc |
| Input configurations | 1)Flanged axial piston hydraulic motors 2)Hydraulic orbit motors 3)IEC and Nema motor adaptors 4)Solid input shaft |
| Hydraulic brake | hydraulically released parking brake |
| Electnc brake | DC and AC type |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
| Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
 |
 |
 |
 |
| Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
