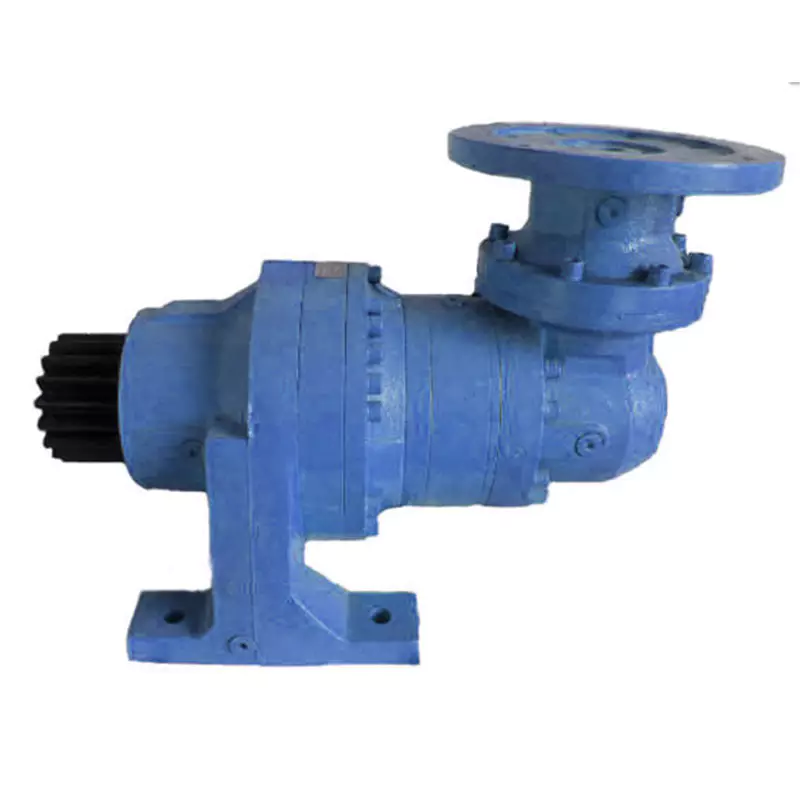

Bonfiglioli 305R Series Planetary Gearbox
Bonfiglioli 305R Series Planetary Gearbox
- Gear Unit Version:in line or right angle
- Output Configuration:Foot and flange mounted
- Output shaft: solid with key, splined, splined hollow, hollow shaft with shrink disc
- Gear Unit Input Configurations: IEC-normalized Motor Adaptors or Solid Input Shaft
- Main Brake Motor Features:
DC and AC brake
Hydraulic Brake:Fast Braking and/or brake releasing through - Mounting dimension is available on request.
- Brake, balance valve, shuttle valve and the distributor which can integrate all kinds of function valve are also available on request.

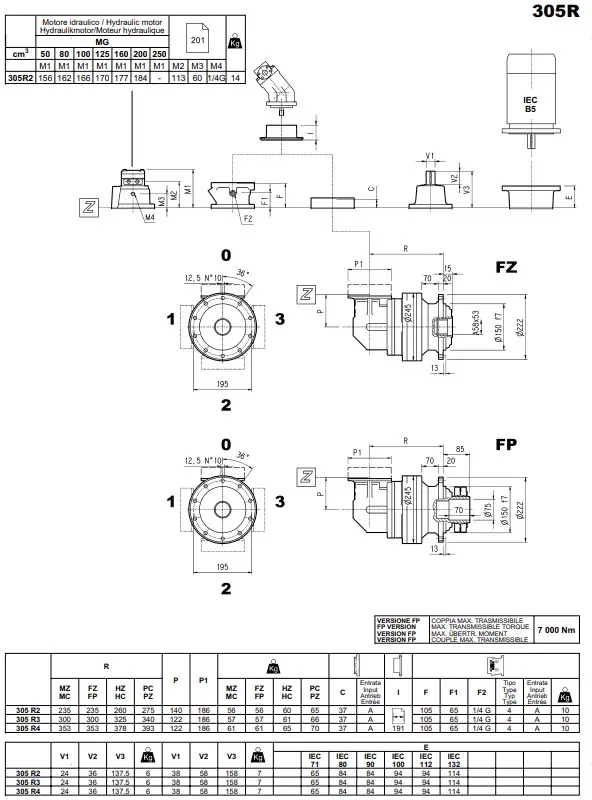

Dimension of 305R Series Planetary Gearbox
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Right angle gear Ratio range |
Ratio range for Combined withworm gear |
Design |
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Meanwhile, we can also design and manufacture planetary gearbox according to your requirements.
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
