Bonfiglioli 306L Series Planetary Gearbox Reducer Replacement 306L1 306L2 306L3 306L4

The planetary transmission provided by us is a modular structure, widely available in three categories, namely base, flange, and shaft installation. In addition, the output shaft also has male and female spline types. The end of the prime mover is roughly divided into solid shafts, which can be connected through sprockets, pulleys, or couplings, or through hollow internal threads. Electric or hydraulic motors installed on flanges can be directly inserted as male and female connectors. Planetary reducers are popular in various industries due to their high efficiency, online structure, high reliability, and sturdy structure.

Description

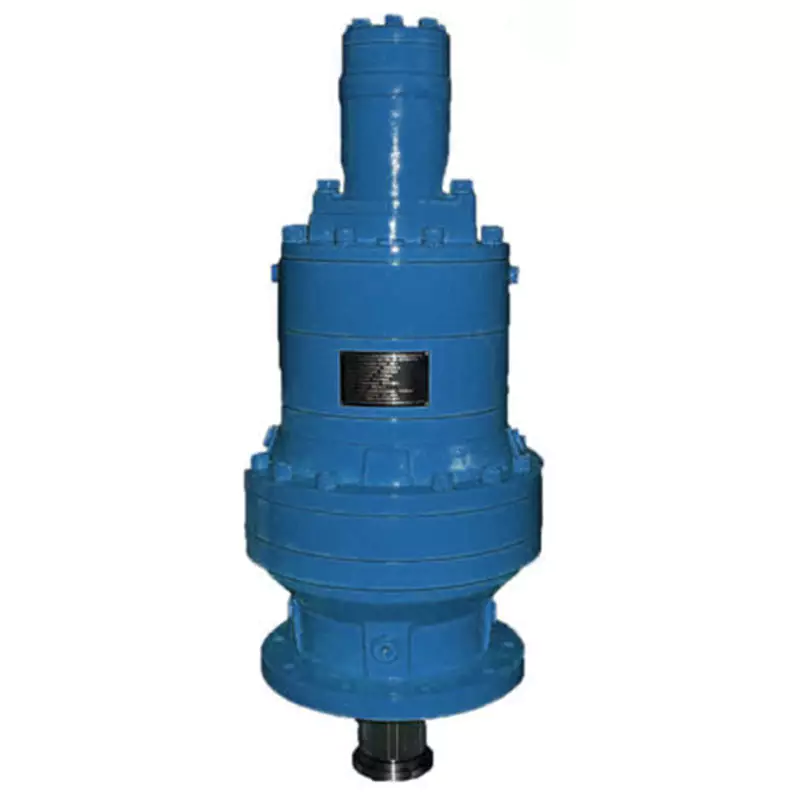

306L Series Planetary Gearbox

The planetary transmission(Bonfiglioli 306L Series Planetary Gearbox) provided by us is a modular structure, widely available in three categories, namely base, flange, and shaft installation. In addition, the output shaft also has male and female spline types. The end of the prime mover is roughly divided into solid shafts, which can be connected through sprockets, pulleys, or couplings, or through hollow internal threads. Electric or hydraulic motors installed on flanges can be directly inserted as male and female connectors. Planetary reducers are popular in various industries due to their high efficiency, online structure, high reliability, and sturdy structure.

The 300 series includes a series of multi-purpose planetary gearboxes that can be operated by hydraulic or electric motors. Basic functions include

20 frame sizes of modular design
output torque up to 1, 286, 700Nm
transmissible power up to 1050 kw
Ratios from 3.4:1 to 5234:1
versions :
in-line with 1 to 4 reductions
right angle ( spiral bevel gear set into first stage ) with 2 to 4 reductions
Cmbinations with:
worm gear unit
bevel-helical gear units
flange, foot and shaft mounting arrangements
slow output shafts: keyed, splined male, splined hollow, shrink disk mounted
Input adaptors for
Ec-normalised electric motors
integral motor for in-line units up to size 307 and for units combined with bevel helical and worm gears
hydraulic motors by major manufacturers and according to SAE J744C
parallel input shafts
gearmotors with:

electric motors IEC

hydraulic orbital motors

Raleted Planetary Gearboxes(Bonfiglioli 306L Series Planetary Gearbox)

You can click on the image to learn about the corresponding related products


Planetary Feed Mixer Gearbox	Tracked Vehicle	Winch Drive	Wheeled Vehicle Drive

Slewing Drive	Wind Turbines Drive	Inline Planetary gearbox	Right Angle Planetary gearbox

Replaceable Planetary Gearbox Models

The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.

The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4

Applications of Planetary Gearbox

Steel Plants
Sugar Plants
Textile Industry
Construction Machinery
Conveyors
Bottling Plants
Cement Plants

Power Plants
Chemical & Pharmacy
Derrick Cranes
Material Handling Equipments
Machine Tools
Paper Industry
Coal Mining
