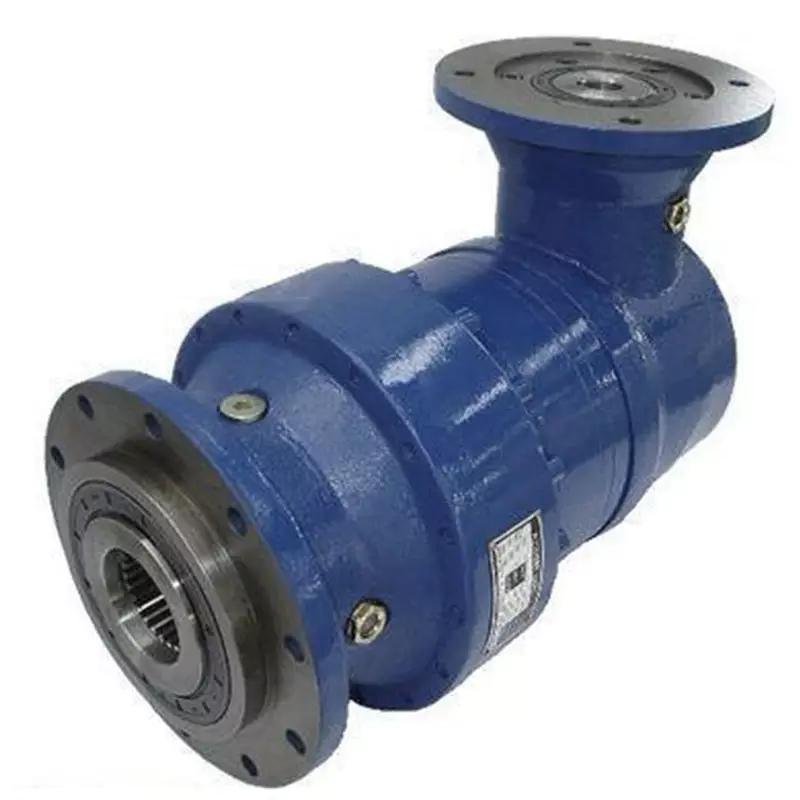

Bonfiglioli 307R Series Planetary Gearbox Reducer Right Angle Replacement 307R2 307R3 307R4
The right angle 307R series planetary gearbox has undergone Case-hardening treatment, and has high transmission efficiency throughout the service life of the equipment. Our company is a first-class manufacturer of planetary gear reducers, and we strive to ensure that every right angle planetary gearbox complies with DNV-1S09001:2008 SGS and CE certification standards, ensuring low noise and smooth operation. They combine excellent performance with low weight, making it easy to operate.
307R Series Planetary Gearbox
The Bonfiglioli right angle 307R series planetary gearbox has under gone Case-hardening treatment, and has high transmission efficiency throughout the service life of the equipment. We’re a first-class manufacturer of planetary gear reducers, and we strive to ensure that every right angle planetary gearbox complies with DNV-1S09001:2008 SGS and CE certification standards, ensuring low noise and smooth operation. They combine excellent performance with low weight, making it easy to operate.
- Modular design, according to customer requirements
- Heavy duty bearings designed for heavy-duty applications
- Hardened gears, long service life, high reliability
- Series model and proportion design, with a wide selection range
- Low speed shaft design
- High strength and impact resistance application of ductile iron shell
Torque range |
1000-540000Nm |
| Mechanical rating（n1=1500min-1） | up to 200kw |
| Gear ratios | 8…36.86 |
| Gear unit versions | right angle with bevel gear set |
| Mounting type | Foot Flange Mounted Torque arm |
| Output shaft options | Solid shaft splined shaft Female splined shaft Hollow shaft with shrink disc |
| Input | IEC Flange Electric motor Solid input shaft with or without fan cooling inch or metric dims |
| Applicable AC motors | Integral motors and brake motors IEC normalized motors and brake motors Single and dual speed motors |
| Main brake features | DC and DC supply Faster brake reation through electronically controlled rectifier |
| Main motor options | Thermistors and thermostat sensors Independent forced cooling Line driver and push-pull incremental encoder |
Raleted Bonfiglioli 307R Series Planetary Gearbox
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
| Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
 |
 |
 |
 |
| Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes are interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are according to Italian and American manufacturers. They are interchangeable with Brevini planetary gearbox ED, ET, EQ, EM, EC. And EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |

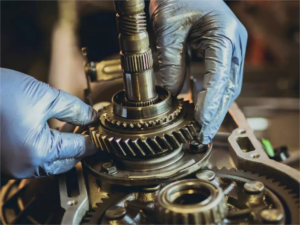

How to Clean and Maintain the Planetary Gearbox ？
First parts
After using the gearbox on this reducer for a period of time, clean and maintain it. Cleaning and maintenance can make the inside cleaner and cleaner, which means that the gears can ensure better operation during operation, achieve better lubrication, minimize friction, and better performance,
Second parts
Second partsThere may be slight wear on the gears inside. It is necessary to check the wear of the gears inside the gearbox. If the wear is within an acceptable range, then the gear can still working. If the wear is already severe, a certain tooth inside needs to replace. After maintenance is complete, add the lubricating oil to the equipment, and the lubricating oil to this equipment has relevant requirements. This lubricating oil should be selected according to the standards in the manual so that a matching lubricating oil can be used to repair this gear. In addition, the lubricating oil inside this gearbox may become contaminated after being used for a period of time, so it is necessary to regularly replace the inner wheel lubricating oil during maintenance.
The last
Another task that needs to be done during maintenance is to inspect the transmission shaft inside the gearbox, because the transmission shaft plays a role in bearing a large amount of load during actual use. After a long time of use, it is necessary to check whether the transmission shaft can still be used normally. During inspection, many aspects need to be examined, For example, if there are obvious scratches or cracks on the external appearance of the transmission shaft inside the inspection, it is possible that the transmission shaft has already been damaged. At this time, further inspection is necessary. If the inspection is not carrying out, the small sliding marks or cracks may become larger and larger, which will affect the overall use of the equipment.
