Bonfiglioli 315R Series Planetary Gearbox Reducer Replacement 315R3 315R4
the manufacturing techniques used to produce the 313R series planetary gearbox are designed to ensure that the gearbox is of high quality and reliability. By using advanced techniques such as CNC machining, heat treatment, and laser marking, We are able to produce gearboxes that meet the high standards required for industrial applications

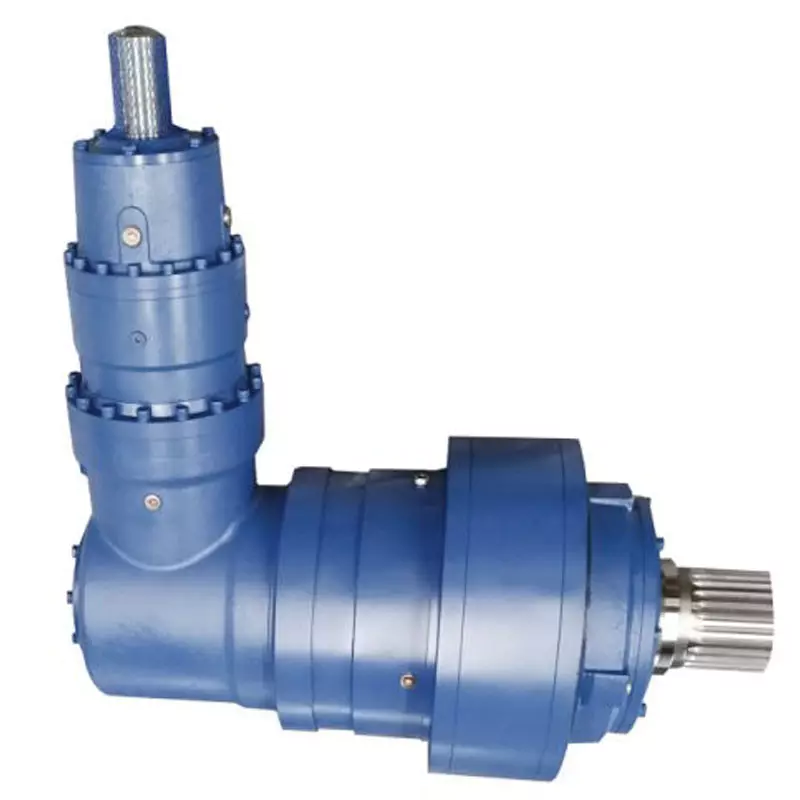

315R Series Planetary Gearbox
The 313R series planetary gearbox is manufactured using advanced techniques to ensure high quality, precision, and reliability. Here are some of the key manufacturing techniques used:
- CNC machining: Computer Numerical Control (CNC) machining is used to produce the gearbox components with high accuracy and precision. This technique involves the use of computer-controlled machines to cut, drill, and shape the parts to exact specifications.
- Heat treatment: The gearbox components are subjected to a heat treatment process to increase their strength and durability. This involves heating the parts to a specific temperature and then cooling them rapidly to create a hard, wear-resistant surface.
- Grinding: The gears and other components are ground to precise tolerances using advanced grinding machines. This ensures that the gears mesh smoothly and accurately, reducing noise and wear.
- Laser marking: The gearbox components are laser marked with part numbers, serial numbers, and other identifying information. This ensures that the components can be easily tracked and identified throughout the manufacturing and assembly process.
- Assembly: The gearbox is assembled using a combination of automated and manual assembly techniques. The components are carefully inspected and tested to ensure that they meet the required specifications and tolerances.
Overall, the manufacturing techniques used to produce the 313R series planetary gearbox are designed to ensure that the gearbox is of high quality and reliability. By using advanced techniques such as CNC machining, heat treatment, and laser marking, We are able to produce gearboxes that meet the high standards required for industrial applications.
300 Series 313R series planetary gearbox
|
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Inline gear Ratio range |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
|
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
|
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
|
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
|
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
|
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
|
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
|
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
|
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
|
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
|
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
| Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
 |
 |
 |
 |
| Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
