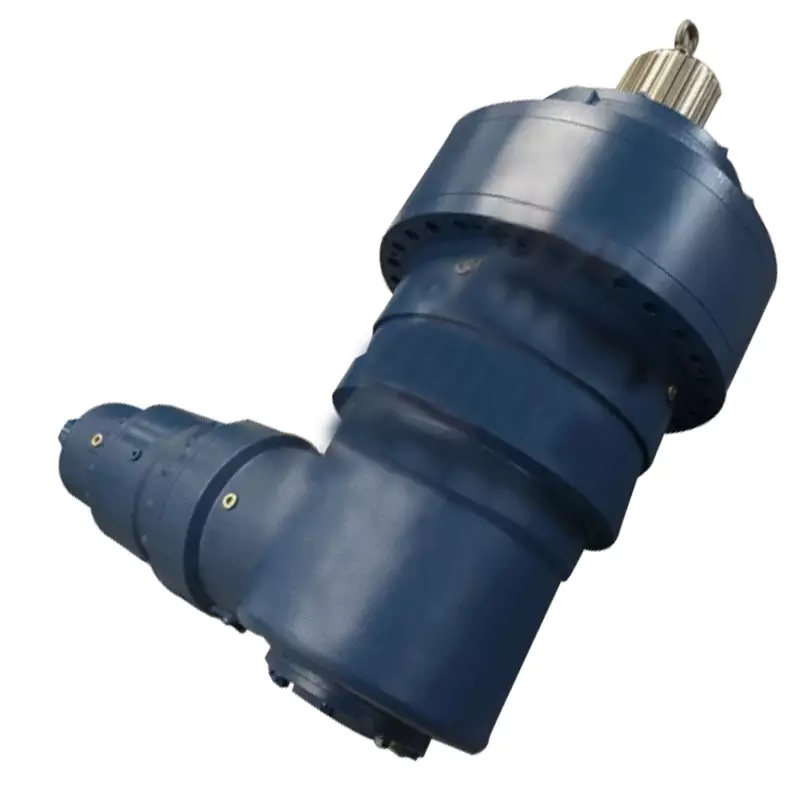

316R Series Planetary Gearbox
Characteristic
1. Optimized design, module combination, right angle output, reduced space
2. High strength and long service life gears
3. Can be combined with various motors, with a wider range of transmission ratios
4. High output torque, smooth starting, and high efficiency
316R Series Planetary Gearbox is an efficient and high-performance mechanical transmission device with a wide range of applications, such as:
Industrial machinery: 316R Series Planetary Gearbox can be used for industrial machinery, such as conveyor belts, mixers, mixers, vibrators, coil machines, etc.
Automation equipment: 316R Series Planetary Gearbox can be used for automation equipment such as robots, automated production lines, automatic packaging machines, etc.
Heavy machinery: 316R Series Planetary Gearbox can be used for heavy machinery such as cranes, excavators, rollers, cement mixer trucks, etc.
Wind power equipment: 316R Series Planetary Gearbox can be used for wind power equipment, such as wind turbines and wind turbines.
Marine engineering: 316R Series Planetary Gearbox can be used in marine engineering, such as offshore drilling platforms, offshore wind farms, etc.
In summary, 316R Series Planetary Gearbox is widely used in various machinery and equipment that require efficient, precise, and reliable transmission.
Technical parameter
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
