Bonfiglioli 318L Series Planetary Gearbox Reducer Replacement 318L1 318L2 318L3 318L4

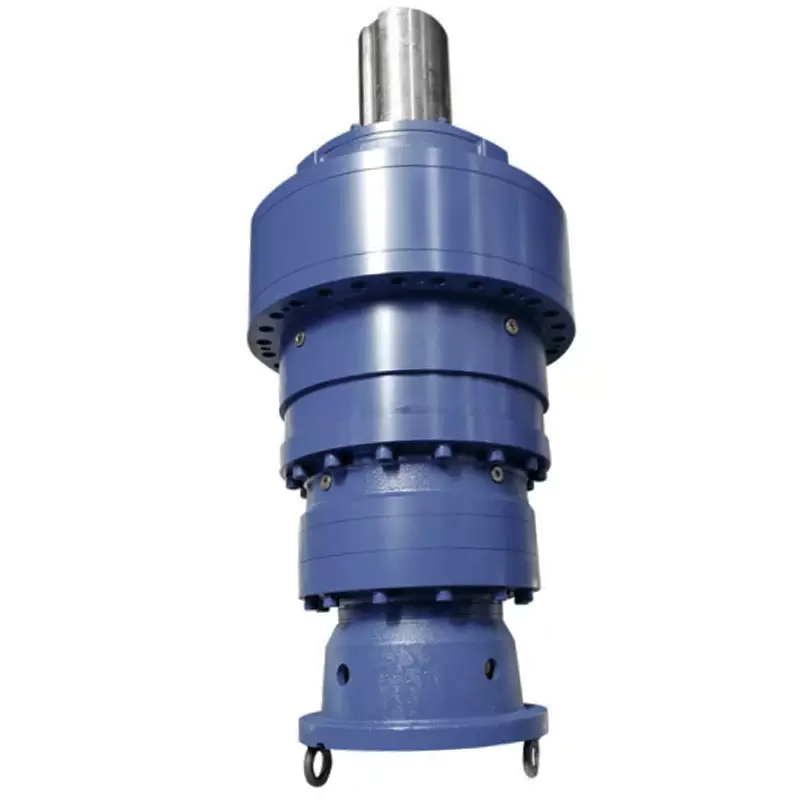

318L Series Planetary Gearbox
Planetary gearboxes are used in a wide range of applications that require high torque density, compact size, and efficient power transmission. Here are some common applications of planetary gearboxes:
- Robotics: Planetary gearboxes are used in robotics for precise motion control and efficient power transmission. They are used in robot arms, grippers, and other robotic mechanisms.
- Industrial machinery: Planetary gearboxes are used in a wide range of industrial machinery, including machine tools, packaging machinery, and conveyor systems. They provide high torque density and efficient power transmission in a compact package.
- Wind turbines: Planetary gearboxes are used in wind turbines to increase the rotational speed of the rotor and generate electricity. They are typically used in the main drive train of the turbine.
- Automotive: Planetary gearboxes are used in automotive applications, including automatic transmissions, differentials, and power steering systems. They provide efficient power transmission and compact size, making them ideal for use in vehicles.
- Aerospace: Planetary gearboxes are used in aerospace applications, including satellite mechanisms, landing gear, and navigation systems. They provide precise motion control and efficient power transmission in a compact package.
- Marine: Planetary gearboxes are used in marine propulsion systems, including inboard and outboard engines, as well as in winches and cranes. They provide high torque density and efficient power transmission in a harsh marine environment.
Overall, the versatility of planetary gearboxes makes them suitable for a wide range of applications that require high torque density, compact size, and efficient power transmission.
Technical Parameter
|
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
|
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
|
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
|
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
|
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
|
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
|
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
|
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
|
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
|
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
|
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
| Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
 |
 |
 |
 |
| Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
