Bonfiglioli 319R Series Planetary Gearbox Reducer Replacement 319R4

Description

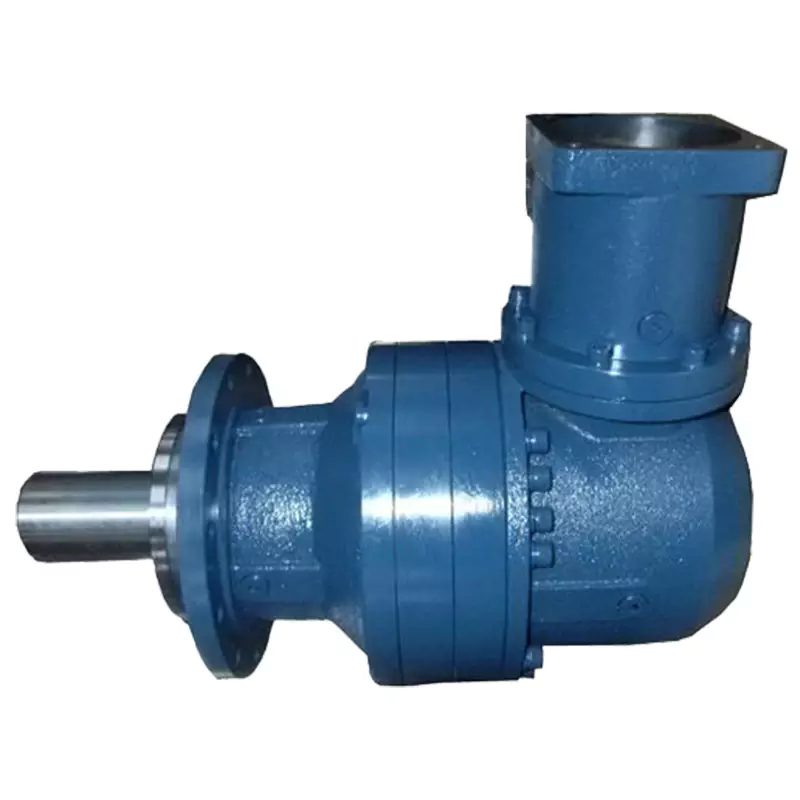

319R Series Planetary Gearbox

Power-trans is a renowned manufacturer and supplier of foot mounted planetary reduction gearboxes, mini planetary gearboxes, flange mounted planetary gearboxes, planetary crawling drives, sugar crystallizer drives, and planetary gear motors.
Our dedicated engineers, with their expertise in the latest power transmission technologies, have helped us become one of the leading planetary gearbox manufacturers. Innovation through extensive research and development work has always been the leading force in producing various efficient and high-performance gearboxes. We have also received strong support from a team of quality inspectors who ensure that we provide perfect products that meet international standards.
We are a leading manufacturer and supplier of high-quality, cost-effective, and energy-saving gearboxes, providing various power transmissions. Our engineers’ experience helps us meet the necessary industry standards. The diligent efforts of our researchers have helped us introduce new features into our products, making them stand out in the market. Our products comply with ISO, DIN, BS, IS standards.
We have a wide range of network systems, which helps us effectively meet the needs of our customers. In addition, it ensures that the product arrives on our customer website within the specified time. Our proactive marketing team is proficient in all industry norms and provides customers with necessary information about our products.

Technical Parameter

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

Raleted Planetary Gearboxes

You can click on the image to learn about the corresponding related products


Planetary Feed Mixer Gearbox	Tracked Vehicle	Winch Drive	Wheeled Vehicle Drive

Slewing Drive	Wind Turbines Drive	Inline Planetary gearbox	Right Angle Planetary gearbox

Replaceable Planetary Gearbox Models

The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.

The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4
