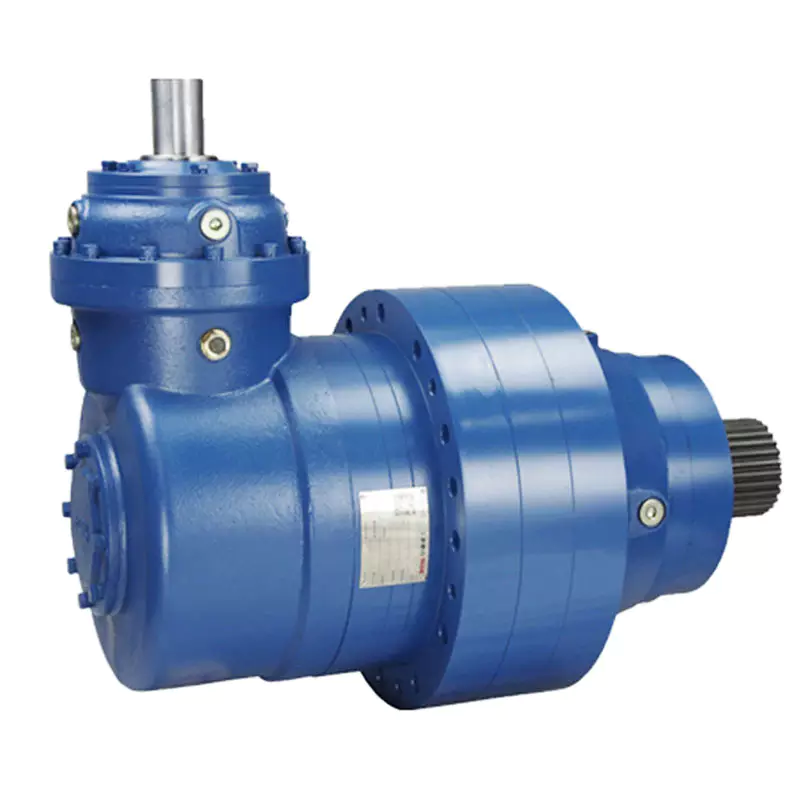

321R Series Planetary Gearbox
The 321R series planetary gearbox is a specific model of planetary gearbox manufactured by a specific manufacturer. It is difficult to provide a detailed comparison without knowing the specific manufacturer and other models of planetary gearboxes. However, the following are some general factors that may vary between different models of planetary gearboxes:
- Size and capacity: Planetary gearboxes come in various sizes and capacities, with different models available for different applications. The size and capacity of the 321R series may differ from other models, which may affect its suitability for specific applications.
- Gear ratio: The gear ratio of a planetary gearbox determines the torque and speed transmitted between the input and output shafts. Different models of planetary gearboxes may have different transmission ratios, which can affect their performance in different applications.
- Tooth clearance: Tooth clearance is the amount of clearance between gears in a gearbox, which affects the accuracy and precision of the gearbox. Different models of planetary gearboxes may have different levels of backlash, which may affect their suitability for specific applications.
- Efficiency: The efficiency of a gearbox determines the amount of power lost due to friction and other factors. Different models of planetary gearboxes may have different efficiency levels, which may affect their applicability for specific applications.
- Materials and Construction: Planetary gearboxes can be made of different materials and constructed in different ways, which may affect their durability and performance. Different models of planetary gearboxes may have different materials and construction methods, which may affect their applicability for specific applications.
Overall, compared to other models of planetary gearboxes, the 321R series planetary gearboxes may have some differences in size, capacity, transmission ratio, backlash, efficiency, material, and structure. It is important to consider these factors when selecting planetary gearboxes for your specific application.
Technical Parameter
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
