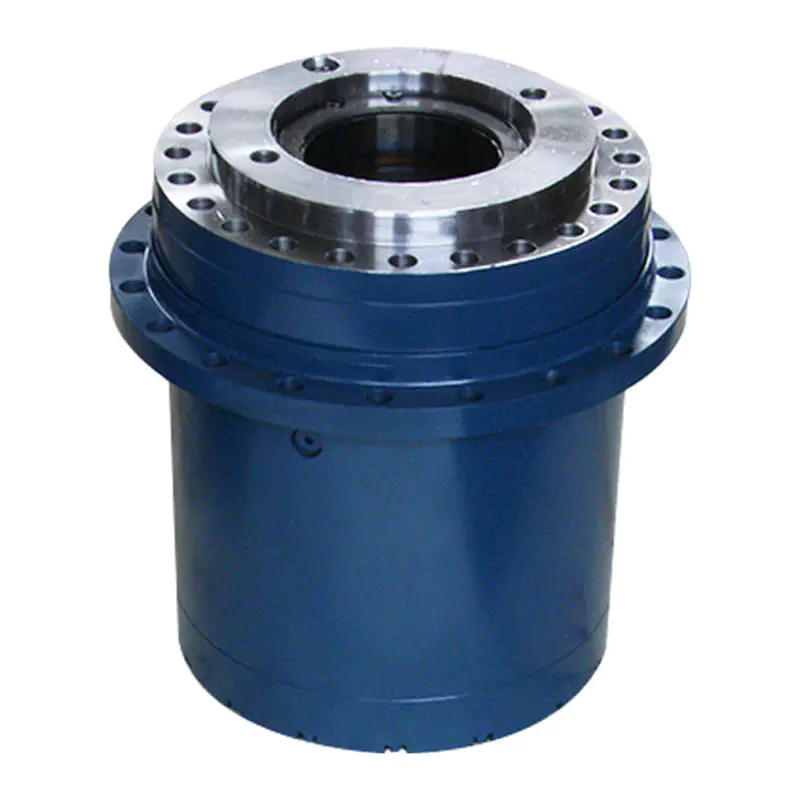

711C Series Track Drive
Key Features
1. Output torque range: 1000-180000 Nm
2 Gear ratios:i=3.3-3000
3. Support: slew support (with flange mounted)
4. Output shaft: splined or with integral pinion; output shafts supported by heavy duty capacity bearings
5. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors, IEC electric motors
6. Hydraulic motor options: pressure relief valve, overcenter valve, parking brake
7. Electric brake: DC and Ac type
8. Hydraulic brake: hydraulically released parking brake
How Track Drive gearbox works?
Track Drive gearbox is a transmission system used for tracked vehicles. Its working principle is to transmit the power of the engine to the vehicle’s tracks, thereby achieving vehicle motion.
The Track Drive gearbox consists of multiple components, including gears, shafts, and hydraulic cylinders. It is usually controlled by a hydraulic system, which adjusts the speed of the vehicle by changing the transmission ratio between gears, thereby achieving operations such as acceleration, deceleration, and steering of the vehicle.
When the engine starts, power is transmitted to the input shaft of the Track Drive gearbox. The gear on the input shaft transfers power to the gear on the output shaft, thereby transferring power to the track. The gear on the output shaft is connected to the gear on the track and drives the track movement through the rotation of the gear.
The hydraulic cylinder is another important component of the Track Drive gearbox, and its function is to adjust the transmission ratio between gears. When a hydraulic cylinder applies pressure in one direction, it changes the transmission ratio between gears, thereby affecting the speed and direction of the vehicle. By controlling the pressure of the hydraulic cylinder, the speed and direction of the vehicle can be easily adjusted.
Overall, the working principle of the Track Drive gearbox is to transmit the power of the engine through gears to the tracks, thereby achieving the movement of the vehicle. The hydraulic system controls the transmission ratio between gears to achieve speed adjustment and vehicle steering operations. This makes Track Drive gearbox an important transmission system in many heavy machinery and equipment.
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
Planetary Feed Mixer Gearbox | Tracked Vehicle | Winch Drive | Wheeled Vehicle Drive |
Slewing Drive | Wind Turbines Drive | Inline Planetary gearbox | Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
Trasmital bonfiglioli Models | 700C1H | 701C1 | 703C2H | 705C2H | 706C3H | 707C3B | 709C3B |
Our Models | Power-trans 700C1H | Power-trans 701C1 | Power-trans 703C2H | Power-trans 705C2H | Power-trans 706C3H | Power-trans 707C3B | Power-trans 709C3B |
Trasmital bonfiglioli Models | 710C3B | 711C3B | 715C3B | 716C3B | 717C3H | 718C3H | 720C3H |
Our Models | Power-trans 710C3B | Power-trans 711C3B | Power-trans 715C3B | Power-trans 716C3B | Power-trans 717C3H | Power-trans 718C3H | Power-trans 720C3H |
