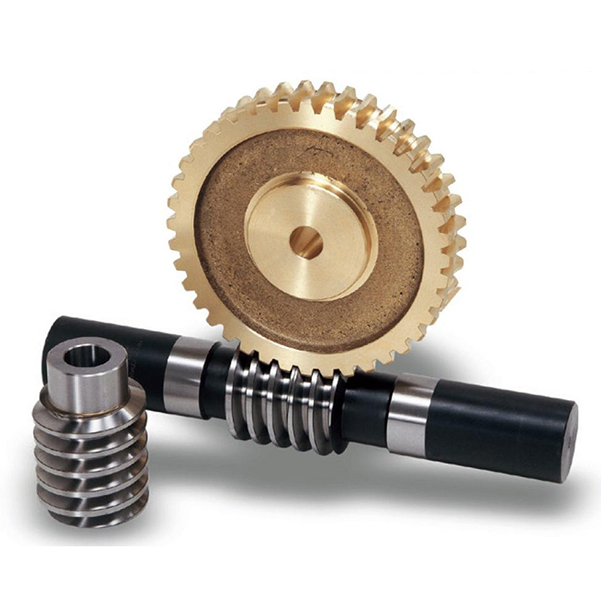

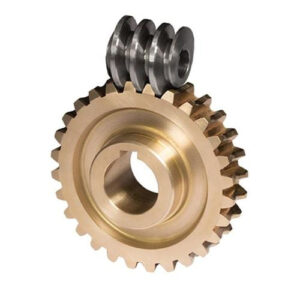

Brass Worm Wheel
The combination of a worm wheel and worm are the components of a worm gear. A worm gear is a staggering shaft gear that creates motion between shafts using threads cut into a cylindrical bar to provide speed reduction. Speed reduction is determined by the number of worm threads and the number of teeth on the worm wheel.
Brass Worm Wheel Description
| Brass Worm Wheel Specifications | |
|---|---|
| Material | Brass |
| Color | Yellow |
| Modulus | 0.5 |
| Weight | 16g |
| Size of the worm wheel | |
|---|---|
| Teeth | 20 |
| Teeth Dia | 11.2mm |
| Height | 12mm/0.47inch |
| Outer Diameter | 11mm/0.43inch |
| Hole Diameter | 4mm/0.16inch |
| Step Size | 9x7mm/0.35×0.27inch ( Dia x H) |
| Overall Size | 12x11x4mm/0.47×0.39×0.12inch( H x OD x ID) |
| Size of worm gear shaft | |
|---|---|
| Height | 20mm/0.79inch |
| Outer Diameter | 9.8mm/0.39inch |
| Inner Diameter | 3.17mm/0.12inch |
| Size | 20×9.8×3.17mm/0.79×0.39×0.12inch( H x OD x ID) |
Brass Worm Wheel Features:
- Include one 0.5 modulus brass worm gear shaft and one 20 teeth brass worm gear wheel.
- The transmission structure of the worm shaft is simple, compact, small volume, and lightweight.
- Worm Shaft Z1=1, turn a round of worm gear teeth, can get a large transmission ratio, generally in the power transmission, the transmission ratio I=10-80, like big transmission ratio, if used with gear transmission, will need to take the multi-stage message.
- High-quality material selection and carefully processing create a high-quality product.
- Made of brass, long-time service.
