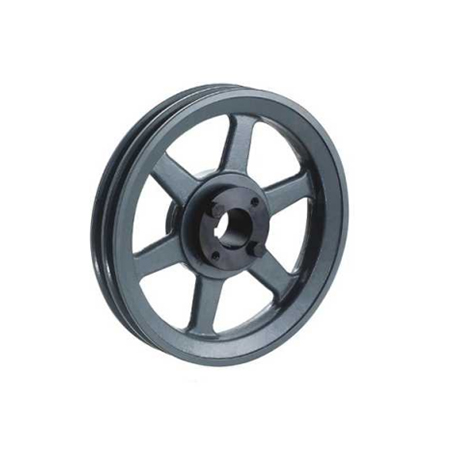

C Gripbelt Sheaves with Split Taper Bushings

Category:
Description

C Series Gripbelt Sheaves with Split Taper Bushings

Table No.1

Bushing Dimensions
Part

No.

 Dimensions Bore Range wt.

Lbs.
M L G X E T u D H
P1 2 3/16″ 1 15/16″ 5/8″ 1 5/16″ 1/4″ 1 17/32″ 13/32″ 1 15/16″ 3″ 1/2″—1 3/4″ 1 1/4
P2 3 3/16 2 15/16 5/8 2 5/16 1/4 2 17/32 13/32 1 15/16 3 3/4 — 1 3/4 1 1/2
Q1 2 25/32 2 1/2 3/4 1 3/4 9/32 1 31/32 17/32 2 7/8 4 1/8 3/4 —2 11/16 3 1/2
Q2 3 25/32 3 1/2 3/4 2 3/4 9/32 2 31/32 17/32 2 7/8 4 1/8 1—2 5/8 4 1/2
Q3 5 9/32 5 3/4 4 1/4 9/32 4 15/32 17/32 2 7/8 4 1/8 1 3/8—2 1/2 5 1/2
R1 3 5/32 2 7/8 7/8 2 9/32 2 1/4 5/8 4 5 3/8 1 1/8—3 3/4 7 1/2
R2 5 5/32 4 7/8 7/8 4 9/32 4 1/4 5/8 4 5 3/8 1 3/8 —3 5/8 11
S1 4 3/4 4 3/8 1 1/16 3 5/16 3/8 3 5/8 3/4 4 5/8 6 3/8 1 11/16—4 1/4 13 1/2
S2 7 1/8 6 3/4 1 1/16 5 11/16 3/8 6 3/4 4 5/8 6 3/8 1 7/8—4 3/16 19
UO 5 23/32 5 1/4 1 1/2 3 3/4 15/32 4 3/16 1 1/16 6 8 3/8 2 3/8 —3 3/16 30
UO 5 13/32 4 15/16 1 3/16 3 3/4 15/32 4 3/16 3/4 6 8 3/8 3 1/4—5 1/2 27
Table 2
Bore Range Keyseat
1/2″ _ 9/16″ 1/8″ x 1/16″
5/8 — 7/8 3/16 x 3/32
15/16 — 1 1/4 1/4 x 1/8
1 5/16 — 1 3/8 5/16×5/32
1 7/16 — 1 3/4 3/8×3/16
1 13/16 —2 1/4 1/2 x 1/4
2 5/16 — 2 3/4 5/8×5/16
2 13/16 —3 1/4 3/4 x 3/8
3 3/8 — 3 3/4 7/8×7/16
3 7/8 — 4 1/2 1×1/2
4 5/8 — 5 1/2 1 1/4 x 5/8

C Series Gripbelt Sheaves

DIAMETERS Part Number Type Dimensions(lnches) Wt.(lbs)

less

Bush.
Datum Outside Inside Sheave Bushing 〇L L P C H G X E
1 GROOVE，F = 1 1/4″ 2 GROC VES, F = 2 1 /4″ 3 GROOVES, F = 3 1/4” 4 GROOVES, F = 4 1/4′
5.6″

6

 6.00″

6.40

 一 1C56P

1C60Q

 P1

Q1

 10

10

 2 3/16″ 2 25/32 1 15/16″ 2 1/2 5/8″

3/4

 1/16″

1/2

 3″

4 1/8

 一 一 1/4″

9/32

 6.0

6.1
Table No. 1
5.6 6.00 3 13/16″ 2C56P P1 13-Web 2 1/2″ 1 15/16″ 0 5/16″ 3″ 5/8″ 1 5/16″ 1/4″ 8.4
6.0 6.40 4 1/4 2C60Q Q1 13-Web 2 25/32 2 1/2 1/4 0 4 1/8 3/4 1 3/4 9/32 9.5
14.0 14.40 12 1/4 2C140R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 33.5
18.0 18.40 16 1/4 2C180R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 42.3
27.0 27.40 25 1/4 2C270R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 77.0
30.0 30.40 28 1/8 2C300R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 93.0
36.0 36.40 34 1/8 2C360R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 117.0
44.0 44.40 42 1/8 2C440R R1 13-Arm 3 9/32 2 7/8 3/4 1/8 5 3/8 7/8 2 9/32 164.0
Table No. 2
5.0″ 5.40″ — 3C50Q Q1 13-Sol 4 9/32″ 2 1/2″ 3/4″ 1 1/2″ 4 1/8″ 3/4″ 1 3/4″ 9/32″ 8.4
5.6 6.00 3 13/16 3C56P P2 13-Web 3 1/2 2 15/16 0 5/16 3 5/8 2 5/16 1/4 12.90
6.0 6.40 4 1/4 3C60Q Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 11.8
9.0 9.40 7 3/16 3C90R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 27.3
9.2 9.60 7 3/8 3C92R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 27.5
9.4 9.80 7 5/8 3C94R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 26.9
9.6 10.00 7 13/16 3C96R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 28.4
9.8 10.20 8 3C98R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 29.3
10.0 10.40 8 3/16 3C100R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 29.0
10.2 10.60 8 3/8 3C102R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 31.4
10.6 11.00 8 13/16 3C106R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 31.8
11.0 11.40 9 1/4 3C110R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 29.3
12.0 12.40 10 1/4 3C120R R1 13-Web 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 36.9
13.0 13.40 11 1/4 3C130R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 34.8
14.0 14.40 12 1/4 3C140R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 39.4
15.0 15.40 13 1/4 3C150R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 43.8
16.0 16.40 14 1/4 3C160R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 47.0
18.0 18.40 16 1/4 3C180R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 51.5
20.0 20.40 18 1/4 3C200R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 58.0
24.0 24.40 22 1/4 3C240R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 71.0
27.0 27.40 25 1/4 3C270R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 92.0
30.0 30.40 28 1/8 3C300R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 110.0
36.0 36.40 34 1/8 3C360R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 135.0
44.0 44.40 42 1/8 3C440R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 196.0
50.0 50.40 48 1/8 3C500R R1 13-Arm 3 25/32 2 7/8 1/4 5/8 5 3/8 7/8 2 9/32 213.0
50.0 50.40 48 1/8 3C500S S1 16-Arm 4 3/4 4 3/8 1 3/32 1/32 6 3/8 1 1/16 3 5/16 3/8 224.0
Table No. 3
5.0 5.40 — 4C50Q Q2 13-Sol 5 9/32 3 1/2″ 3/4″ 1 1/2″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 10.9
5.6 6.00 3 13/16 4C56P P2 13-Web 4 1/2 2 15/16 0 1 5/16 3 5/8 2 5/16 1/4 15.4
6.0 6.40 4 1/4 4C60Q Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 17.0
9.0 9.40 7 3/16 4C90R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 30.0
9.2 9.60 7 3/8 4C92R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 31.6
9.4 9.80 7 5/8 4C94R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 31.6
9.6 10.00 7 13/16 4C96R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 31.1
9.8 10.20 8 4C98R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 33.4
10.0 10.40 8 3/16 4C100R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 34.1
10.2 10.60 8 3/8 4C102R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 36.5
10.6 11.00 8 13/16 4C106R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 36.5
11.0 11.40 9 1/4 4C110R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 33.0
12.0 12.40 10 1/4 4C120R R1 15-Web 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 42.9
13.0 13.40 11 1/4 4C130R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 40.1
14.0 14.40 12 1/4 4C140R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 46.6
15.0 15.40 13 1/4 4C150R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 52.0
16.0 16.40 14 1/4 4C160R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 55.0
18.0 18.40 16 1/4 4C180R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 60.0
18.0 18.40 16 1/4 4C180S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 92.0
20.0 20.40 18 1/4 4C200R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 69.0
20.0 20.40 18 1/4 4C200S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 103.0
24.0 24.40 22 1/4 4C240R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 86.0
24.0 24.40 22 1/4 4C240S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 120.0
27.0 27.40 25 1/4 4C270R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 110.0
27.0 27.40 25 1/4 4C270S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 123.0
30.0 30.40 28 1/8 4C300R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 123.0
30.0 30.40 28 1/8 4C300S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 142.0
36.0 36.40 34 1/8 4C360R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 156.0
36.0 36.40 34 1/8 4C360S S1 13-Arm 5 7/32 4 3/8 19/32 15/32 6 3/8 1 1/16 3 5/16 3/8 183.0
44.0 44.40 42 1/8 4C440R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 218.0
44.0 44.40 42 1/8 4C440U UO 13-Arm 5 13/32 4 15/16 15/16 1/4 8 3/8 1 3/16 3 3/4 15/32 241.0
50.0 50.40 48 1/8 4C500R R1 15-Arm 4 9/32 2 7/8 1/4 1 1/8 5 3/8 7/8 2 9/32 240.0
50.0 50.40 48 1/8 4C500U UO 13-Arm 5 13/32 4 15/16 15/16 1/4 8 3/8 1 3/16 3 3/4 15/32 283.0

C Series Gripbelt Sheaves with Split Taper Bushings

Table No. 1

Specifications一Stock “C” Sheaves

Diameters Part Number Type Dimensions(lnches) Wt.less
Datum Outside Inside Sheave Bushing O.L. L P C H G X E Bush.
5 GROOVES, F = 5 1/4″ 6 GROOV ES,F = 6 1/4″ 7 GROOVES, F = 7 1/4″
9.0″ 9.40″ 7 3/16″ 5C90R R1 15-Web 5 1/4″ 2 7/8″ 3/4″ 15/8″ 5 3/8″ 7/8″ 2″ 9/32″ 33.4
9.2 9.60 7 3/8 5C92R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 36.8
9.4 9.80 7 5/8 5C94R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 35.8
9.6 10.00 7 13/16 5C96R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 35.4
9.8 10.20 8 5C98R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 37.6
10.0 10.40 8 3/16 5C100R R1 15-Web 51/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 38.9
10.2 10.60 8 3/8 5C102R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 40.6
10.6 11.00 8 13/16 5C106R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 39.0
11.0 11.40 9 1/4 5C110R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 38.8
12.0 12.40 10 1/4 5C120R R1 15-Web 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 47.5
13.0 13.40 11 1/4 5C130R R1 15-Arm 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 46.0
14.0 14.40 12 1/4 5C140R R1 15-Arm 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 52.0
15.0 15.40 13 1/4 5C150R R1 15-Arm 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 54.0
16.0 16.40 14 1/4 5C160R R1 15-Arm 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 63.0
18.0 18.40 16 1/4 5C180R R1 15-Arm 5 1/4 2 7/8 3/4 1 5/8 5 3/8 7/8 2 9/32 69.0
18.0 18.40 16 1/4 5C180S S1 13-Arm 5 23/32 4 3/8 3/32 31/32 6 3/8 1 1/16 3 5/16 3/8 100
20.0 20.40 18 1/4 5C200R R1 15-Arm 51/4 2 7/8 3/4 5/8 5 3/8 7/8 2 9/32 77.0
20.0 20.40 18 1/4 5C200S S1 13-Arm 5 23/32 4 3/8 3/32 31/32 6 3/8 1 1/16 3 5/16 3/8 99.0
24.0 24.40 22 1/4 5C240R R1 15-Arm 51/4 2 7/8 3/4 5/8 5 3/8 7/8 2 9/32 110
24.0 24.40 22 1/4 5C240S S1 13-Arm 5 23/32 4 3/8 3/32 31/32 6 3/8 1 1/16 3 5/16 3/8 129
27.0 27.40 251/4 5C270R R2 13-Arm 5 25/32 4 7/8 1/4 5/8 5 3/8 7/8 4 9/32 131
30.0 30.40 28 1/8 5C300R R2 13-Arm 5 25/32 4 7/8 1/4 5/8 5 3/8 7/8 4 9/32 150
30.0 30.40 28 1/8 5C300S S1 13-Arm 5 23/32 4 3/8 3/32 31/32 6 3/8 1 1/16 3 5/16 3/8 160
36.0 36.40 34 1/8 5C360R R2 13-Arm 5 25/32 4 7/8 1/4 5/8 5 3/8 7/8 4 9/32 194
44.0 44.40 42 1/8 5C440R R2 13-Arm 5 25/32 4 7/8 1/4 5/8 5 3/8 7/8 4 9/32 243
50.0 50.40 48 1/8 5C500R R2 13-Arm 5 25/32 4 7/8 1/4 5/8 5 3/8 7/8 4 9/32 273
Table No. 2
9.0″ 9.40″ 7 3/16″ 6C90R R2 15-Web 6 9/32″ 4 7/8″ 1/4″ 1 1/8″ 5 3/8″ 7/8″ 4″ 9/32″ 53.0
9.2 9.60 7 3/8 6C92R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 58.0
9.4 9.80 7 5/8 6C94R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 63.5
9.6 10.00 7 13/16 6C96R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 55.0
9.8 10.20 8 6C98R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 65.0
10.0 10.40 8 3/16 6C100R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 62.0
10.2 10.60 8 3/8 6C102R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 68.0
10.6 11.00 8 13/16 6C106R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 55.0
11.0 11.40 9 1/4 6C110R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 51.5
12.0 12.40 10 1/4 6C120R R2 15-Web 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 64.0
13.0 13.40 11 1/4 6C130R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 61.0
14.0 14.40 12 1/4 6C140R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 69.0
15.0 15.40 13 1/4 6C150R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 68.0
16.0 16.40 14 1/4 6C160R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 77.0
18.0 18.40 16 1/4 6C180R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 84.0
18.0 18.40 16 1/4 6C180S S1 15-Arm 6 1/4 4 3/8 13/32 1 15/32 6 3/8 1 1/16 3 5/16 3/8 107
20.0 20.40 18 1/4 6C200R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 91.5
20.0 20.40 18 1/4 6C200S S1 15-Arm 6 1/4 4 3/8 13/32 1 15/32 6 3/8 1 1/16 3 5/16 3/8 127
24.0 24.40 221/4 6C240R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 116
24.0 24.40 22 1/4 6C240S S1 15-Arm 6 1/4 4 3/8 13/32 1 15/32 6 3/8 1 1/16 3 5/16 3/8 125
27.0 27.40 25 1/4 6C270R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 144
27.0 27.40 25 1/4 6C270S S1 15-Arm 6 1/4 4 3/8 13/32 1 15/32 6 3/8 1 1/16 3 5/16 3/8 151
30.0 30.40 28 1/8 6C300R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 160
30.0 30.40 28 1/8 6C300U UO 15-Arm 6 1/4 4 15/16 1/16 1 1/4 8 3/8 1 3/16 3 3/4 15/32 191
36.0 36.40 34 1/8 6C360R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 211
36.0 36.40 34 1/8 6C360U UO 15-Arm 6 1/4 4 15/16 1/16 1 1/4 8 3/8 1 3/16 3 3/4 15/32 233
44.0 44.40 42 1/8 6C440R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 286
50.0 50.40 48 1/8 6C500R R2 15-Arm 6 9/32 4 7/8 1/4 1 1/8 5 3/8 7/8 4 9/32 303
Table No. 3
7.0″ 7.40″ 5 3/8n 7C70Q Q3 15-Web 7 1/4″ 5″ 3/4″ 1 1/2″ 41/8″ 3/4″ 4 1/4″ 9/32″ 37.5
8.0 8.40 6 3/8 7C80R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 45.6
8.6 9.00 615/16 7C86R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 52.8
9.0 9.40 7 3/16 7C90R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 58.0
9.2 9.60 7 3/8 7C92R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 63.0
9.4 9.80 7 5/8 7C94R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 68.0
9.8 10.20 8 7C98R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 73.0
10.0 10.40 8 3/16 7C100R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 71.0
10.2 10.60 8 3/8 7C102R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 76.0
10.6 11.00 813/16 7C106R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 71.0
11.0 11.40 9 1/4 7C110R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 68.0
12.0 12.40 10 1/4 7C120R R2 15-Web 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 67.0
13.0 13.40 11 1/4 7C130R R2 15-Arm 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 84.0
14.0 14.40 12 1/4 7C140R R2 15-Arm 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 83.0
15.0 15.40 13 1/4 7C150R R2 15-Arm 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 86.0
16.0 16.40 14 1/4 7C160R R2 15-Arm 7 1/4 4 7/8 3/4 1 5/8 5 3/8 7/8 4 9/32 88.0
18.0 18.40 16 1/4 7C180S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 137
18.0 18.40 16 1/4 7C180U UO 15-Arm 7 1/4 4 15/16 9/16 1 3/4 8 3/8 1 3/16 3 3/4 9/32 133
20.0 20.40 18 1/4 7C200S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 152
20.0 20.40 18 1/4 7C200U UO 15-Arm 7 1/4 4 15/16 9/16 1 3/4 8 3/8 1 3/16 3 3/4 9/32 144
24.0 24.40 221/4 7C240S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 173
27.0 27.40 25 1/4 7C270S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 197
27.0 27.40 25 1/4 7C270U UO 15-Arm 7 1/4 4 15/16 9/16 1 3/4 8 3/8 1 3/16 3 3/4 9/32 196
30.0 30.40 28 1/8 7C300S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 220
30.0 30.40 28 1/8 7C300U UO 15-Arm 7 1/4 4 15/16 9/16 1 3/4 8 3/8 1 3/16 3 3/4 9/32 217
36.0 36.40 34 1/8 7C360S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 279
44.0 44.40 42 1/8 7C440S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 337
50.0 50.40 48 1/8 7C500S S2 13-Arm 7 29/32 6 3/4 9/32 25/32 6 3/8 1 1/16 5 11/16 9/32 382

C Gripbelt Sheaves with Split Taper Bushings

Table No. 1  Specifications-Stock “C” Sheaves

DIAMETERS Part Number Type Dimensions(lnches) Wt.
Datum Outside Inside Sheave Bushing O.L. L P C H G X E lessBush.
8 GROOVES, F = 8 1/4″ 10 GROOVES, F = 10 1/4″ 12 GROOVES, F = 12 1/4″
7.0″ 7.40″ 5 3/8″ 8C70Q Q3 15-Web 8 1/4″ 5″ 1 5/8″ 15/8″ 4 1/8″ 3/4″ 4 1/4″ 9/32″ 40
8 8.40 6 3/8 8C80R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 49
8.6 9.00 6 15/16 8C86R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 57
9 9.40 7 3/16 8C90R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 62
9.2 9.60 7 3/8 8C92R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 68
9.4 9.80 7 5/8 8C94R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 73
9.6 10.00 7 13/16 8C96R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 70
9.8 10.20 8 8C98R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 76
10 10.40 8 3/16 8C100R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 72
10.2 10.60 8 3/8 8C102R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 79
10.6 11.00 8 13/16 8C106R R2 15-Web 8 1/4 4 7/8 1 3/4 1 5/8 5 3/8 7/8 4 9/32 76
11 11.40 9 1/4 8C110R R2 15-Web 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 73
12 12.40 10 1/4 8C120R R2 15-Web 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 74
13 13.40 11 1/4 8C130R R2 15-Arm 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 80
14 14.40 12 1/4 8C140R R2 15-Arm 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 84
15 15.40 13 1/4 8C150R R2 15-Arm 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 93
16 16.40 14 1/4 8C160R R2 15-Arm 8 1/4 4 7/8 1 1/4 2 1/8 5 3/8 7/8 4 9/32 100
18 18.40 16 1/4 8C180S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 140
18 18.40 16 1/4 8C180U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 1 3/16 3 3/4 15/32 141
20 20.40 18 1/4 8C200S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 163
20 20.40 18 1/4 8C200U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 1 3/16 3 3/4 15/32 160
24.0 24.40 22 1/4 8C240S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 194
24.0 24.40 22 1/4 8C240U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 1 3/16 3 3/4 15/32 184
27.0 27.40 25 1/4 8C270S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 224
30.0 30.40 28 1/8 8C300S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 212
30.0 30.40 28 1/8 8C300U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 13/16 3 3/4 15/32 227
36.0 36.40 34 1/8 8C360S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 261
36.0 36.40 34 1/8 8C360U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 13/16 3 3/4 15/32 288
44.0 44.40 42 1/8 8C440S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 368
44.0 44.40 42 1/8 8C440U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 1 3/16 3 3/4 15/32 358
50.0 50.40 48 1/8 8C500S S2 15-Arm 8 13/32 6 3/4 7/32 1 9/32 6 3/8 1 1/16 5 11/16 3/8 429
50.0 50.40 48 1/8 8C500U UO 15-Arm 8 1/4 4 15/16 1 1/16 2 1/4 8 3/8 1 3/16 3 3/4 15/32 417
Table No. 2
8.0″ 8.40″ 6 3/8″ 10C80R R2 15-Web 10 1/4″ 4 7/8″ 3 3/4″ 15/8″ 5 3/8″ 7/8″ 4″ 9/32″ 70
8.6 9.00 6 15/16 10C86R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 72
9.0 9.40 7 3/16 10C90R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 72
9.2 9.60 7 3/8 10C92R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 70
9.4 9.80 7 5/8 10C94R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 78
9.6 10.00 7 13/16 10C96R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 73
9.8 10.20 8 10C98R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 88
10.0 10.40 8 3/16 10C100R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 89
10.2 10.60 8 3/8 10C102R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 97
10.6 11.00 8 13/16 10C106R R2 15-Web 10 1/4 4 7/8 3 3/4 1 5/8 5 3/8 7/8 4 9/32 84
11.0 11.40 9 1/4 10C110R R2 15-Web 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 84
12.0 12.40 10 1/4 10C120R R2 15-Web 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 97
13.0 13.40 11 1/4 10C130R R2 15-Arm 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 102
14.0 14.40 12 1/4 10C140R R2 15-Arm 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 106
15.0 15.40 13 1/4 10C150R R2 15-Arm 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 110
16.0 16.40 14 1/4 10C160R R2 15-Arm 10 1/4 4 7/8 2 1/4 3 1/8 5 3/8 7/8 4 9/32 111
18.0 18.40 16 1/4 10C180S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 164
18.0 18.40 16 1/4 10C180U UO 15-Arm 10 1/4 4 15/16 2 1/16 3 1/4 8 3/8 13/16 3 3/4 15/32 163
20.0 20.40 18 1/4 10C200S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 170
20.0 20.40 18 1/4 10C200U UO 15-Arm 10 1/4 4 15/16 2 1/16 3 1/4 8 3/8 13/16 3 3/4 15/32 178
24.0 24.40 22 1/4 10C240S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 210
24.0 24.40 22 1/4 10C240U UO 15-Arm 10 1/4 4 15/16 2 1/16 3 1/4 8 3/8 13/16 3 3/4 15/32 208
27.0 27.40 25 1/4 10C270S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 246
30.0 30.40 28 1/8 10C300S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 278
30.0 30.40 28 1/8 10C300U U1 15-Arm 10 1/4 7 1/8 13/16 2 5/16 8 3/8 1 1/2 5 5/8 15/32 298
36.0 36.40 34 1/8 10C360S S2 15-Arm 10 1/4 6 3/4 1 5/32 2 9/32 6 3/8 1 1/16 5 11/16 3/8 324
36.0 36.40 34 1/8 10C360U U1 15-Arm 10 1/4 7 1/8 13/16 2 5/16 8 3/8 1 1/2 5 5/8 15/32 362
44.0 44.40 42 1/8 10C440U U1 15-Arm 10 1/4 7 1/8 13/16 2 5/16 8 3/8 1 1/2 5 5/8 15/32 463
50.0 50.40 48 1/8 10C500U U1 15-Arm 10 1/4 7 1/8 13/16 2 5/16 8 3/8 1 1/2 5 5/8 15/32 480
Table No. 3
9.0″ 9.40″ 7 3/16″ 12C90S S2 15-Web 12 1/4″ 6 3/4″ 3 1/2″ 2″ 6 3/8″ 11/16″ 5 11/16″ 3/8″ 88
9.2 9.60 7 3/8 12C92S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 93
9.4 9.80 7 5/8 12C94S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 104
9.6 10.00 7 13/16 12C96S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 102
9.8 10.20 8 12C98S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 111
10.0 10.40 8 3/16 12C100S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 112
10.2 10.60 8 3/8 12C102S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 121
10.6 11.00 8 13/16 12C106S S2 15-Web 12 1/4 6 3/4 3 1/2 2 6 3/8 1 1/16 5 11/16 3/8 133
11.0 11.40 9 1/4 12C110S S2 15-Web 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 128
12.0 12.40 10 1/4 12C120S S2 15-Web 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 140
13.0 13.40 11 1/4 12C130S S2 15-Web 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 165
14.0 14.40 12 1/4 12C140S S2 15-Arm 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 148
15.0 15.40 13 1/4 12C150S S2 15-Arm 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 162
16.0 16.40 14 1/4 12C160S S2 15-Arm 12 1/4 6 3/4 2 7/32 3 9/32 6 3/8 1 1/16 5 11/16 3/8 163
18.0 18.40 16 1/4 12C180U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 204
20.0 20.40 18 1/4 12C200U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 224
24.0 24.40 22 1/4 12C240U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 257
27.0 27.40 25 1/4 12C270U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 300
30.0 30.40 28 1/8 12C300U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 327
36.0 36.40 34 1/8 12C360U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 397
44.0 44.40 42 1/8 12C440U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 519
50.0 50.40 48 1/8 12C500U U1 15-Arm 12 1/4 7 1/8 1 13/16 3 5/16 8 3/8 1 1/2 5 5/8 15/32 551
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “C Gripbelt Sheaves with Split Taper Bushings”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

3V Gripbelt Sheaves

3V Gripbelt Sheaves with Split Taper Bushings

TB Gripbelt Sheaves with Split Taper Bushings

TB Gripbelt Sheaves with Split Taper Bushings

BKH Cast Iron Sheaves with split taper bushing

BKH Cast Iron Sheaves with split taper bushing

6D Series QD Bushing Sheaves

8V QD Sheaves for 8V Belts

6D Series QD Bushing Sheaves

Q QD Sheaves for D Belts

BK Series Single Groove Sheaves

D QD Sheaves for D Belts

,
Cast Iron QD Sheave

C series QD Sheaves for C Belts

,
AB Taper bushed sheaves

8V Taper Bushed Sheaves
