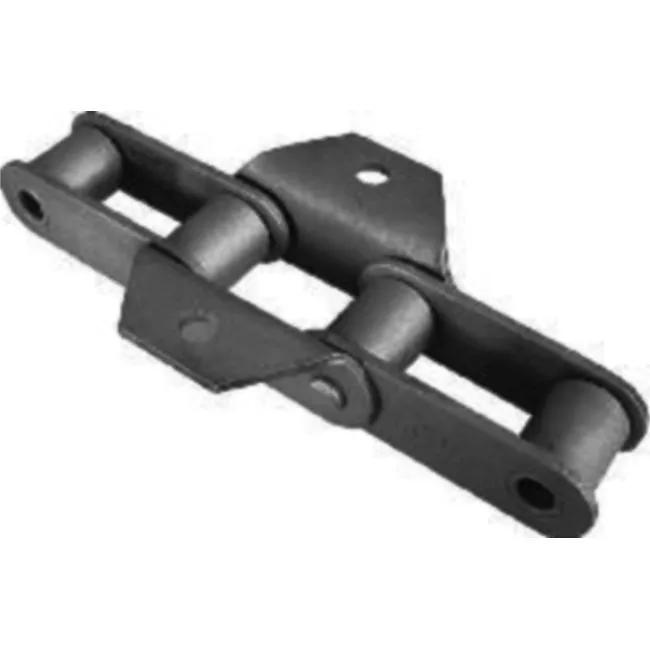

The Agricultural Chain Attachments CA550K19 has a drive series and conveyor series. It is made of hardened steel parts with precise tolerances. The chain is made of high-quality materials, which can increase its strength and prolong the service life within its range.
Our agricultural roller chain meets the needs of today’s large-scale equipment and exceeds industry standards. For over 30 years, our agricultural chain has been trusted in many applications, such as corn harvesting, lifting feed stations, feed processing, and grain processing.
Our agricultural roller chains are carefully designed and manufactured, with long service life and reduced wear.
 |
 |

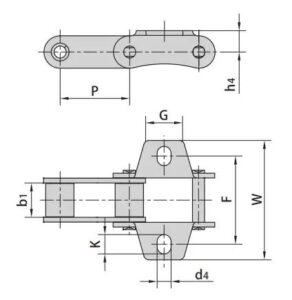

| Chain No. | P | b1 | G | F | W | h4 | d4 | K |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| CA550K19 | 41.4 | 19.81 | 22.0 | 50.8 | 71.0 | 12.7 | 8.3 | 11.0 |
| CA550K19F1 | 41.4 | 19.81 | 22.0 | 54.0 | 71.0 | 12.7 | 8.3 | 11.0 |
| CA550K19F2 | 41.4 | 19.81 | 25.4 | 50.8 | 71.0 | 12.7 | 8.4 | 11.5 |
Related Agricultural Chains
Walking Tractor chain: 08B-2; 12A-2; 12AH-2
Combine chain: 08B1,08B3,10A1,10A2,12A1,16A1,16AH1,ZGS38 and attachment.
S-type Steel Agricultural chain: S32,S42,S45,S52,S55,S62,S77,S88 and with K1,F1,SD,C6E attachment.
A-type steel Agricultural chain: A550,A555,A557,A620 and with attachment.
CA-type steel agricultural chain: CA550, CA555,CA557,CA620,CA2060H,38.4R,38.4V,CA39,CA624 and attachment.
Related Chains and Sprockets
| Engineering Chain | Conveyor Chain | Leaf Chain | Drive Chain | Agricultural Chains |
 |
 |
 |
 |
 |
Sprockets fit our entire conveyor chain range.
The drive chain and the conveying chain are working with sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.
Because sprockets significantly impact the chain’s life, all challenging sprockets (from casting to precision mechanical cutting) are according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.
Why choose us?
1. Established in 1992; we have five subsidiaries in China and also six subsidiaries abroad;
2. we cover a production area of 200,100 square meters, have more than 1,800 sets of advanced equipment and over 3,100 highly skilled employees, and the annual production capacity has exceeded 20,000,000 meters;
3. we specialize in producing all kinds of standard chains and unique chains, such as A or B series chains, drive chains, conveyor chains, drag chains, agricultural chains, sprockets, gears, and so on;
4. we have obtained ISO9001, ISO14001, ISO16969, AAA, and API certificates.
