C type Steel Agricultural Chain with Attachments CA550HK1 CA550VK18 CA550K18 CA550HF7K1
We are a leading mechanical transmission spare parts manufacturer and several years, one of the reliable and trustworthy vendors. Our main items are roller chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, etc.
For South American, European, and Asian markets, our superior products are fabricated according to your requirement, and our quality meets ISO, ASME, and DIN standards.

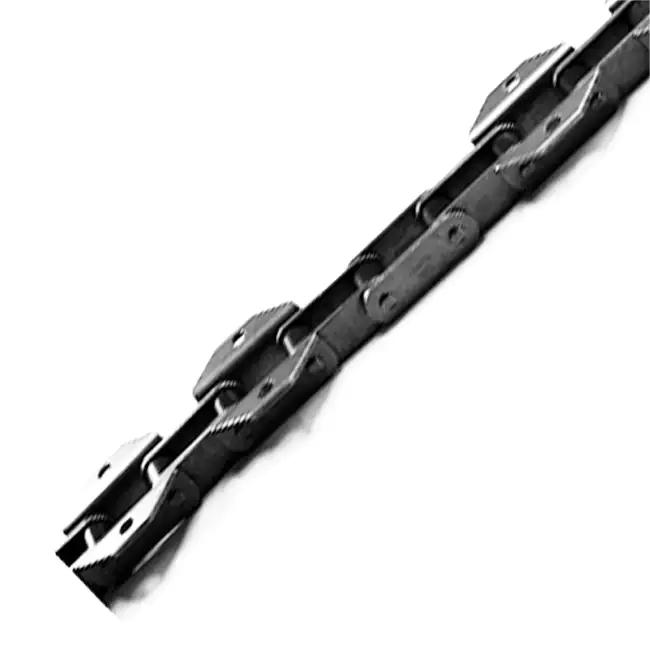

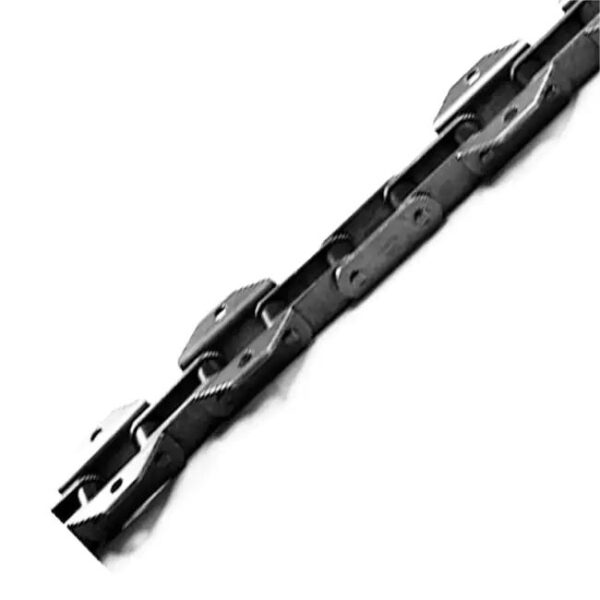

C type Steel Agricultural Chain with Attachments
 |
 |

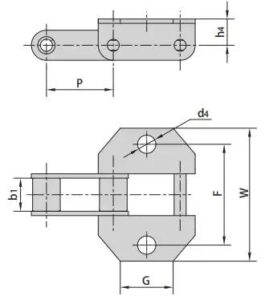

| Chain No. |
P |
b1 |
G |
F |
W |
h4 |
d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 38.4RK1 | 38.4 | 19.05 | 29.1 | 58.0 | 76.5 | 15.1 | 10.5 |
| 38.4VK1F1 | 38.4 | 18.00 | 29.1 | 57.0 | 75.0 | 15.1 | 8.5 |
| 38.4VBK1 | 38.4 | 19.05 | 29.0 | 58.0 | 87.0 | 14.0 | 10.5 |
| 38.4VBF3 | 38.4 | 19.05 | 40.0 | 57.0 | 86.0 | 16.0 | 10.3 |
| 38.4VK1F2 | 38.4 | 18.00 | 29.1 | 57.0 | 75.0 | 15.1 | 10.5 |
| 38.4VK1F3 | 38.4 | 18.00 | 29.1 | 57.0 | 75.0 | 15.1 | 9.0 |
| CA550HK1 | 41.4 | 20.00 | 22.6 | 54.0 | 71.5 | 12.7 | 8.5 |
| CA550VK18 | 41.4 | 19.05 | 22.6 | 54.0 | 71.6 | 12.7 | 8.5 |
| CA550K18 | 41.4 | 19.81 | 22.6 | 54.0 | 71.6 | 12.7 | 8.5 |
| 38.4RK1F6 | 38.4 | 19.05 | 40.0 | 57.0 | 84.0 | 16.5 | 10.3 |
| 38.4VK1F10 | 38.4 | 18.00 | 39.0 | 58.4 | 82.4 | 14.5 | 10.5 |
| 38.4VBK1F3 | 38.4 | 19.05 | 39.0 | 57.0 | 80.0 | 16.0 | 10.5 |
| 38.4VK1F11 | 38.4 | 18.00 | 35.0 | 57.0 | 76.1 | 16.0 | 9.0 |
| 38.4RF7K1 | 38.4 | 19.05 | 30.0 | 59.7 | 78.5 | 11.4 | 8.3 |
| CA550HF7K1 | 41.4 | 20.00 | 22.6 | 56.7 | 74.3 | 13.2 | 8.5 |
We are a leading mechanical transmission spare parts(C type Steel Agricultural Chain with Attachments) manufacturer and several years, one of the reliable and trustworthy vendors. Our main items are roller chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, etc.
For South American, European, and Asian markets, our superior products are fabricated according to your requirement, and our quality meets ISO, ASME, and DIN standards.
Production Process of Agricultural Chain
(1) punch its outer plate and inner plates
(2)Shot peening workshop
(3) heat treatment workshop
(4) assembly preparation
(5) pins process
(6) Tensile Properties Test before shipment
Related Sprockets and Chains
We can meet various special requirements, including but not limited to:
- plasma nitriding hardened pins and bushings
- stainless steel (all grades)
- galvanized sheet and accessories
- Molykote dry lubricant
- hot dip vitrification
- galvanized / nickel plated
- food grade oil
- nonstandard chain pitch
| Engineering Chain | Conveyor Chain | Leaf Chain | Drive Chain | Agricultural Chains |
 |
 |
 |
 |
 |
Sprockets fit our entire conveyor chain range.
The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.
Because sprockets significantly impact the chain’s life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.
FAQ
Q: how about the mold cost?
A: It mainly depends on 1. Drawings, 2. Materials, 3. Weight and quantity.
We need to understand the structure of each part to analyze the mold solution in the following ways:
1) — complete design drawings, product models, or actual samples — the best way
–Pdf drawing with full size of each part
–A clear photograph of each part with more angular views shows each feature.
2) Materials, technical parameters, and surface treatment.
Technical parameters: tell us its model, pitch, roller diameter, width between inner plates, accessory type, external drawing, etc.
3) Order quantity.
2. Q: how to control product processing?
A: Processing reports or pictures will be sent to customers weekly / monthly for review.
3. Q: who will own the mold?
A: Customers, molds can also be stored in our factory for future orders.
4. Q: how long is your quotation?
A: After receiving the detailed information, we will quote within 1 to 3 days.
5. Q: minimum order quantity—
Small chain type: if the pitch is less than 38.10mm and the thickness is less than 5mm, the minimum order quantity of these roller chains or conveyor chains is 1500m;
Medium chain type: the minimum order quantity of these roller chains or conveyor chains is 1000 meters;
Large chain type: if the pitch is more incredible than 76.20mm and the thickness is greater than 10mm, the minimum order quantity of these roller chains or conveyor chains is 200m;
I hope we can do business together and look forward to hearing from you as soon as possible.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
