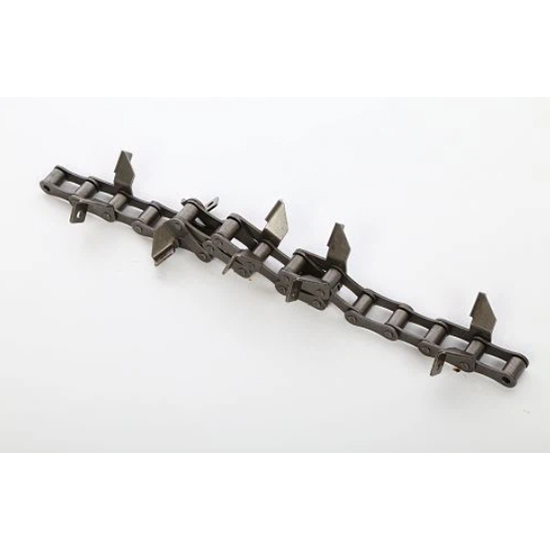

C type steel agricultural chain&attachments CA2081-TM91E // 38.4VB-TM92

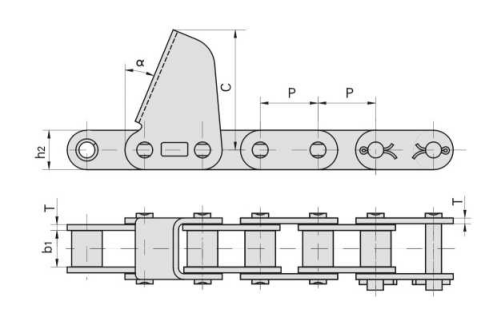

Chain No. | P | b1 | h2 | T | C | α |
mm | mm | mm | mm | mm | ||
CA2081-TM91E | 30.0 | 19.05 | 20.5 | 3.05 | 62.5 | 22.5° |

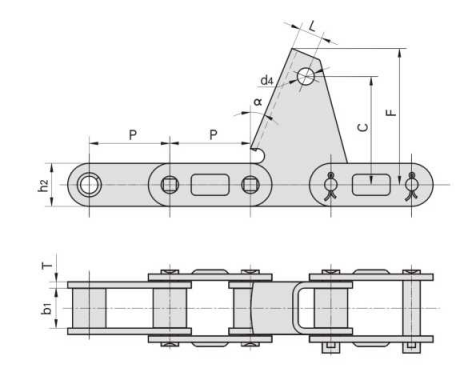

Chain No. | P | b1 | h2 | L | d4 | T | C | F | α |
mm | mm | mm | mm | mm | mm | mm | mm | ||
38.4VB-TM92 | 38.4 | 19.05 | 20.5 | 15.0 | 8.0 | 3.05 | 48.0 | 64.5 | 20° |
Detailed installation process:
- Alignment: Ensure the sprockets are perfectly aligned to avoid premature wear. Use alignment tools if necessary.
- Chain Length: Adjust the chain length to fit the machinery, considering any stretch that may occur over time.
- Attachment Installation: Securely attach sprockets, brackets, and connectors. Tighten bolts to the manufacturer’s specifications.
- Tensioning: Adjust the chain tension so there is no slack but also no excessive tightness, which can cause strain.
- Lubrication: Apply the recommended lubricant to the chain, focusing on the inner links to reduce friction and prevent rust.
