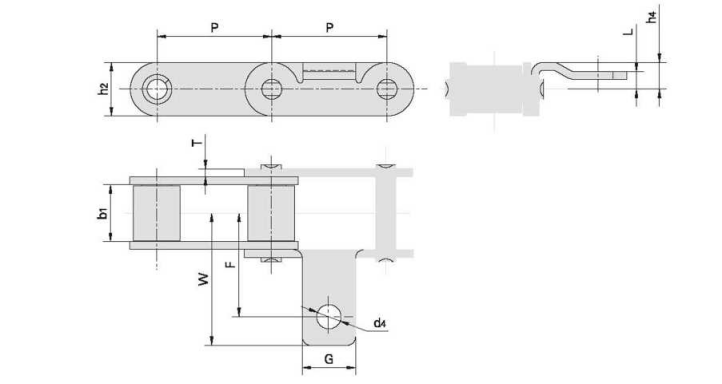

C type steel agricultural chain&attachments CA550AH//CA550AID
Chain No. | P | b1 | G | F | W | h2 | L | h4 | T | d4 |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
CA550AH | 41.4 | 20.1 | 19.1 | 37.3 | 47.6 | 19.3 | 6.4 | 9.65 | 2.8 | 8,73 |
Chain No. | P | b1 | G | F | w | h2 | L | h4 | T | d4 |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
CA550AID | 41.4 | 19.81 | 19.1 | 37.3 | 47.6 | 19.3 | 6.4 | 9.65 | 2.8 | 8.73 |
