C type Steel Agricultural Chains CA550F2 CA550K1F1 CA550K1F2 CA550K25 CA557K1 CA550VK1
These precision roller chains are applied for various workloads and in various weather conditions, which means that the quality of the agricultural roller chain must be optimal.
The agricultural chains are made of high-quality steel and subjected to various materials before assemblage.

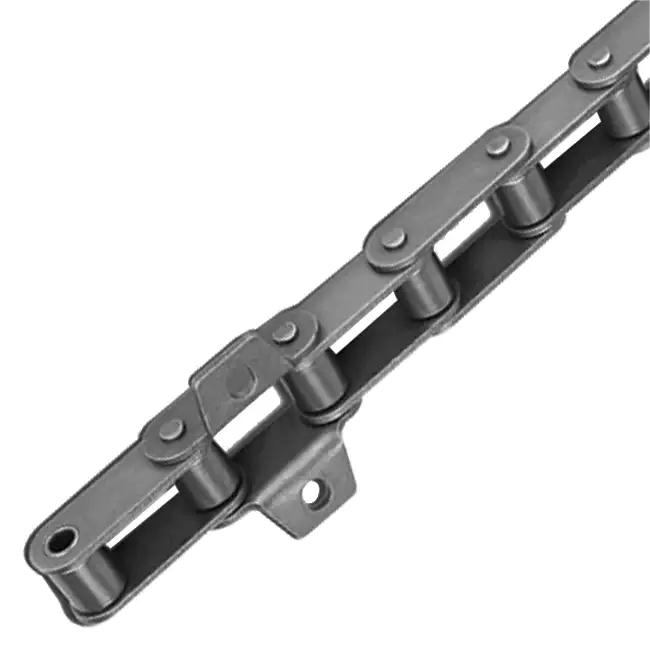

C type Steel Agricultural Chains
|
 |
Our company is the most professional power transmission manufacturer(C type Steel Agricultural Chains) in China, producing roller chains, industrial sprockets, motorcycle sprockets, cast sprockets, different types of couplings, pulleys, taper sleeves, locking devices, gears, shafts, CNC precision parts, etc.
We use high-quality raw materials, strictly comply with DIN, ANSI, JIS, and other standards, and have a professional quality control team, complete equipment, and advanced technology. In 1999, chinabase obtained the ISO9001 quality assurance system certification. At the same time, the company is also committed to environmental protection. In 2002, it also obtained the ISO14001 environmental management system certification.

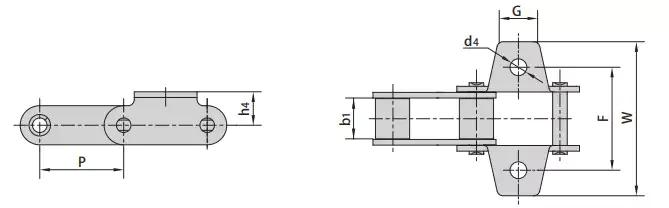

Specifications
| Chain No. | P | b1 | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 38.4VK1 | 38.4 | 18.00 | 22.00 | 57.5 | 82.00 | 15.4 | 9.00 |
| 38.4RK1F1 | 38.4 | 19.05 | 22.00 | 58.0 | 83.00 | 15.4 | 9.00 |
| 38.4VF3K1 | 38.4 | 18.00 | 20.00 | 58.0 | 79.00 | 15.4 | 9.00 |
| 38.4RK1F2 | 38.4 | 19.05 | 22.00 | 57.5 | 82.00 | 16.0 | 9.00 |
| CA550F2 | 41.4 | 19.50 | 22.00 | 50.8 | 72.00 | 14.7 | 8.50 |
| CA550K1F1 | 41.4 | 19.81 | 20.00 | 54.0 | 76.20 | 16.5 | 8.30 |
| CA550K1F2 | 41.4 | 19.81 | 20.00 | 50.8 | 76.20 | 16.5 | 8.30 |
| CA550K25 | 41.4 | 19.81 | 22.23 | 50.8 | 71.40 | 12.7 | 8.70 |
| CA557K1 | 41.4 | 20.24 | 22.00 | 50.8 | 72.00 | 15.9 | 8.70 |
| CA550VK1 | 41.4 | 19.05 | 27.00 | 54.0 | 75.54 | 16.5 | 8.50 |
| CA550VK1F1 | 41.4 | 19.05 | 27.00 | 50.8 | 75.54 | 16.5 | 8.50 |
| CA550F4K19 | 41.4 | 20.24 | 22.23 | 50.8 | 77.80 | 12.7 | 6.75 |
| CA550K29F1 | 41.4 | 19.81 | 22.20 | 50.8 | 75.40 | 12.7 | 10.30 |
| CA550AK29M | 41.4 | 19.81 | 26.20 | 50.8 | 75.40 | 16.5 | 10.24 |
| CA550K1F7 | 41.4 | 19.81 | 26.20 | 50.8 | 75.40 | 16.5 | 8.40 |
CA550A29 |
41.4 | 19.81 | 22.23 | 50.8 | 71.40 | 12.7 | 9.92 |
| CA550VF2K1 | 41.4 | 19.05 | 27.18 | 51.0 | 75.54 | 16.5 | 8.33 |
| CA550F5AK29M | 41.4 | 20.24 | 26.20 | 50.8 | 75.40 | 16.5 | 10.24 |
| CA550F5K29F1 | 41.4 | 20.24 | 22.00 | 50.8 | 75.40 | 12.7 | 10.30 |
| CA550F5K1 | 41.4 | 20.24 | 22.20 | 54.0 | 71.50 | 12.7 | 8.50 |
| CA557K1F2 | 41.4 | 20.24 | 22.00 | 50.8 | 72.00 | 15.9 | 8.30 |
| 38.4RK1F3 | 38.4 | 19.05 | 20.00 | 58.0 | 84.40 | 15.5 | 8.50 |
| 38.4RK1F4 | 38.4 | 19.05 | 20.00 | 57.0 | 75.00 | 16.0 | 8.50 |
| 38.4RK1F7 | 38.4 | 19.05 | 22.00 | 57.5 | 82.00 | 16.0 | 10.50 |
| 38.4VK1F9 | 38.4 | 18.00 | 22.00 | 56.8 | 82.00 | 16.3 | 8.70 |
| 38.4VK1F6 | 38.4 | 18.00 | 22.00 | 56.8 | 74.80 | 16.3 | 8.50 |
| 38.4VK1F7 | 38.4 | 18.00 | 22.00 | 57.5 | 82.00 | 15.4 | 8.40 |
| 38.4RK1F8 | 38.4 | 19.05 | 20.30 | 57.0 | 78.00 | 16.0 | 8.60 |
| 38.4RK1F9 | 38.4 | 19.05 | 20.00 | 57.0 | 73.00 | 10.7 | 6.50 |
| 38.4RK1F10 | 38.4 | 19.05 | 20.00 | 57.0 | 78.00 | 16.0 | 8.50 |
| 38.4VF3K1F2 | 38.4 | 18.00 | 20.00 | 57.5 | 79.00 | 15.4 | 8.50 |
| CA550K1F15 | 41.4 | 19.81 | 22.00 | 50.8 | 76.20 | 12.7 | 8.50 |
China Chain manufacturer & exporter, we specialize in Transmission chain(Driving Chain), Conveyor Chain, Engineering Chain, Stainless Steel Chain, Lifting Chain, Agricultural Chain, Forging Series, and Cast Iron Chain. We can also produce chain products according to customers’ drawings or samples. If any inquiries, please feel free to contact us.
Feature of agricultural chains
These precision roller chains are applied for various workloads and in various weather conditions, which means that the quality of the agricultural roller chain must be optimal.
The agricultural roller chains are made of high-quality steel and subjected to various material treatments before assemblage.
- The complete chain program is varied and consists of:
agricultural roller chains according to DIN 8189
agricultural roller chains with one-sided or two-sided upright attachment lips
agricultural roller chains with one-sided or two-sided attachment lips bent at right angles
