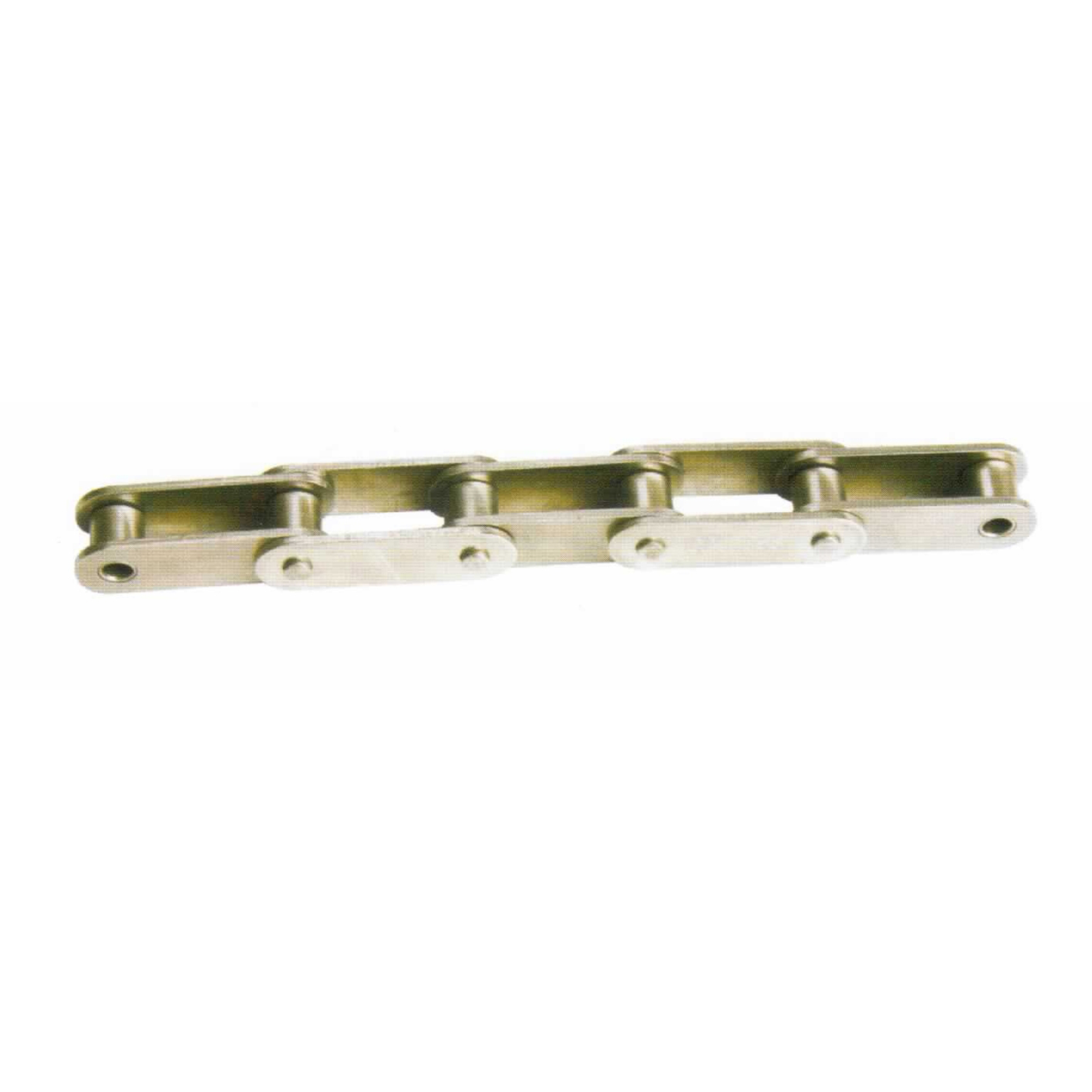

C2040SS stainless steel double pitch conveyor chain
Materials
Starting with high-quality materials ensures greater strength and extended wear life. Our manufacturing process begins with raw materials that adhere to strict standards for metal grade, mechanical properties, and carbon and alloy content. This meticulous approach minimizes impurities that can affect tensile and fatigue strength.
Fabrication
Power-trans designs each component to precise dimensional standards for optimal performance. Precision-ground pins, solid rollers, and bushings are engineered to work together with link plates to maximize the bearing area. This results in improved fatigue life and enhanced load-carrying capacity. Additionally, Power-trans Stainless Steel Double Pitch Conveyor Chains, available in either 600 or 304 Series, provide excellent corrosion resistance in harsh or extreme temperature environments. This chain is also offered with standard or oversized rollers to best suit your specific application needs.

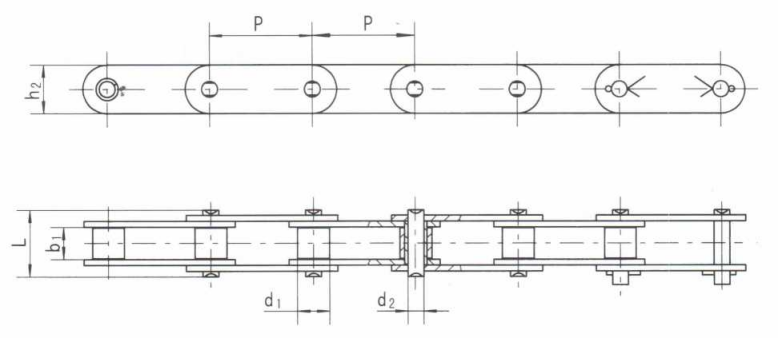

Diameter Data
Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
Chain | dia | length | |||||||
No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
C2040SS | 25.4 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.5 |
C2040HSS | 18.8 | 0.65 | |||||||
C208BSS | 25.4 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.55 |
C2050SS | 31.75 | 10.16 | 9.40 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 0.78 |
C2060SS | 38.1 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.12 |
C2060HSS | 28.5 | 1.44 | |||||||
C2080SS | 50.8 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 2.08 |
C2080HSS | 36.4 | 2.54 | |||||||
C2100SS | 63.5 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 3.01 |
C2100HSS | 43.6 | 3.58 | |||||||
C2120SS | 76.2 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 4.66 |
C2120HSS | 53.5 | 5.38 |
