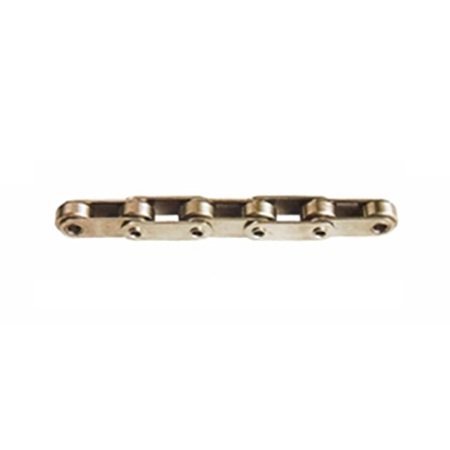

C2042HPSS stainless steel double pitch hollow pin chains
Features:
- Seamless Bushing
- Anti-Rust
- Anti-Corrosion
- Durable
- Customizable
- Quality Guaranteed
- Attachment Options Available
Applications:
- Food Industry
- Packing Industry
- Chemical Industry
- And others

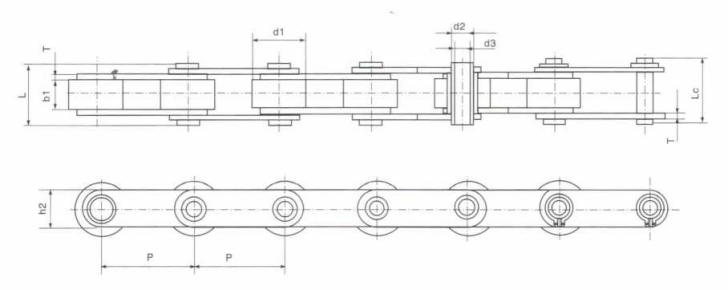

Diameter Data
Pitch | Roller
diameter |
Width between inner plates | Pin
diameter |
Pin
length |
Inner
plate depth |
Plate
thickness |
Breaking
Load |
Weight
per meter |
|||
Chain
No. |
P | d1
max |
b1
min |
d2
max |
d3
min |
L
max |
Lc
max |
h2
max |
T
max |
〇
min |
q |
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
C2042HPSS | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.0 | 1.50 | 7.7/1750 | 0.79 |
C2052HPSS | 31.75 | 19.05 | 9.40 | 7.22 | 5.12 | 20.5 | 21.8 | 15.0 | 2.00 | 14.3/.3250 | 1.27 |
C2062HPSS | 38.10 | 22.23 | 12.57 | 8.31 | 6.00 | 25.8 | 26.8 | 18.0 | 2.40 | 16.8/3818 | 1.74 |
C2082HPSS | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 32.4 | 33.8 | 24.0 | 3.00 | 35.0/7955 | 2.86 |
C2042H-HPSS | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 18.8 | 19.9 | 12.0 | 2.00 | 7.7/1750 | 0.96 |
C2052H-HPSS | 31.75 | 19.05 | 9.40 | 7.22 | 5.12 | 22.1 | 23.4 | 15.0 | 2.40 | 14.3/3250 | 1.46 |
C2062H-HPSS | 38.10 | 22.23 | 12.57 | 8.31 | 6.00 | 29.2 | 30.2 | 18.0 | 3.00 | 16.8/3818 | 2.02 |
C2082H-HPSS | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 36.2 | 37.6 | 24.0 | 4.00 | 35.0/7955 | 3.30 |
