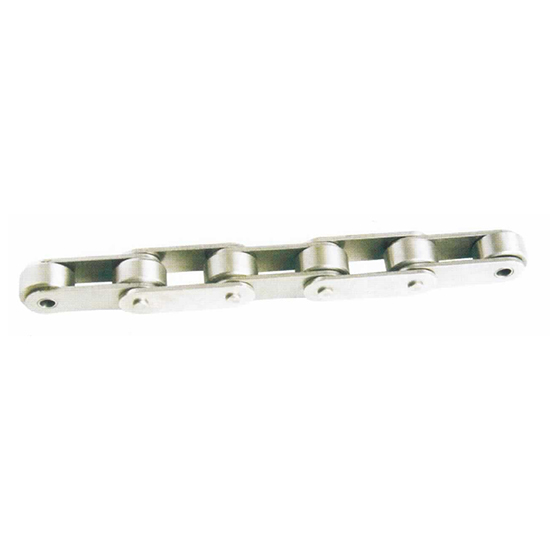

C2042SS stainless steel double pitch conveyor chain
Heat Treatment
Strict control over atmosphere, time, and temperature during heat treatment optimizes material properties, resulting in increased strength, durability, and wear resistance.
Shot Peening
Our shot peening process enhances fatigue strength by introducing a layer of compressive stress. This treatment helps components resist failure under repeated high loads. Additionally, we use ballizing—pressing steel balls through the pitch holes—to optimize bearing contact between pins, bushings, and link plates, further increasing chain fatigue resistance and pin retention.
Lubrication
We apply a proprietary lubrication process to all lubricated chains to provide superior corrosion protection and extend wear life.
Preloading
After assembly, all chains are preloaded to firmly seat the pins and bushings. This step minimizes initial run-in and extends the overall wear life of the chain.

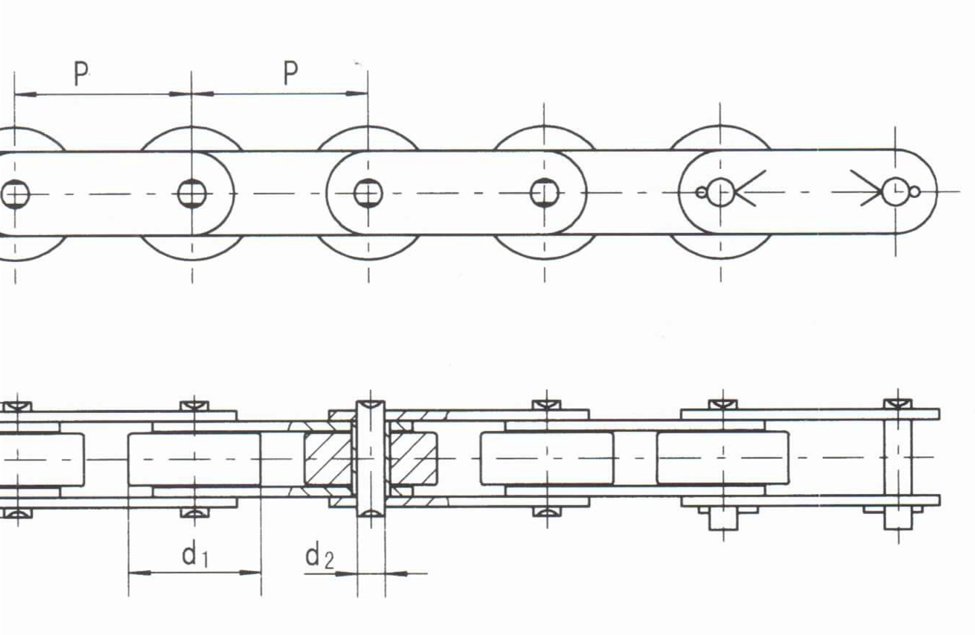

Diameter Data
Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
Chain | dia | length | |||||||
No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
C2042SS | 25.4 | 15.88 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.84 |
C208BLSS | 25.4 | 15.88 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.89 |
C2052SS | 31.75 | 19.05 | 9.40 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 1.27 |
C2062SS | 38.1 | 22.23 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.61 |
C2062HSS | 28.5 | 2.07 | |||||||
C2082SS | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 3.12 |
C2082HSS | 36.4 | 3.58 | |||||||
C2102SS | 63.5 | 39.67 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 4.83 |
C2102HSS | 43.6 | 5.38 | |||||||
C2122SS | 76.2 | 44.45 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 7.66 |
C2122HSS | 53.5 | 8.26 |
