C2080H Double Pitch Sprockets A&B
C2080H A Series 2080A17 2080A18 2080A19 2080A20 2080A21 2080A22 2080A23 2080A24 2080A25 2080A26 2080A28 2080A30
C2080H B Series 2080B11 2080B12 2080B13 2080B14 2080B15 2080B16 2080B17 2080B18 2080B19 2080B20 2080B21 2080B22 2080B23 2080B24 2080B25 2080B26 2080B28 2080B30

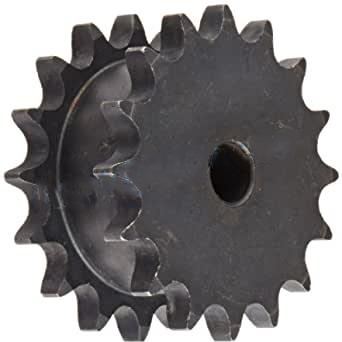

Our in-stock standard double pitch sprockets (C2080H Double Pitch Sprockets)are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.
Below is a chart of all of the standard C2080H double pitch roller chain sprockets. We also stock a full line of high quality C2080H roller chain.
Stock C2080H Roller Chain Sprockets
Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
---|---|---|---|---|---|---|
2080A17
|
17 | 5.950″ | 15/16″ | — | — | 3.4 LBS |
2080A18
|
18 | 6.270″ | 15/16″ | — | — | 3.8 LBS |
2080A19 | 19 | 6.590″ | 15/16″ | — | — | 4.3 LBS |
2080A20
|
20 | 6.910″ | 15/16″ | — | — | 4.8 LBS |
2080A21
|
21 | 7.230″ | 15/16″ | — | — | 5.3 LBS |
2080A22
|
22 | 7.560″ | 15/16″ | — | — | 5.8 LBS |
2080A23
|
23 | 7.880″ | 15/16″ | — | — | 6.4 LBS |
2080A24
|
24 | 8.200″ | 15/16″ | — | — | 7.1 LBS |
2080A25
|
25 | 8.520″ | 15/16″ | — | — | 7.5 LBS |
2080A26
|
26 | 8.840″ | 1-3/16″ | — | — | 8.3 LBS |
2080A28
|
28 | 9.480″ | 1-3/16″ | — | — | 9.2 LBS |
2080A30
|
30 | 10.110″ | 1-3/16″ | — | — | 10.7 LBS |
2080B11 | 11 | 4.010″ | 1″ | 1-1/2″ | 1-5/8″ | 2.5 LBS |
2080B12 | 12 | 4.330″ | 1″ | 1-11/16″ | 1-5/8″ | 3.2 LBS |
2080B13 | 13 | 4.660″ | 1″ | 1-25/32″ | 1-1/2″ | 3.3 LBS |
2080B14 | 14 | 4.980″ | 1″ | 2-1/8″ | 1-1/2″ | 4.0 LBS |
2080B15 | 15 | 5.300″ | 1″ | 2-9/32″ | 1-1/2″ | 4.8 LBS |
2080B16 | 16 | 5.630″ | 1″ | 2-17/32″ | 1-1/2″ | 5.7 LBS |
2080B17 | 17 | 5.950″ | 1″ | 2-3/4″ | 1-1/2″ | 6.4 LBS |
2080B18 | 18 | 6.270″ | 1″ | 2-3/4″ | 1-1/2″ | 7.4 LBS |
2080B19 | 19 | 6.590″ | 1″ | 2-3/4″ | 1-1/2″ | 7.7 LBS |
2080B20 | 20 | 6.910″ | 1″ | 2-3/4″ | 1-1/2″ | 8.3 LBS |
2080B21 | 21 | 7.230″ | 1″ | 2-3/4″ | 1-3/4″ | 9.4 LBS |
2080B22 | 22 | 7.560″ | 1″ | 2-3/4″ | 1-3/4″ | 10.0 LBS |
2080B23 | 23 | 7.880″ | 1″ | 2-3/4″ | 1-3/4″ | 10.5 LBS |
2080B24 | 24 | 8.200″ | 1″ | 2-3/4″ | 1-3/4″ | 11.1 LBS |
2080B25 | 25 | 8.520″ | 1″ | 2-3/4″ | 1-3/4″ | 12.0 LBS |
2080B26 | 26 | 8.840″ | 1-1/4″ | 3-1/4″ | 2″ | 14.8 LBS |
2080B28 | 28 | 9.480″ | 1-3/16″ | 3-1/4″ | 2″ | 16.6 LBS |
2080B30 | 30 | 10.110″ | 9.620″ | 3-1/4″ | 2″ | 17.8 LBS |
