CA550K39M Agricultural Chain K39M Attachments CA550K39MF3 CA550HK39M CA557K39M CA557K39MF1 CA557K39MF3 CA550F5K39M

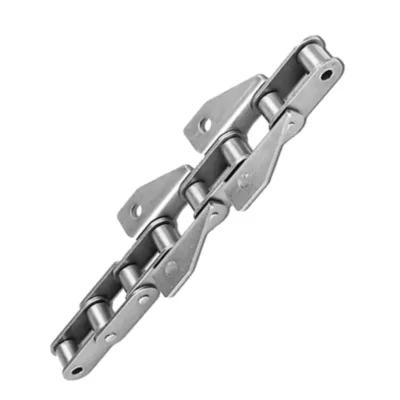

CA550 K39M attachment is a two-side, two-hole attachment manufactured for the CA550 roller chain. We can supply the CA550 roller chain with K39M attachments in any configuration needed to meet your needs. This K39M attachment is manufactured using precision hardened components to ensure durability, working life, and strength.

Category: C type steel agricultural chains

Description

CA550K39M Agricultural Chain K39M Attachments CA550K39MF3 CA550HK39M CA557K39M CA557K39MF1 CA557K39MF3 CA550F5K39M

CA550 K39M attachment(Agricultural Chain K39M Attachments) is a two-side, two-hole attachment manufactured for the CA550 roller chain. We can supply the CA550 roller chain with K39M attachments in any configuration needed to meet your needs. This K39M attachment is manufactured using precision hardened components to ensure durability, working life, and strength.

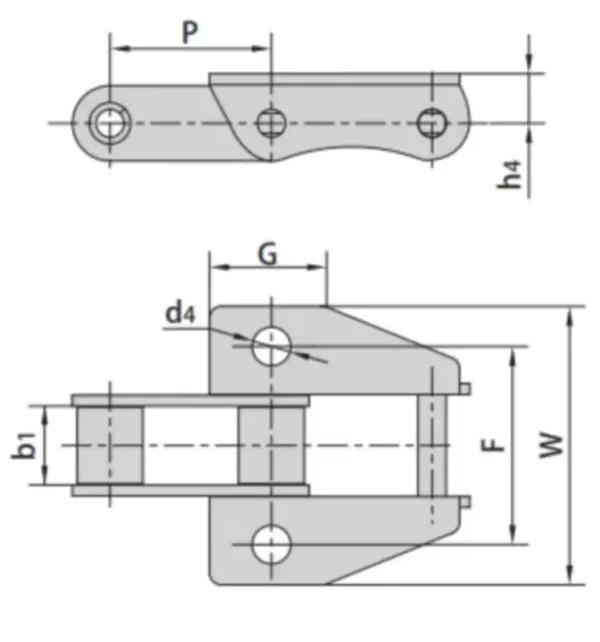

Chain No.	P	b1	G	F	W	h4	d4
Chain No.	mm	mm	mm	mm	mm	mm	mm
CA550K39M	41.4	19.81	29.5	50.80	71.4	12.7	9.8
CA550K39MF3	41.4	19.81	29.5	50.80	71.4	12.7	10.3
CA550HK39M	41.4	20.00	31.0	57.00	78.0	14.2	10.5
CA557K39M	41.4	20.24	29.5	50.80	71.4	12.7	9.8
CA557K39MF1	41.4	20.24	22.0	57.15	77.6	14.0	9.9
CA557K39MF3	41.4	20.24	31.0	57.00	78.0	14.5	10.3
CA550F5K39M	41.4	20.24	29.5	50.80	71.4	12.7	10.3

Product name	C Type Steel Agricultural Chain with Attachments
Materials Available	1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
	2. Steel:C45(K1045), C46(K1046),C20
	3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
	4. Bronze: C51000, C52100, C54400, etc.
	5. Iron: 1213, 12L14,1215
	6. Aluminum: Al6061, Al6063
	7. OEM, according to your request
Surface Treatment	Annealing, natural anodization, heat treatment, polishing, nickel plating, chrome plating, zinc plating, yellow passivation, gold passivation, satin, Black surface painted, etc.
Products Available	sprocket chains, pulley, shafts(axles, spline shafts, dart shafts), gears (pinions, wheels gear rack), bearing, bearing seat, bushing, coupling, lock assembly, etc.
Processing Method	CNC machining, punch, turning, milling, drilling, grinding, broaching, welding, and assembly
QC :	Technicians self-check in production, final-check before package by professional Quality inspector
Size	Drawings
Package	Wooden Case/Container and pallet, or as per customized specifications

Why choose us-chain manufacturer

Power-trans is a trading company of China chain general factory. As an expert in China’s engineering chain, we establish our factory in 1992 to produce a full range of industrial chains.

Professional packaging and transportation
Usually, the standard roller is cut into 5 meters (roller link each end) or 10FT(including 1 CL), then in a plastic bag and carton box. Outer packed in pallet, poly-wood cases, or steel net cases. Special links or reel packing also are available. If you need a particular packing way
Rich experience in the engineering chain.
We have more than 25 years of chain engineer experience, more than 500 hand-held workers, and 25 engineers of the conveyor chain team and chain conveyor team. We provide services for hand-held conveyors in the Chinese industry. As industry partners, we have cooperated with many famous companies in China.
We are familiar with the working conditions of various industries.
High quality and guaranteed.
We use high-precision machines from Germany, Japan, and Taiwan, and the quality of our engineering chain has reached the world’s high level.
Many top engineer chain brands in the world cooperate with us. We learn from them and gradually improve the quality.
Our service objective is to reduce costs for users.
It is impossible to produce high-quality engineer chains according to drawings and specifications. Our engineers inspect the chain operation site and find solutions to extend the chain service life and reduce downtime. For us, quality means “value for money.”

Related Sprockets and Chains

Engineering Chain	Conveyor Chain	Leaf Chain	Drive Chain	Agricultural Chains

Sprockets fit our entire conveyor chain range.
The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.
Because sprockets significantly impact the chain’s life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets
