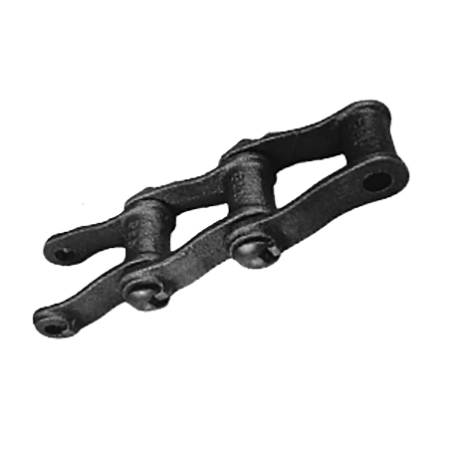

400 CLASS Cast iron PINTLE CHAIN 462 477 488 4103 720 720S 730
400 CLASS Cast iron PINTLE CHAIN
Cast iron chains 462 477 488 4103 720 720S 730
400 CLASS PINTLE CHAIN MATERIALS
| MOLINE CHAIN NO. | LINKS | PINS | |
|
ALL NUMBERS Moline Promal |
ALL NUMBERS Carbon Steel, Heat-Treated | |
ORDERING AND APPLICATION DATA(400 CLASS Cast iron PINTLE CHAIN)
| MOLINE CHAIN NO. | DIMENSIONS IN DECIMAL INCHES | ||||||
| PITCH IN INCHES |
LINKS PER10 FEET | WEIGHT PER FOOT LBS. | AVERAGE ULTIMATE STRENGTH LBS. | RECOMMENDED MAXIMUM WORKING LOAD LBS. |
CHAIN CONSTRUCTION |
AVAILABLE ATTACHMENTS | |
|
|
|
|
|
|
Riveted or Cottered |
|
DIMENSIONS IN DECIMAL INCHES
| MOLINE | DIMENSIONS IN DECIMAL INCHES | ||||||||||
| PITCH | MAXIMUM ALLOWABLE SPROCKET FACE A |
OVER-ALL WIDTH COTTERED C |
DIAMETER OF PIN D |
OVER-ALL WIDTH RIVETED E |
HEIGHT OF SIDEBARS F |
DIAMETER OF BARREL H |
HEAD OF PIN TO CENTER LINE | END OF PIN TO CENTER LINE COTTERED | END OF PIN TO CENTER LINE RIVETED L |
BEARING LENGTH | |
| CHAIN NO. | |||||||||||
| 442 445 452 455 462 477 488 4103 |
1.375 1.630 1.506 1.630 1.634 2.308 2.609 3.075 |
0.62 0.69 0.62 0.69 0.88 0.69 0.94 1.12 |
2.03 2.03 2.22 2.22 2.56 2.38 2.94 3.56 |
0.31 0.31 0.38 0.38 o.44 0.44 0.44 0.75 |
1.88 1.88 2.06 2.06 2.38 2.25 2.75 3.25 |
0.75 0.75 0.84 0.84 0.94 1.00 0.94 1.50 |
0.56 0.62 0.69 0.62 0.72 0.72 0.88 1.25 |
0.97 0.97 1.03 1.03 1.25 1.16 1.44 1.75 |
1.06 1.06 1.19 1.19 1.31 1.22 1.50 1.81 |
0.91 0.91 1.03 1.03 1.12 1.09 1.31 1.50 |
1.06 1.06 1.09 1.12 1.44 1.25 1.62 1.88 |

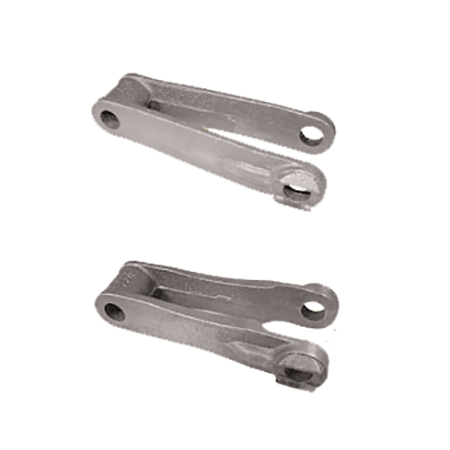

700 CLASS PINTLE CHAIN MATERIALS
| MOLINE CHAIN N0. | CAST LINKS | PINS |
|
ALL NUMBERS Moline Promal |
ALL NUMBERS Carbon Steel Heat Treated |
ORDERING AND APPLICATION DATA
| MOLINE CHAIN NO. | DIMENSIONS IN DECIMAL INCHES | ||||||
| PITCH IN INCHES |
LINKS PER10 FEET | WEIGHT PER FOOT LBS. | AVERAGE ULTIMATE STRENGTH LBS. | RECOMMENDED MAXIMUM WORKING LOAD LBS. | CHAIN CONSTRUCTION |
AVAILABLE ATTACHMENTS | |
| Moline Promal | |||||||
| 720 | 6.000 | 20 | 4.2 | 28,600 | 3.720 | Riveted or Cottered | A2.A53.AM116.F2.F22-6 F22-8,K1,K2.M1.PDF2. PDF22-6.PDF22-8 |
| 720S | 6.000 | 20 | 5.2 | 40.000 | 4,250 | Riveted or Cottered | A2.A53.AM116.F2. F22-6,F22-8.K2.M1 |
| MS 720 S | 6.000 | 20 | 6.2 | 42.000 | 4.200 | Riveted or Cottered | A2.A42.F2.F22-6.F22-8. K2.M1 |
| 730 | 6.000 | 20 | 6.0 | 40.000 | 4.500 | Riveted or Cottered | A2.A42.F2.F22-6. F22-8.K2.M1 |
| MS 730 | 6.000 | 20 | 6.3 | 40.000 | 4.500 | Riveted or Cottered | F2.F22-6.F22-8.M1 |
| 788 | 2.609 | 46 | 4.6 | 22.750 | 2.740 | Riveted or Cottered | None |
DIMENSIONS IN DECIMAL INCHES
MOLINE CHAIN NO. DIMENSIONS IN DECIMAL INCHES PITCH MAXIMUM ALLOWABLE SPROCKET FACE A OVER-ALL WIDTH COTTERED
CDIAMETER
OF PIN DOVER-ALL WIDTH RIVETED
EHEIGHT OF
SIDEBARS
FDIAMETER
OF
BARREL
HHEAD OF PIN TO CENTER LINE END OF PIN TO CENTER LINE- COTTERED END OF PIN TO CENTER LINE- RIVETED
LBEARING LENGTH
X720
720S
MS 720
S730
MS 730
7886.000
6.000
6.000
6.000
6.000
2.6091.12
1.12
1.12
1.12
1.12
0.943.44
3.81
3.81
3.81
3.81
3.310.69
0.75
0.75
0.75
0.75
0.563.31
3.69
3.69
3.69
3.69
3.191.50
1.56
1.56
1.75
1.75
1.191.38
1.44
1.44
1.50
1.50
0.881.62
1.75
1.75
1.81
1.81
1.561.81
2.06
2.06
2.00
2.00
1.751.69
1.94
1.94
1.88
1.88
1.621.81
1.88
1.88
2.00
2.00
1.62
