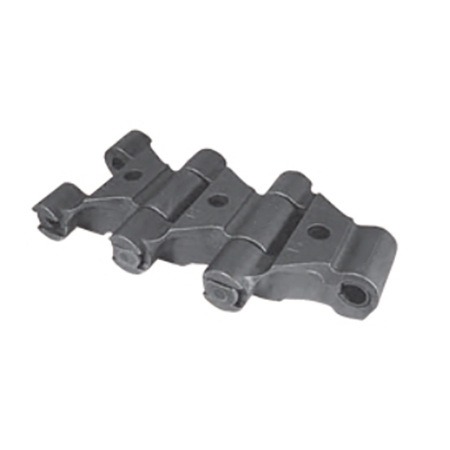

Cast iron chains 907 E51
The pin heads are T-shaped to prevent rotation, and the bushings are press fit for greater life. For optimum abrasion and corrosion resistance, the links can be manufactured in 300 grade stainless steel. The pins and bushings can be supplied in 400 grade stainless steel, which is heat-treated to avoid premature wear.
Diameter Data
- Pitch: 3.170″
- Recommended Maximum Working Load: 5,000 LBS
- Ultimate Strength: 32,500 LBS
- Links Per 10ft: 38
- Weight: 12.2 LBS/ FT

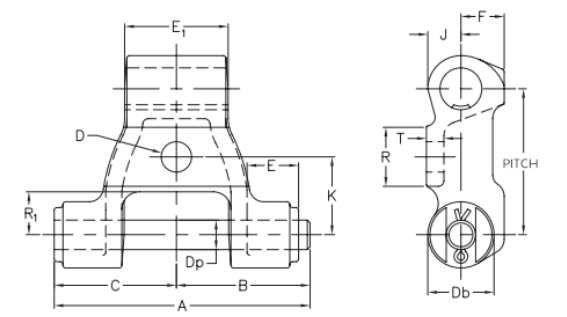

- Dimension (A): 5.62″
- Dimension (B): 2.94″
- Dimension (C): 2.69″
- Bolt Dimension (D): 0.62″
- Hole Dimension (D): 0.69″
- Dimension (Dp): 0.62″
- Dimension (Db): 1.44″
- Dimension (E): 1.12″
- Dimension (E1): 2.31″
- Dimension (F): 1.66″
- Dimension (J): 0.72″
- Dimension (K): 1.69″
- Dimension (R): 1.31″
- Dimension (R1): 0.69″
- Dimension (T): 0.36″
