Cast iron chains BRH188

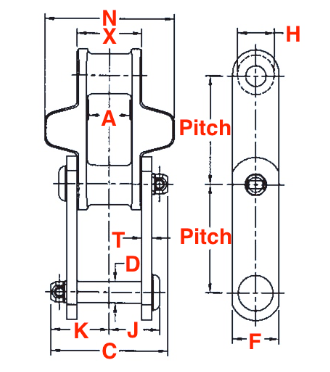

- Chain Number: BRH188
- Pitch (P): 2.609″
- Overall Width Cottered (C): 2.690″
- Overall Width Riveted: 2.500″
- Pin Diameter (E): 0.500″
- Sidebar Height (F): 1.120″
- Barrel Diameter (H): 0.880″
- Head Of Pin To Center Line (J): 1.250″
- End Of Pin To Center Line Cottered (K): 1.440″
- End Of Pin To Center Line Riveted: 1.250″
- Sidebar Thickness (T): 0.250″
- Maximum Allowable Sprocket Face (A): 0.940″
- Barrel Length (X): 1.560″
- Ultimate Strength: 18,900 LBS
- Working Load: 2,350 LBS
- Links Per 10ft Box: 46
- Weight Per Foot: 4.8 LBS

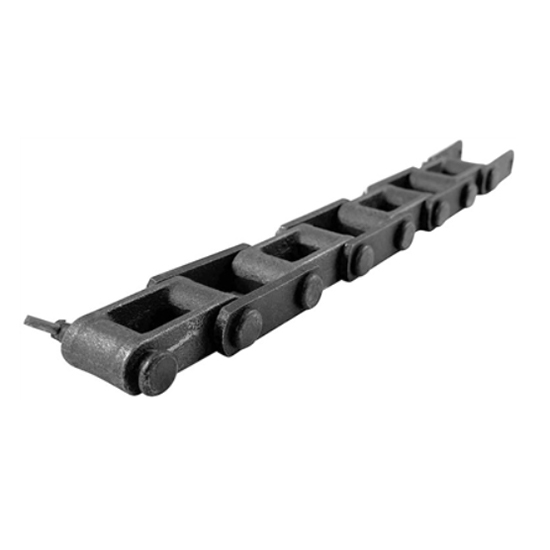

Cast iron chains BRH188 conveyor chain is known as a cast combination chain. This BRH188 conveyor chain is a high quality, durable, and long lasting conveyor chain that is manufactured using high quality components.
