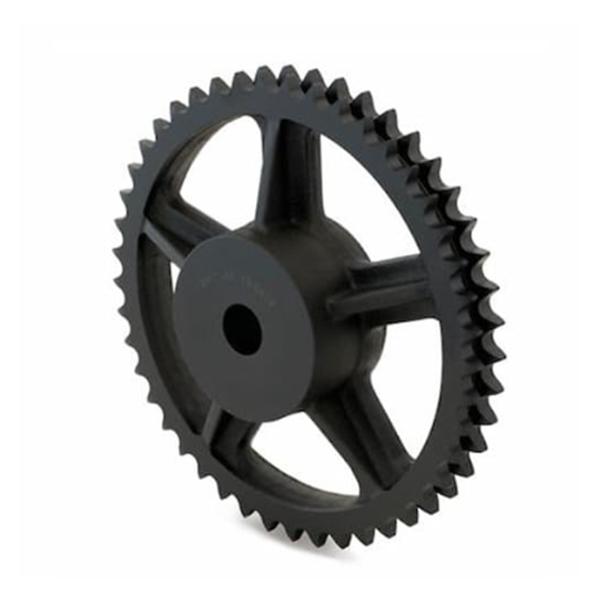

Cast iron sprockets DIN8187

CI sprockets are machined from cast iron providing abrasion resistance as well as excellent chain sprocket interaction. Available in Cast Iron (CI) material.

Categories: European series sprockets, Sprockets Category

Description

Cast iron sprockets DIN8187

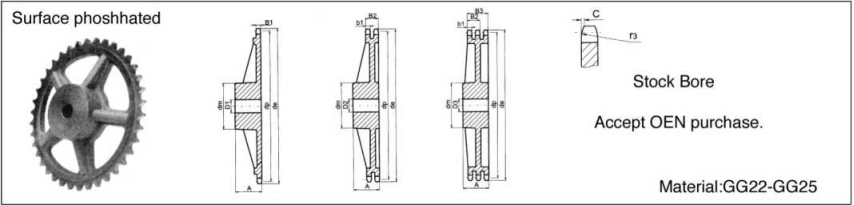

Dimensional parameters (Cast Iron Sprockets DIN8187)

3/8″ X 7/32″ 06B-1-2-3 Acc.to DIN 8187 ISO/R 606

z de dp SIMPLEX DUPLEX TRIPLEX

dm D1 A dm D2 A dm D3 A

38 119.5 115.35 70 20 32 80 20 40 90 24 56

45 140.7 136.55 70 20 32 80 20 40 90 24 56

57 176.9 172.91 70 20 32 80 20 40 90 24 56

76 234.9 230.49 70 20 32 80 20 40 100 24 56

95 292.5 288.08 80 20 40 90 20 45 100 24 56

114 349.6 345.68 80 20 40 95 20 45 100 24 56

150 459.2 454.82 90 24 45 100 24 50 125 24 60

1/2″ X 5/16″ 08B-1-2-3 Acc.to DIN 8187 ISO/R 606

SPROCKETS mm

Tooth radius r3Radius width C 10

1

Tooth width B1 5.3

Tooth width b1 5.2

Tooth width B2 15.4

Tooth width B3 25.6

CHAIN mm

Pitch 9.525

Internal width 5.72

Roller φ 6.35

Z de dp SIMPLEX DUPLEX TRIPLEX

dm D1 A dm d2 A dm D3 A

38 158.6 153.80 70 20 40 90 24 50 100 24 60

45 188.0 182.07 70 20 40 90 24 50 100 24 60

57 236.4 230.54 70 20 40 90 24 50 100 24 60

76 313.3 307.33 80 24 40 100 24 56 100 24 60

95 390.1 384.11 80 24 45 100 24 56 120 24 67

114 466.9 460.90 80 24 45 100 24 63 120 24 67

5/8″ X 3/8″ 10B-1-2-3 Acc.to DIN 8187 ISO/R 606

SPROCKETS mm

Tooth radius r3 13

Radius width C 1.3

Tooth width B1 7.2

Tooth width b1 7

Tooth width B2 21

Tooth width B3 34.9

CHAIN mm

Pitch 12.7

Internal width 7.75

Roller φ 8.51

SPROCKETS mm

Tooth radius r3 16

Radius width C 1.6

Tooth width B1 9.1

Tooth width b1 9

Tooth width B2 25.5

Tooth width B3 42.1

CHAIN mm

Pitch 15.875

Internal width 9.65

Roller φ 10.16

Z	de	dp	SIMPLEX			DUPLEX			TRIPLEX
Z	de	dp	dm	D1	A	dm	D2	A	dm	D3	A
38	199.2	192.24	80	20	40	100	30	50	100	32	60
45	235.0	227.58	80	20	40	100	30	50	100	32	60
57	296.0	288.18	90	24	45	100	30	56	100	32	63
76	392.1	384.16	90	24	50	100	30	63	110	35	67
95	488.5	480.14	100	24	56	110	30	63	125	35	70
114	584.1	576.13	100	24	56	125	30	70	125	35	80

3/4″ X 7/16″ 12B-1-2-3 Acc.to DIN 8187 ISO/R 606 (Cast iron sprockets DIN8187)

Z de dp SIMPLEX DUPLEX TRIPLEX

dm D1 A dm d2 A dm d3 A

38 239.0 230.69 100 24 56 110 30 63 140 30 70

45 282.5 273.10 100 24 56 110 30 63 140 30 70

57 354.0 345.81 100 30 56 120 30 63 140 40 70

76 469.9 460.99 100 30 56 135 30 63 160 40 75

95 585.1 576.17 100 30 65 135 30 70 170 40 82

114 700.6 691.36 100 30 65 135 30 70 170 50 82

SPROCKETS	mm
Tooth radius r3	19
Radius width C	2
Tooth width B1	11.1
Tooth width b1	10.8
Tooth width B2	30.3
Tooth width B3	49.8
CHAIN	mm
Pitch	19.05
Internal width	11.68
Roller φ	12.07

1″X 17.02mm 16B-1-2-3 Acc.to DIN 8187 ISO/R 606

z de dp SIMPLEX DUPLEX TRIPLEX

dm D1 A dm D2 A dm D3 A

30 254.0 243.00 110 30 65 125 40 75 145 40 90

38 320.0 307.59 110 30 65 140 40 75 160 45 100

45 377.0 364.13 125 30 70 150 40 75 160 45 100

57 474.0 461.08 125 35 70 170 40 90 165 45 100

76 627.0 614.65 140 35 80 175 40 95 200 45 110

95 781.0 768.22 140 40 80 175 45 95 200 50 110

114 933.0 921.81 140 40 80 175 45 95 200 50 115

SPROCKETS	mm
Tooth radius r3	26
Radius width C	2.5
Tooth width B1	16.2
Tooth width b1	15.8
Tooth width B2	47.7
Tooth width B3	79.6
CHAIN	mm
Pitch	25.4
Internal width	17.02
Roller φ	15.88

1″ 1/4 X 3/4″ 20B-1-2-3 Acc.to DIN 8187 ISO/R 606

Z	de	dp	SIMPLEX			DUPLEX			TRIPLEX
Z	de	dp	dm	D1	A	dm	D2	A	dm	D3	A
30	318.9	303.75	115	35	70	130	40	80	160	50	100
38	399.6	384.49	125	35	70	140	45	90	180	56	110
45	470.3	455.17	125	35	70	140	45	90	180	56	110
57	591.5	576.36	135	40	80	160	50	100	180	60	125
76	783.5	768.32	140	40	90	180	50	100	200	60	140

1″ 1/2 X 1″ 24B-1-2-3 Acc.to DIN 8187 ISO/R 606

SPROCKETS mm

Tooth radius r3 32

Radius width C 3.5

Tooth width B1 18.5

Tooth width b1 18.2

Tooth width B2 54.6

Tooth width B3 91

CHAIN mm

Pitch 31.75

Internal width 19.56

Roller φ 19.05

Z	de	dp	SIMPLEX			DUPLEX			TRIPLEX
Z	de	dp	dm	D1	A	dm	D2	A	dm	D3	A
30	379.5	364.50	130	40	85	160	40	95	180	60	150
38	476.2	461.39	140	45	90	180	45	100	200	60	150
45	561.2	546.20	140	45	90	180	45	100	200	60	150
57	706.5	691.63	160	45	100	200	55	110	200	70	150
76	936.9	921.98	170	45	100	220	55	120	250	70	150
95	1167.3	1152.33	200	50	125	220	55	140

SPROCKETS mm

Tooth radius r3 38

Radius width C 4

Tooth width B1 24.1

Tooth width b1 23.6

Tooth width B2 72

Tooth width B3 120.3

CHAIN mm

Pitch 38.1

Internal width 25.4

Roller φ 25.4
