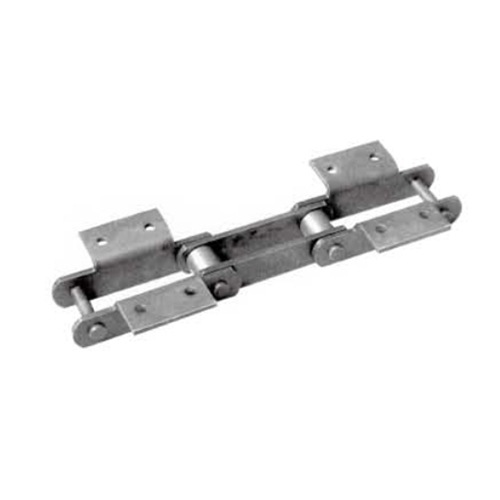

Cement mill | Attachment sidebar elevator chain
|
The Buried Scraper Chain is suitable for conveyor device used in bulk materials such as cement, powder, grain powder, sand and coal in powder, pellet or small lump styles. |
Three important construction features include the following:
1. Superior wear resistance of pins and bushings which reduces chain elongation
2 High abrasive and fatique resistance.
3. Easy connecting and disconnecting. This is verv important because of the limited space in the elevator housing. Chain must be easy to handle.

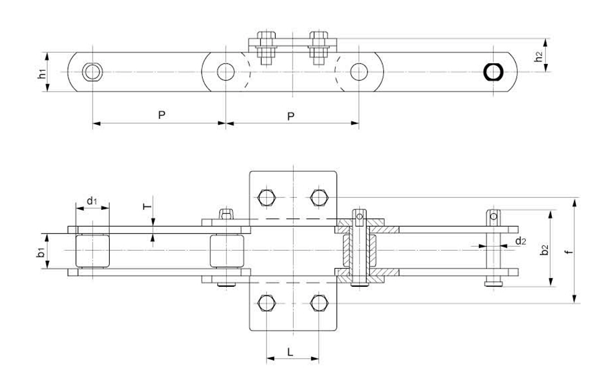

Diameter Data
| Chain
No. |
Pitch
P mm |
Inner Width of Inner Link b1(min) mm | Diameter of Roller d1(max) mm | Height of Sidebar h1 mm | Thickness of Sidebar T
mm |
Length of Pin b2 mm | Diameter of Pin d2 mm | Dimensions of Attachment | Tensile Strength Q(min) KN | ||
| L
mm |
f
mm |
h2
mm |
|||||||||
| DT-10 | 100.0 | 20.5 | 44 | 26 | 4 | 42 | 9.54 | 40 | 69 | 25 | 82.0 |
| DT-15A | 101.6 | 15.7 | 38.1 | 26 | 4 | 37.1 | 9.54 | 40 | 63.5 | 22.3 | 82.0 |
| DT-15B | 101.6 | 31 | 44.45 | 38 | 7.9 | 75.5 | 15.88 | 40 | 110 | 35 | 140.0 |
| DT-50 | 160.0 | 33.7 | 38.0 | 50 | 8 | 82.5 | 15.88 | 60 | 130 | 50 | 240.0 |
| DT-35 | 160.0 | 36 | 37.5 | 40 | 6 | 73.0 | 15.88 | 60 | 130 | 35 | 180.0 |
| DT-30D | 152.4 | 37 | 38.1 | 45 | 8 | 86.6 | 16.0 | 60 | 120 | 37.5 | 224.0 |
| DT-30A | 152.4 | 40 | 38.1 | 45 | 8 | 89.6 | 16.0 | 60 | 120 | 37.5 | 224.0 |
| DT-150 | 200.0 | 57.6 | 48.5 | 75 | 10 | 126 | 22.2 | 80 | 160 | 40 | 400.0 |
| DT-200 | 250.0 | 67.4 | 63.5 | 90 | 12 | 146 | 31.25 | 120 | 200 | 75 | 580.0 |
