Center Pivot Irrigation Sprinkler Gearbox – Replacement of Valley, UMC, Zimmatic Gearbox
The center pivot irrigation gearbox is typically located near the center pivot point of the system and converts the power from a motor or engine into the rotational energy needed to move the irrigation system. It is designed to withstand the continuous use and stresses placed on it by the weight of the water and the movement of the system.
Center Pivot Irrigation Sprinkler Gearbox – Replacement of Valley, UMC, Zimmatic Gearbox

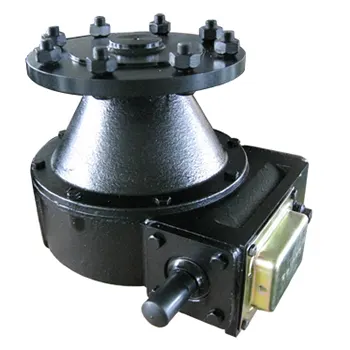

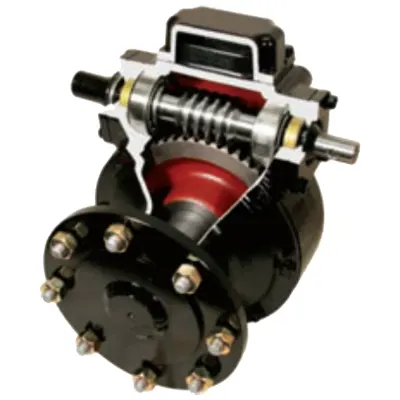

A center pivot irrigation gearbox is a key component (Replacement of Valley Zimmatic Gearbox)in the operation of pivot irrigation systems, which are commonly used in agriculture to efficiently water crops. Designed for longer spans, larger wheels, and heavier towers. This irrigation pivot gearbox is a standard ultimate-duty gearbox that is capable of handling nearly any field condition. This irrigation gearbox allows for operating in conditions where wheel ruts may exist, soil can be heavy, and terrain is uneven. The gearbox features a 2.25-inch output shaft with larger input bearings capable of handling more input load. The center pivot gearbox also features cartridge input and output seals. It is designed to support longer spans, larger wheels, and heavier towers for use on center pivots and lateral move/ linear irrigation systems.
We are an industry leader in replacement parts for Center Pivot Irrigation Systems and have the expertise to help you find exactly the center pivot irrigation gearboxes you are looking for. Our gearboxes can be the replacement of Valley, UMC, Zimmatic Pivot Gearbox.
Features of Center Pivot Gearbox
|
|
|
|

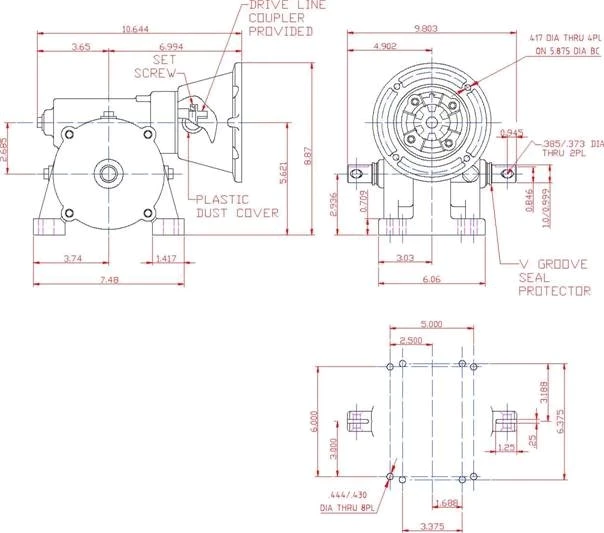

Specifications of Center Pivot Irrigation Gearbox
Replacement of Valley Zimmatic Gearbox
|
Input speed
|
<1500r/min
|
|
Body material
|
Cast iron
|
|
Input style
|
solid shaft
|
|
Output style
|
Hub connecting flange
|
|
Other
characteristics |
irrigate machine gearbox
|
|
Shaft orientation
|
90 degrees vertically
|
|
Gear type
|
Worm gearbox
|
|
Fixed way
|
flange
|
|
Ratio
|
50:1
|
|
Out Torque
|
Standard
|
|
Other parameters
|
Can replace UMC, DURST, ZIMMATIC, and Valley gearbox
|
How to Replace the Old Center Pivot Gearbox?
Replacing the old center pivot gearbox requires certain mechanical and electrical skills, as well as appropriate tools. The following are the basic steps to replace the old center pivot gearbox:
- 1. First, turn off all power and water sources of the system and stop the irrigation system.
- 2. To remove the old gearbox, it is usually necessary to remove the wheel, shaft, and other drive parts. At the same time, attention should be paid to preventing water from gushing out, and the relevant pipelines should be blocked.
- 3. Use proper tools to disassemble the old gearbox, disassemble and retain all spare parts for future repair or replacement.
- 4. Install a new gearbox, which includes reinstalling wheels, shafts and other drive components. During installation, ensure that the seals are intact and firmly installed.
- 5. Calibrate and test the new gearbox to ensure it works properly. The system power can be turned on, and the central pivot system can be operated through remote control to ensure the correct operation of the new gearbox and coordination with other components of the system.
- 6. Finally, check all pipelines of the system to ensure that they are correctly reassembled and free of leakage.
Please note that these steps are only the basic idea of replacing the central pivot gearbox. The specific steps and requirements can vary according to the equipment model, working manufacturer, production date, and other factors. It is recommended to read relevant documents, manuals and guides thoroughly before operation, or seek professional maintenance and installation services. In addition, in order to ensure the health of the earth, it is necessary to follow the correct method of handling and recycling old equipment.

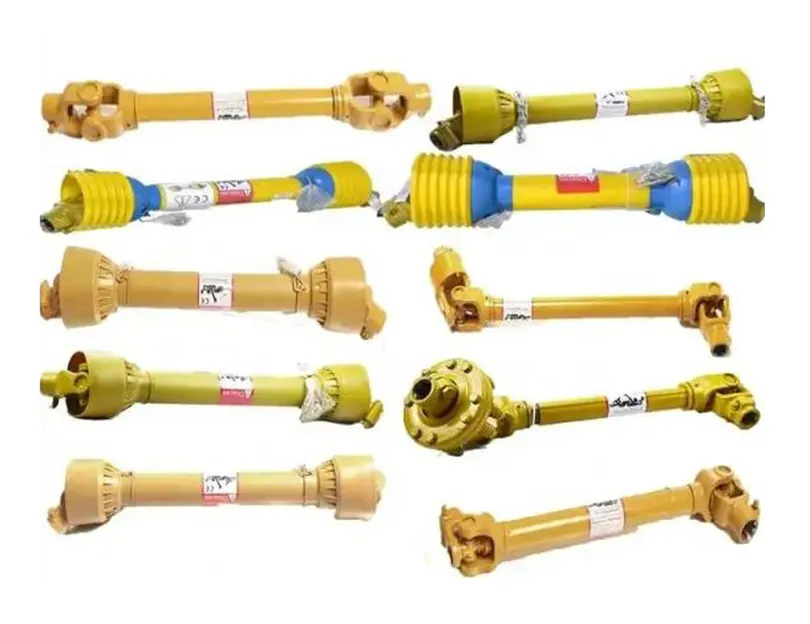

PTO Shafts for Center Pivot Irrigation Gearbox
PTO shafts, or power take-off shafts, are often used to transfer power from a tractor or engine to the center pivot irrigation gearbox. The PTO shaft connects to the tractor or engine on one end and the gearbox on the other end, providing the rotational energy needed to turn the irrigation system.
When selecting a PTO shaft for a center pivot irrigation system, it is important to consider several factors, including the length and diameter of the shaft, the amount of torque required to rotate the system, and the rotational speed needed to achieve the desired water distribution.
The length of the PTO shaft is critical and should be chosen to provide the correct amount of clearance between the tractor or engine and the irrigation system. The diameter of the shaft should also be appropriate for the amount of torque required to rotate the system.
It is important to ensure that the PTO shaft is properly lubricated and maintained to prevent damage or failure, which can lead to downtime and increased costs. Regular inspections of the PTO shaft and its components, such as the universal joints and yokes, are recommended to identify any signs of wear or damage and address them before they become larger issues.
As a professional agricultural machinery parts supplier, we also offer a wide range of PTO shafts for sale in addition to center pivot irrigation gearboxes. Contact us now to get more info!
