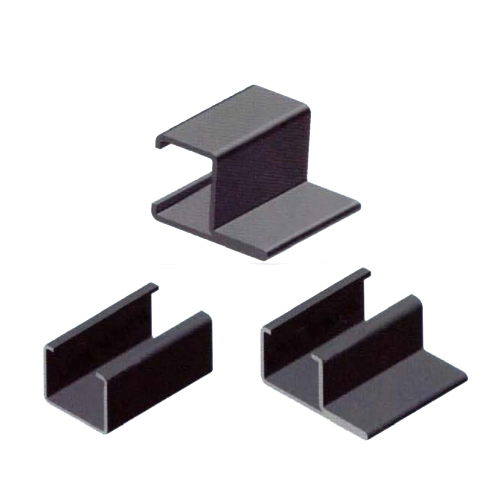

Chain guide C C15V C17V C14H C16H
Chain guide C Series

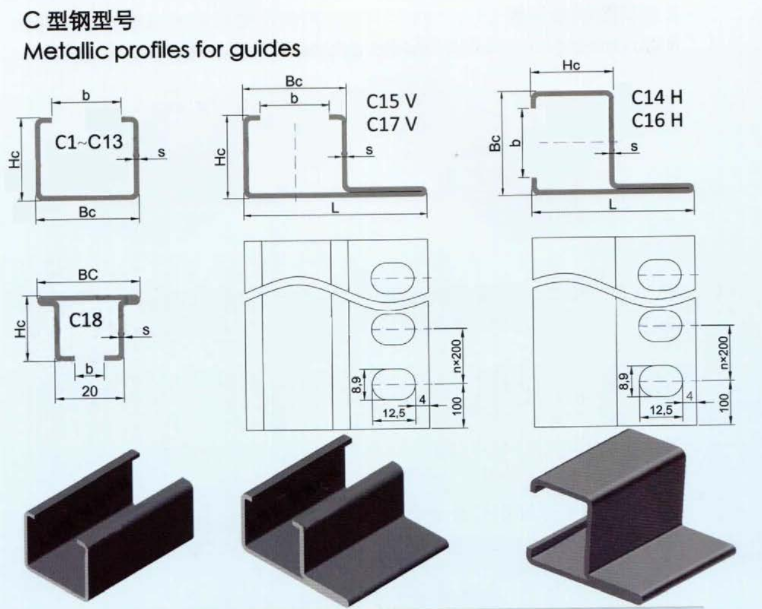

C profile | Bc | Hc | B | s | l |
C1 | 24 | 5.2 | 17.5 | 1 | |
C3 | 20 | 10 | 10 | 1.5 | |
C4 | 50 | 10 | 35 | 2 | |
C5 | 28 | 12 | 14 | 2 | |
C6 | 80 | 10 | 65 | 2 | |
C7 | 28 | 16 | 14 | 2.5 | |
C9 | 38 | 18 | 22 | 2.5 | |
C10 | 30 | 24 | 20 | 1.5 | |
C11 | 45 | 40 | 31 | 2 | |
C12 | 60 | 20 | 36 | 2.5 | |
C13 | 65 | 55 | 40 | 3 | |
C14H | 31 | 25 | 20 | 2 | 47 |
C15V | 31 | 25 20 | 2 | 53 | |
C16H | 45 | 40 | 31 | 2 | 62 |
C17V | 45 | 40 | 31 | 2 | 67 |
C18 | 29.8 | 19 | 8.5 | 1.5 |
