Chain guide R CR CRG CRO RR CRR

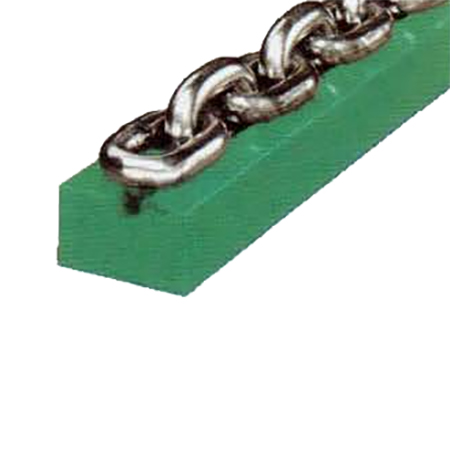

R guides for round link chains as per DIN 766/764

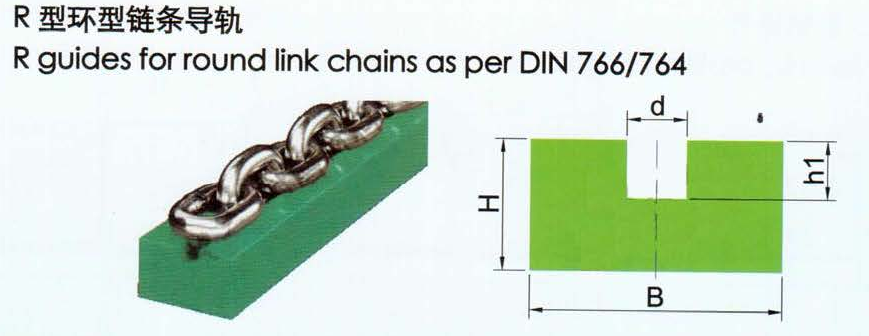

R guides for round link chains as per DIN 766/764 Specifications
Type | Nominal thickness d | B | H | h1 |
R6 | 6 | 30 | 15 | 7 |
R8 | 8 | 38 | 20 | 9 |
R10 | 10 | 45 | 25 | 11 |
R13 | 13 | 55 | 30 | 15 |
CR guides with metallic profile for round lin chains

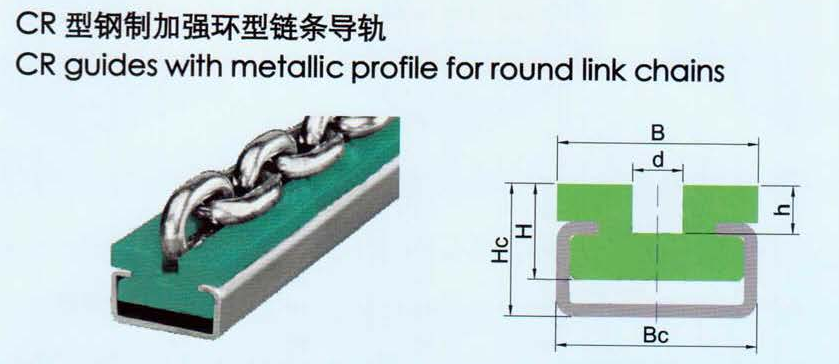

Type | Nominal thickness d | C profile | Bc | Hc | B | H |
CR6 | 6 | C5 | 28 18 | 18 | 30 | 14 |
CR8 | 8 | C9 | 38 | 25 | 38 | 18 |
CR10 | 10 | C9 | 38 | 28 | 45 | 18 |
CR13 | 13 | C12 | 60 | 33 | 60 | 25 |

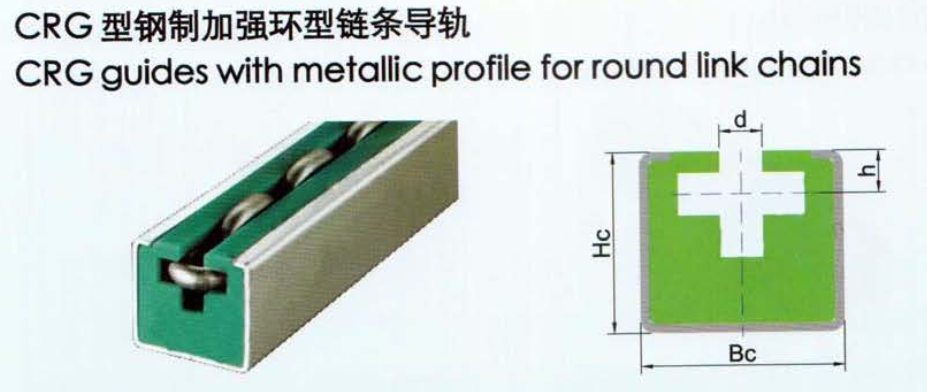

Type | Nominal thickness d | C profile | Bc | Hc | h |
CRG6 | 6 | C11 | 45 40 8 | 40 | 8 |
CRG8 | 8 | C11 | 45 | 40 | 9.5 |
CRG10 | 10 | C13 | 65 | 55 | 14 |
CRG13 | 13 | C13 | 65 | 55 | 18 |

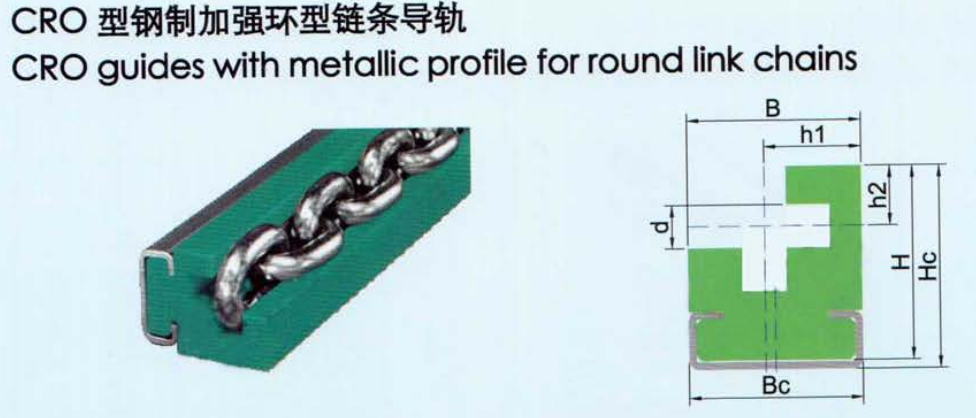

Type | Nominal thickness d | C profile | Bc | HC | B | H |
CRO6 | 6 | C3 | 20 | 34 | 27 | 32 |
CRO8 | 8 | C5 | 28 | 42 | 32 | 39 |
CRO10 | 10 | C9 | 38 | 56 | 42.5 | 53 |
CRO13 | 13 | C12 | 60 | 70 | 60 | 67 |
