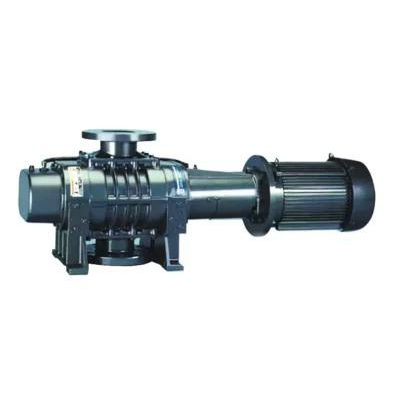

Chinese Manufacturer Vacuum KMBD Roots Pump Replacement of Kinney KMBD540 KMBD2000

Chinese Manufacturer Vacuum KMBD Roots Pump Replacement of Kinney KMBD540 KMBD2000

Perfectly Replace the Kinney Vacuum Pump

Our vacuum pump can perfectly replace the Kinney vacuum pump, the following is the corresponding model of Kinney

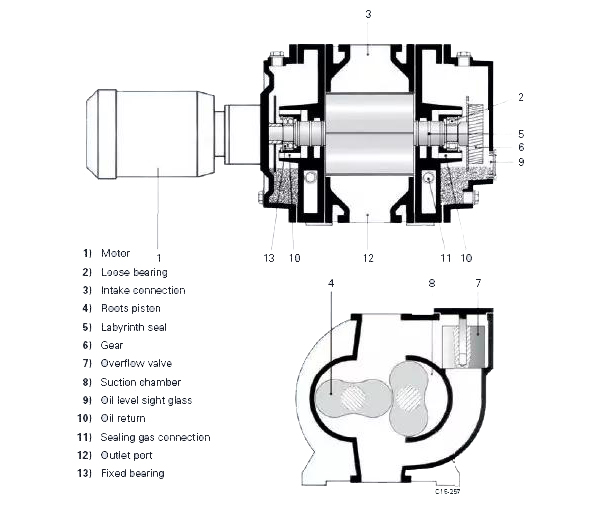

Operating Principle of Roots Pump

Roots pump with overflow valve (hereinafter referred to as roots pump) realizes the air extraction function through a pair of “8” shaped rotors that interact with each other and rotate synchronously and reversely. When the rotor and the pump body form a suction chamber, the two rotors are always sealed with each other. So as to ensure that the gas at the exhaust port does not flow back to the air inlet, so as to realize the function of air extraction.

The reverse synchronous rotation of the rotor is realized by a pair of gears installed on the rotor shaft. Because there is no friction in the pump chamber, the roots pump can run at a high speed of 1500 ~ 3000 revolutions per second without lubrication in the pump chamber. In addition, to keep the roots pump running smoothly at high speed, it is necessary to carry out a good dynamic balance on the rotor.

There is no direct contact between the rotors rotating at high speed and between the rotor and the pump body. And a certain clearance is maintained between the moving parts.
The roots pump with an overflow valve is equipped with a built-in overflow valve between the inlet and outlet. Its function is: when the pressure difference at the inlet and outlet reaches a certain value, the overflow valve will automatically open. And part of the gas at the outlet will flow back to the inlet through the opened overflow valve, which greatly reduces the operating load of roots pump and front-stage vacuum pump (hereinafter referred to as front stage pump) under high-pressure difference.

At the same time, because the opened overflow valve has a strong discharge function. It can ensure that the Roots pump with the overflow valve and the front stage pump can be started at the same time without overloading the roots pump and the front stage pump, and can improve the pumping speed of roots pump unit under high inlet pressure.

Main Uses of Roots Pump

A roots pump with an overflow valve is widely used in all aspects of vacuum acquisition. It extends the working range of oil-sealed mechanical vacuum pumps under low inlet pressure, has the characteristics of small volume and large pumping speed, and has a large pumping speed within the inlet pressure range of 1 ~ 100Pa.

It is especially suitable for vacuum systems requiring large pumping speed under low inlet pressure. Such as vacuum drying of power transformer, power capacitor, power transformer Vacuum impregnation treatment, etc.

If you select a suitable front-stage pump, a roots pump can also be widely used in the process of vacuum distillation, concentration, drying in food, and others.

Installation instructions for Roots pump

roots pump shall be installed in a dry, ventilated, and clean place

roots pump shall be installed horizontally, and the gap between the pump and the wall or other objects shall be kept at least 300mm. The oil window part of the pump shall leave space for easy observation of the oil level.

when connecting the power supply, pay attention to the rotation direction of the motor. The rotation direction of the motor shaft should be clockwise from the tail of the roots pump motor.Operation steps: turn on the three-phase power supply of the motor, jog the motor start button, and check whether the steering is correct. If the steering is opposite, replace any two of the three power connectors.

the pipeline connecting the roots pump and the pumped container shall be clean, dry, and leak-free. The pipeline aperture shall not be less than the inlet of the roots pump as far as possible, and the length should be short to reduce the pumping speed loss. There shall be no leakage at the pipeline connection.

if the extracted gas contains dust or particulate matter, a suitable air inlet filter shall be installed at the inlet of the pump to prevent dust or particulate matter from sucking into the pump chamber and damaging the roots pump and the front stage pump. (after the filter is installed, the pumping speed and limit pressure of the roots pump will be affected, and the degree of influence varies with the structural form of the filter).

Related Vacuum Pump Products

Comparison between Kenny’s model and ours
TWO-STAGE WATER-RING VACUUM PUMP
	KLRC100	LP40
	KLRC125	LP55
	KLRC200	LP75
	KLRC300	LP115
	KLRC525	LP200
SINGLE-STAGE ROTARY PISTON VACUUM PUMP
	KT150	PP70
	KT300	PP150
	KT150( there are differences from shape and oil channel design)	PP70B
ROOTS PUMP
	KMBD540	VP200
	KMBD2000	VP600

2BVA-Series-Liquid-Ring	2BEA-Series-Liquid-Vacu	Model W Reciprocating V	Model WLW Vertical oil-fr
Model-2S-Two-Stage-water	Model JZJPX(H) Roots pump	Model JZJPS Roots Pump	Model JZJLS Roots Pump
Model-XD-Single-Stage-Rota	Model 2XZ Direct-Connection	Model 2XZ-B Direct-Conn	Model-2X-Two-Stage-Rotar
Model-2X-5-Two-Stage_Rotary	Model ZJ/ZJP Roots Vacuum	Model X Single-Stage Rotary	Model-SZ-Single-Stage-Water

Vacuum Pump Supplier

Hangzhou Power-trans Transmission Co., Ltd. is a professional manufacturer in the field of Roots blowers, with more than 30 years. We have a complete set of equipment and technology in design, manufacturing, and after-sales service.

The technology research and Development Department of the company has more than 25 major technicians with college degrees.
The first self-sinking aeration hose in China develop quickly, filling the domestic gap in this field.

We have successfully developed a “porous rubber bubble diffuser aeration hose”, which can effectively improve the breeding density. Increase farmers’ income.

At the same time, our products can be widely used in river regulation, wastewater treatment, and other fields.
Main application fields of products: food machinery, pharmacy, refrigeration equipment, rubber machinery, solar photovoltaic, and other industries.

We sincerely hope that we can continuously improve our service and provide customers with first-class vacuum products. We are willing to cooperate with you for common development and create brilliance.
