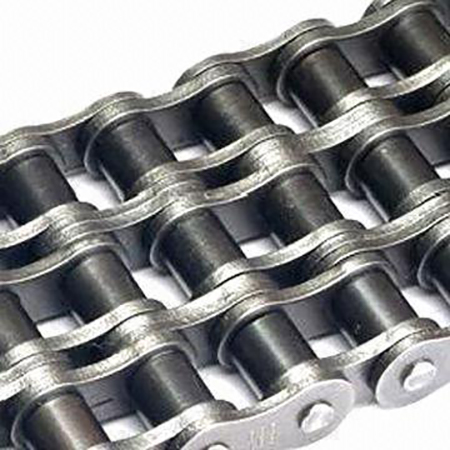

CHP series hollow pin chains

Description

Compliance with ISO 606 Standards:
- Description: ISO 606 is a standard developed by the International Organization for Standardization (ISO) that covers the dimensions, design, and performance of roller chains. Chains that comply with this standard ensure interchangeability and consistent quality.
- Applications: Standardized chains of this kind are suitable for various industrial applications, such as drive systems and conveyor systems.
Precision Stamping and Ball Drift Processes:
- Precision Stamping: Chains plates manufactured using precision stamping ensure high accuracy and smooth surfaces, which improves the chain’s operational stability and lifespan.
- Ball Drift: Ball drift is a process that applies pressure on the balls to improve the chain’s contact ratio. This helps reduce friction and enhance the overall performance and wear resistance of the chain.
Surface-Hardened Rollers:
- Characteristics: Surface-hardened rollers significantly enhance the chain’s wear resistance, allowing the rollers to maintain good performance over long periods of operation.
- Advantages: This hardening treatment not only extends the roller’s lifespan but also reduces maintenance frequency and costs.

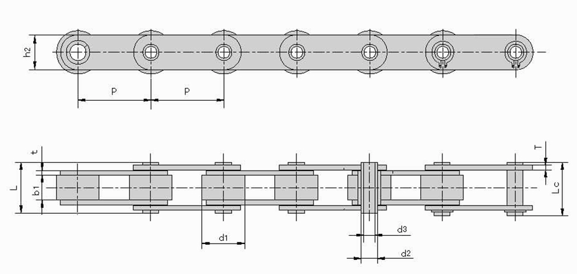

CHP series hollow pin chains Diameter Data

Chain No.	Pitch	Bush diameter	Width between inner plates	Pin diameter		Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
			b1 mh	d2 m ax	d3 m	m an	Lc m ax		max	mn	Q.0
	m	m	mm	m	mm	m	mm	mm	mm	kNbf	kN	kgm
02042HP	25.40	15.88	7.85	5.63	4.00	16.5	17.6	12.00	1.50	11.0/2500	12.6	0.78
C2052HP	31.75	19.05	9.53	7.22	5.12	20.5	21.8	15.00	2.03	20.4/4636	22.8	1.25
02062HP	38.10	22.23	12.70	8.31	6.00	25.8	26.8	17.00	2.42	24.0/5455	27.1	1.72
C2082HP	50.80	28.58	15.75	11.40	8.05	32.4	33.8	24.00	3.25	50.0/11364	52.0	2.82
C2042HHP	25.40	15.88	7.85	5.63	4.00	18.8	19.9	12.00	2.03	11.0/2500	13.2	0.95
C2052HPF1	3175	19.05	9.40	7.03	5.12	20.0	21.5	15.30	1.85	15.0/3409	17.3	1.21
C2052HPF3	51.75	19.05	9.55	7.02	5.13	20.1	21.6	15.09	203	19.6/4455	21.6	1.20
02052H-P	3175	19.05	9.53	7.22	5.12	22.1	23.4	15.00	2.42	20.4/4545	23.5	1.44
02062H-HP	58 10	22.23	12.70	831	6.00	292	30.2	17.00	325	24.0/5455	27.6	1.99
C2082HHP	50.80	28.58	15.75	11.40	8.05	55.7	37.0	24.00	400	50.0/11364	56.5	3.54
HP 40	40.00	22.00	8.75	9.00	6.00	23.0	242	18.00	2.50	27.0/4545	28.0	1.49
HB40F 1	40.00	22.00	9.00	9.00	6.00	25.0	24.5	18.00	2.50	20.0/4546	22.0	1.58
HB 41.4	41.40	25.40	15.00	13.80	10.50	35.5	37.0	32.00	4.00	45.0/10227	48.0	4.20
HP50	50.00	31.00	14.50	13.20	10.40	31.1	32.5	25.00	3.10	30.0/6818	34.2	3.29
HP50F4	50.00	31.00	15.00	13.20	10.20	36.5	38.0	25.00	4.00	40.0/9091	44.8	3.73
HB50	50.00	31.00	15.00	14.00	10.20	36.0	37.5	25.00	4.00	40.0/9091	43.2	3.98
HB50.8F8	50.80	32.00	20.00	19.10	12.40	44.6	46.4	40.00	5.00/4.00	100.0/22727	108.0	6.75
C1665HP	50.80	30.00	10.50	13.00	8.20	27.4	28.9	26.00	3.10	42.0/9545	48.2	2.72
HP50.8	50.80	26.00	15.88	20.00	14.30	41.0	42.2	38.10	4.80	100.0/22727	108.0	5.32
HB50.8F9	50.80	35.00	12.00	15.50	10.20	36.0	37.3	30.00	5.00	70.0/15909	77.0	4.92
HB50.8F20	50.80	58 10	15.20	14.28	950	36.6	372	26.40	4.00	40.0/8992	44.0	4.88
63HPF1	63.00	40.00	15.00	16.00	12.10	35.0	36.2	28.50	4.00	50.0/11364	56.7	4.20
DH4202HP	50.80	51.80	15.00	14.00	10.10	56.5	39.0	26.00	3.80	42.0/9545	51.6	3.75
DH4205HP	76.20	31.80	15.00	14.00	10.10	36.3	39.0	26.00	3.80	42.0/9545	47.1	5.01
