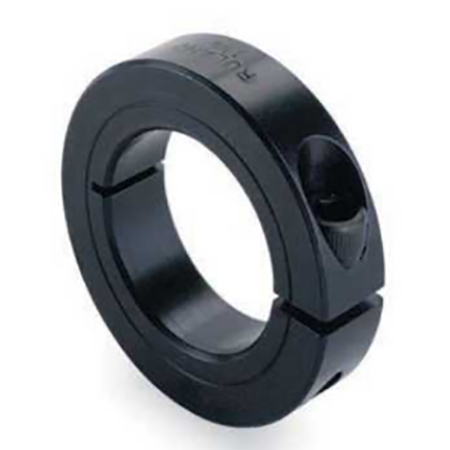

CL one piece clamp style collar
One-piece shaft collars wrap around the shaft for even distribution of clamping forces. This results in a tight fit and greater holding power, without the shaft damage caused by set screws. Clamp collars are easy to remove, indefinitely adjustable, and work well on virtually any shaft.
CL one piece clamp style collar
|
|
 |
Features
- Does not mar the shaft
- Superior fit, finish and holding power
- RoHS3 and REACH Compliant
- Width tolerance: +.003”/-.010”
- Bore tolerance: +.002”/+.0005”
- Temperature Range (Deg. F):
- Steel: -40° to 350°
- Zinc Plated Steel: -40° to 350°
- Aluminum: -40° to 225°
- Stainless: -40° to 350°
- Plastic: -10° to 185°
Diameter Data
PART NUMBER SPECIFICATIONS
| BLACK
OXIDE STEEL |
ZINC
PLATED STEEL |
STAINLESS ALUMINUM STEEL | 316
STAINLESS STEEL |
PLASTIC | BORE
B(in) |
OUTER
DIAM. OD (in) |
SCREW
LOCATION R(in) |
CLEARANCE DIAM. C
(in) MAX |
WIDTH
W(in) |
FORGED
CLAMP SCREW |
|
| CL-2-F | CL-2-FZ | CL-2-A | CL-2-SS | CL-2-ST | CL-2-P | 0.1250 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 |
| CL-3-F | CL-3-FZ | CL-3-A | CL-3-SS | CL-3-ST | CL-3-P | 0.1875 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 |
| CL-4-F | CL-4-FZ | CL-4-A | CL-4-SS | CL-4-ST | CL-4-P | 0.2500 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 |
| CL-5-F | CL-5-FZ | CL-5-A | CL-5-SS | CL-5-ST | CL-5-P | 0.3125 | 11/16 0.250 | 0.838 | 0.281 | #4-40 | |
| CL-6-F | CL-6-FZ | CL-6-A | CL-6-SS | CL-6-ST | CL-6-P | 0.3750 | 7/8 | 0.313 | 1.027 | 0.343 | #6-32 |
| CL-7-F | CL-7-FZ | CL-7-A | CL-7-SS | CL-7-ST | CL-7-P | 0.4375 | 15/16 0.344 | 1.080 | 0.343 | #6-32 | |
| CL-8-F | CL-8-FZ | CL-8-A | CL-8-SS | CL-8-ST | CL-8-P | 0.5000 | 1-1/8 | 0.406 | 1.281 | 0.406 | #8-32 |
| CL-9-F | CL-9-FZ | CL-9-A | CL-9-SS | CL-9-ST | CL-9-P | 0.5625 | 1-1/4 | 0.448 | 1.448 | 0.437 | #10-32 |
| CL-10-F | CL-10-FZ | CL-10-A | CL-10-SS | CL-10-ST | CL-10-P | 0.6250 | 1-5/16 | 0.479 | 1.500 | 0.437 | #10-32 |
| CL-11-F | CL-11-FZ | CL-11-A | CL-11-SS | CL-11-ST | CL-11-P | 0.6875 | 1-3/8 | 0.516 | 1.564 | 0.437 | #10-32 |
| CL-12-F | CL-12-FZ | CL-12-A | CL-12-SS | CL-12-ST | CL-12-P | 0.7500 | 1-1/2 | 0.545 | 1.808 | 0.500 | 1/4-28 |
| CL-13-F | CL-13-FZ | CL-13-A | CL-13-SS | CL-13-ST | CL-13-P | 0.8125 | 1-5/8 | 0.610 | 1.916 | 0.500 | 1/4-28 |
| CL-14-F | CL-14-FZ | CL-14-A | CL-14-SS | CL-14-ST | CL-14-P | 0.8750 | 1-5/8 | 0.610 | 1.916 | 0.500 | 1/4-28 |
| CL-15-F | CL-15-FZ | CL-15-A | CL-15-SS | CL-15-ST | CL-15-P | 0.9375 | 1-3/4 | 0.678 | 2.032 | 0.500 | 1/4-28 |
| CL-16-F | CL-16-FZ | CL-16-A | CL-16-SS | CL-16-ST | CL-16-P | 1.0000 | 1-3/4 | 0.678 | 2.032 | 0.500 | 1/4-28 |
| CL-17-F | CL-17-FZ | CL-17-A | CL-17-SS | CL-17-ST | CL-17-P | 1.0625 | 1-7/8 | 0.740 | 2.140 | 0.500 | 1/4-28 |
| CL-18-F | CL-18-FZ | CL-18-A | CL-18-SS | CL-18-ST | CL-18-P | 1.1250 | 1-7/8 | 0.740 | 2.140 | 0.500 | 1/4-28 |
| CL-19-F | CL-19-FZ | CL-19-A | CL-19-SS | CL-19-ST | CL-19-P | 1.1875 | 2-1/16 | 0.828 | 2.295 | 0.500 | 1/4-28 |
| CL-20-F | CL-20-FZ | CL-20-A | CL-20-SS | CL-20-ST | CL-20-P | 1.2500 | 2-1/16 | 0.828 | 2.295 | 0.500 | 1/4-28 |
| CL-21-F | CL-21-FZ | CL-21-A | CL-21-SS | CL-21-ST | CL-21-P | 1.3125 | 2-1/8 | 0.859 | 2.351 | 0.563 | 1/4-28 |
| CL-22-F | CL-22-FZ | CL-22-A | CL-22-SS | CL-22-ST | CL-22-P | 1.3750 | 2-1/4 | 0.922 | 2.465 | 0.563 | 1/4-28 |
| CL-23-F | CL-23-FZ | CL-23-A | CL-23-SS | CL-23-ST | CL-23-P | 1.4375 | 2-1/4 | 0.922 | 2.465 | 0.563 | 1/4-28 |
| CL-24-F | CL-24-FZ | CL-24-A | CL-24-SS | CL-24-ST | CL-24-P | 1.5000 | 2-3/8 | 0.984 | 2.578 | 0.563 | 1/4-28 |
| CL-25-F | CL-25-FZ | CL-25-A | CL-25-SS | CL-25-ST | 1.5625 | 2-3/8 | 0.984 | 2.578 | 0.563 | 1/4-28 | |
| CL-26-F | CL-26-FZ | CL-26-A | CL-26-SS | CL-26-ST | 1.6250 | 2-5/8 | 1.063 | 2.935 | 0.688 | 5/16-24 | |
| CL-27-F | CL-27-FZ | CL-27-A | CL-27-SS | CL-27-ST | 1.6875 | 2-3/4 | 1.125 | 3.046 | 0.688 | 5/16-24 | |
| CL-28-F | CL-28-FZ | CL-28-A | CL-28-SS | CL-28-ST | 1.7500 | 2-3/4 | 1.125 | 3.046 | 0.688 | 5/16-24 | |
| CL-29-F | CL-29-FZ | CL-29-A | CL-29-SS | CL-29-ST | 1.8125 | 2-7/8 | 1.188 | 3.160 | 0.688 | 5/16-24 | |
| CL-30-F | CL-30-FZ | CL-30-A | CL-30-SS | CL-30-ST | 1.8750 | 2-7/8 | 1.188 | 3.160 | 0.688 | 5/16-24 | |
| CL-31-F | CL-31-FZ | CL-31-A | CL-31-SS | CL-31-ST | 1.9375 | 3 | 1.250 | 3.273 | 0.688 | 5/16-24 | |
| CL-32-F | CL-32-FZ | CL-32-A | CL-32-SS | CL-32-ST | 2.0000 | 3 | 1.250 | 3.273 | 0.688 | 5/16-24 | |
| CL-33-F | CL-33-FZ | CL-33-A | CL-33-SS | CL-33-ST | 2.0625 | 3-1/8 | 1.297 | 3.360 | 0.750 | 5/16-24 | |
| CL-34-F | CL-34-FZ | CL-34-A | CL-34-SS | CL-34-ST | 2.1250 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| CL-35-F | CL-35-FZ | CL-35-A | CL-35-SS | CL-35-ST | 2.1875 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| CL-36-F | CL-36-FZ | CL-36-A | CL-36-SS | CL-36-ST | 2.2500 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| CL-37-F | CL-37-FZ | CL-37-A | CL-37-SS | CL-37-ST | 2.3125 | 3-3/8 | 1.422 | 3.591 | 0.750 | 5/16-24 | |
| CL-38-F | CL-38-FZ | CL-38-A | CL-38-SS | CL-38-ST | 2.3750 | 3-1/2 | 1.484 | 3.707 | 0.750 | 5/16-24 | |
| CL-39-F | CL-39-FZ | CL-39-A | CL-39-SS | CL-39-ST | 2.4375 | 3-1/2 | 1.484 | 3.707 | 0.750 | 5/16-24 | |
| CL-40-F | CL-40-FZ | CL-40-A | CL-40-SS | CL-40-ST | 2.5000 | 3-3/4 | 1.563 | 4.034 | 0.875 | 3/8-24 | |
| CL-41-F | CL-41-FZ | CL-41-A | CL-41-SS | CL-41-ST | 2.5625 | 3-7/8 | 1.625 | 4.148 | 0.875 | 3/8-24 | |
| CL-42-F | CL-42-FZ | CL-42-A | CL-42-SS | CL-42-ST | 2.6250 | 3-7/8 | 1.625 | 4.148 | 0.875 | 3/8-24 | |
| CL-43-F | CL-43-FZ | CL-43-A | CL-43-SS | CL-43-ST | 2.6875 | 4 | 1.688 | 4.265 | 0.875 | 3/8-24 | |
| CL-44-F | CL-44-FZ | CL-44-A | CL-44-SS | CL-44-ST | 2.7500 | 4 | 1.688 | 4.265 | 0.875 | 3/8-24 | |
| CL-45-F | CL-45-FZ | CL-45-A | CL-45-SS | CL-45-ST | 2.8125 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| CL-46-F | CL-46-FZ | CL-46-A | CL-46-SS | CL-46-ST | 2.8750 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| CL-47-F | CL-47-FZ | CL-47-A | CL-47-SS | CL-47-ST | 2.9375 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| CL-48-F | CL-48-FZ | CL-48-A | CL-48-SS | CL-48-ST | 3.0000 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| Note: Sizes CL-25 through CL-48 do not have backslot. | |||||||||||
